10.1” Fanless Panel PC with Intel® Celeron® Processor J6412

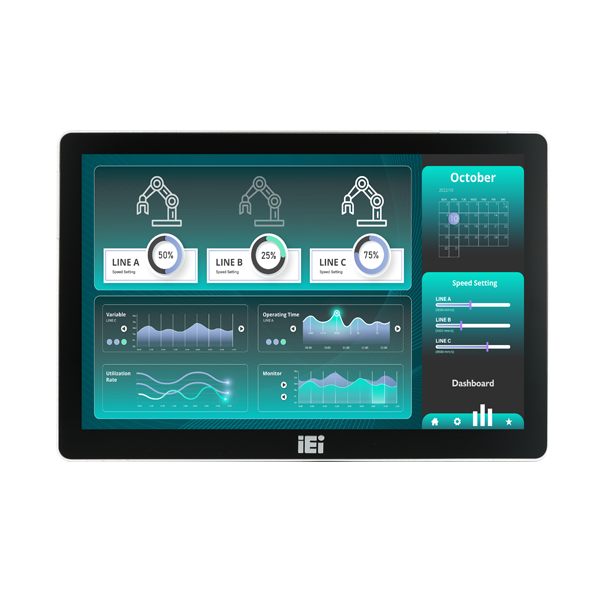

AFL4-W10-EHL Front
AFL4-W10-EHL Right
AFL4-W10-EHL Left
  • AFL4-W10-EHL Front
  • AFL4-W10-EHL Right
  • AFL4-W10-EHL Left
  • AFL4-W10-EHL IO
» Intel® Elkhart Lake Platform
» New narrow bezel design
» Anti-glare and Anti-UV PCAP
» Support Gloved and Wet Hand Operation
» Support WiFi 6E and Bluetooth® 5.2

Hardware Spec.

CPU Intel® Celeron® Processor J6412 1.5M Cache, up to 2.60 GHz / TDP 10W
On-board Memory on-board dual-channel 8GB LPDDR4x
Storage 1 x M.2 2242 M-key (PCIe Gen3 x1 or SATA)
Wireless 2T2R Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Support 2.4/5/6GHz ,Bluetooth v5.2
I/O Interface
Ethernet 2 x 2.5GbE LAN via Intel® I225V
Expansion 1 x M.2 M-key 2280 (PCIE Gen3 x2)
Audio Codec Realtek ALC 888S
Input 12V DC
Operating Temperature -10ºC ~ 50ºC
Safety & EMC CE, FCC Class A
Humidity 10% ~ 95%, non-condensing
Storage Temperature -20ºC ~ 60ºC
Physical Characteristics
Color Black+Silver
Mounting VESA 75, Wall, Stand and Arm
Dimensions (LxWxH) (mm) 243.56 x 166.20 x 40.65
Size 10.1” (16:10)
Resolution 1280 x 800
Brightness (cd/m2) 350 nits
Contrast Ratio 900:1
LCD Color 16.7M
Pixel Pitch (mm) 0.1695 x 0.1695
Viewing Angle (H-V) 170°/170°
Backlight MTBF 30,000 hours
Touch Screen Multi-point projected capacitive type
(anti-UV / anti-glare coating,support gloves)
Surface hardness: 7H
Touch Controller EETI 80 series
Other Features
Audio 1 x AMP 1.2W (internal speaker)
I/O Interface
I/O Interface 2 x RS-232 (by DB9)
2 x RS-232/422/485 (by DB9)
3 x USB 2.0
1 x HDMI (up to 3840*2160 @30Hz)
2 x LAN (Intel® I225V 2.5GbE controller)
1 x DC Input Jack
1 x Reset Button
1 x Power Switch
1 x AT/ATX switch
2 x USB 3.2 Gen2x1 (10Gb/s (Type A))
OS Support
OS Support Windows 10 IoT

Ordering Information

AFL4-W10-EHL-J1/8G-R10 10.1" 350cd/m² 1280x800 fanless Panel PC with Intel® Celeron® Processor J6412 on-board Processor ,TDP 10W, 8GB LPDDR4 on-board , 802.11a/b/g/n/ac/ax WiFi&Bluetooth®5.2 module, PCAP touch,R10

Package Contents

Package Content
  • 1 x AFL4-W10-EHL

  • 1 x Power Cord

  • 1 x Power Adapter

  • 1 x QIG
