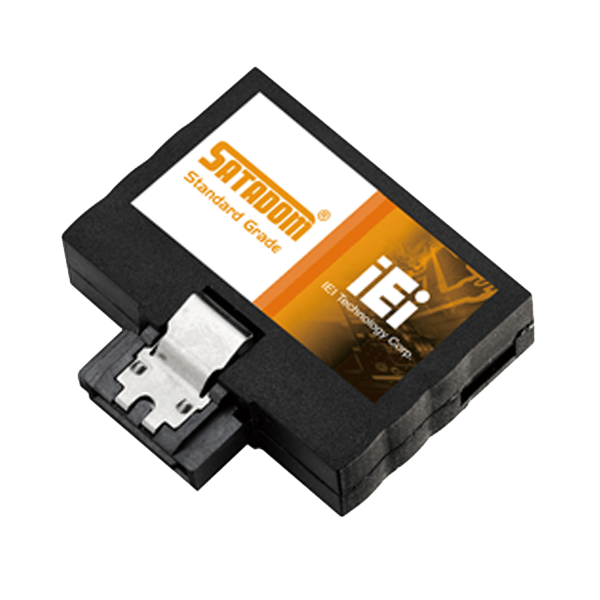

IFM-3010L

Industrial Flash Module Series(SATADOM)SLC

  • Overview

    Industrial Flash Module Series(SATADOM)SLC
  • Specifications

    • Hardware Spec.

      Spec Item Description
      ATA Security
      ATA Security Yes
      Capacity (GB)
      Capacity (GB) 1GB~32GB
      Dimensions
      Dimensions 32.5 x 29.5 x 8.0
      Flash Type
      Flash Type SLC
      Interface
      Interface SATA 6Gb/s
      Key Features
      Key Features 1. SATA 6Gb/s interface
      2. iSMART disk health monitoring
      3. Intelligent error recovery system
      4. Excellent data transfer speed
      5. Zero mechanical interference
      6. Anti-vibration mechanical design
      Max. Power Consumpation
      ConsumpationMax. Power Consumpation 0.65A (5V x 130mA )
      P/N
      STD(0°C~+70°C) IFM-3010IL-1GB
      IFM-3010IL-2GB
      IFM-3010IL-4GB
      IFM-3010IL-8GB
      IFM-3010IL-16GB
      IFM-3010IL-32GB
      WT(-40°C~+85°C) IFM-3010WL-1GB
      IFM-3010WL-2GB
      IFM-3010WL-4GB
      IFM-3010WL-8GB
      IFM-3010WL-16GB
      IFM-3010WL-32GB
      S.M.A.R.T
      S.M.A.R.T Yes
      Sequential R/W
      Sequential R/W 300/130
      Thermal Sensor
      Thermal Sensor Wide temperature model only
    • Ordering Info.

      Item No. Description
      IFM-3010IL-2GB Flash Disk;SATA Interface Disk on Module,High Speed, SLC, 0℃~70℃, R:24MB/s W:18MB/s, 2GB
      IFM-3010IL-4GB Flash Disk;SATA Interface Disk on Module,High Speed, SLC, 0℃~70℃, R:220MB/s W:50MB/s, 4GB
      IFM-3010IL-8GB Flash Disk;SATA Interface Disk on Module,High Speed, SLC, 0℃~70℃, R:250MB/s W:60MB/s, 8GB
      IFM-3010IL-32GB Flash Disk;SATA Interface Disk on Module,High Speed, SLC, 0℃~70℃, R:300MB/s W:130MB/s, 32GB
      IFM-3010WL-1GB Flash Disk;SATA Interface Disk on Module,High Speed, SLC, -40℃~85℃, R:23MB/s W:90MB/s, 1GB
      IFM-3010WL-16GB Flash Disk;SATA Interface Disk on Module,High Speed, SLC, -40℃~85℃, R:290MB/s W:120MB/s, 16GB
      IFM-3010WL-8GB Flash Disk;SATA Interface Disk on Module,High Speed, SLC, -40℃~85℃, R:250MB/s W:600MB/s, 8GB
      IFM-3010WL-32GB Flash Disk;SATA Interface Disk on Module,High Speed, SLC, -40℃~85℃, R:300MB/s W:130MB/s, 32GB
      IFM-3010IL-1GB Flash Disk;SATA Interface Disk on Module,High Speed, SLC, 0℃~70℃, R:23MB/s W:9MB/s, 1GB
      IFM-3010IL-16GB Flash Disk;SATA Interface Disk on Module,High Speed, SLC, 0℃~70℃, R:290MB/s W:120MB/s, 16GB
      IFM-3010WL-2GB Flash Disk;SATA Interface Disk on Module,High Speed, SLC, -40℃~85℃, R:24MB/s W:18MB/s, 2GB
      IFM-3010WL-4GB Flash Disk;SATA Interface Disk on Module,High Speed, SLC, -40℃~85℃, R:220MB/s W:50MB/s, 4GB
