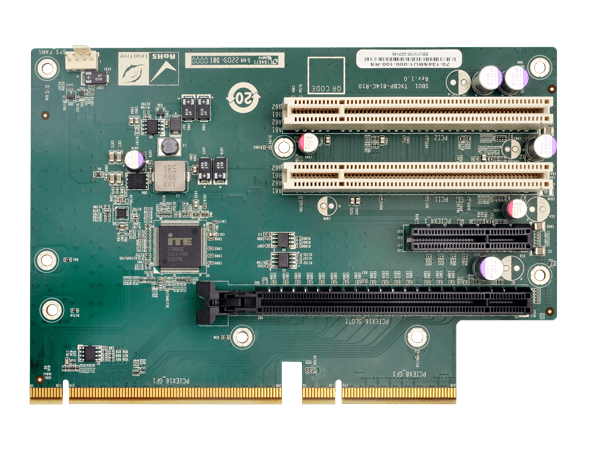

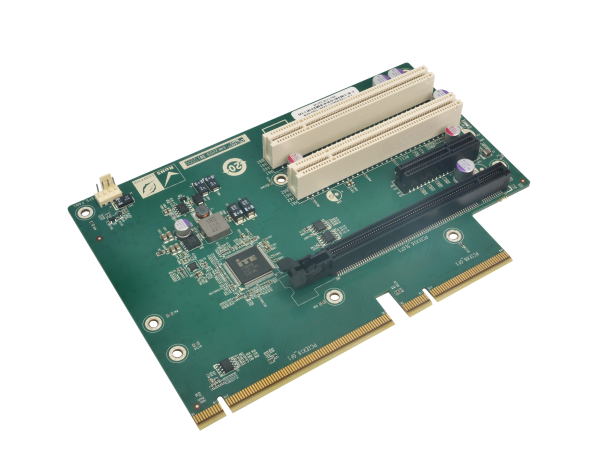

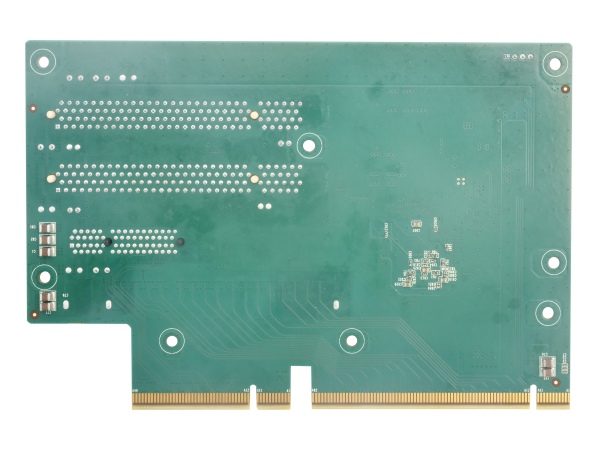

» 4-slot backplane for TANK-XM81 series expansion chassis
» One PCIe Gen 4 x16 & one PCIe Gen 3 x4 & two PCI Slot
» One system fan connectors
» Compatible chassis: TXC-XM81-4S-R10
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | TANK-XM81 series customization |
| System | |
| Cooling method / System Fan | 1 x 4-pin (1x4) |
| Physical Characteristics | |
| Mounting | TXC-XM81-4S |
| Dimensions (LxWxH) (mm) | 175.8 x 119 |
| I/O Interface | |
| Expansion | 1 x PCIe x16 : Gen 4 |
| 1 x PCIe x4 : Gen 3 | |
| 2 x PCI Slot | |
Ordering Information
| TXCBP-XM81-4C-R10 | Tank 81 Series Expansion Peripheral Card, backplane module, 4 Slot, 1xPCIe*16&2xPCI&1xPCIe*4 |
|---|
