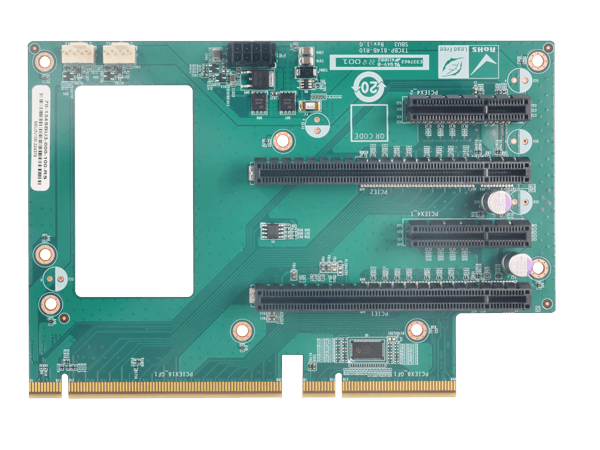

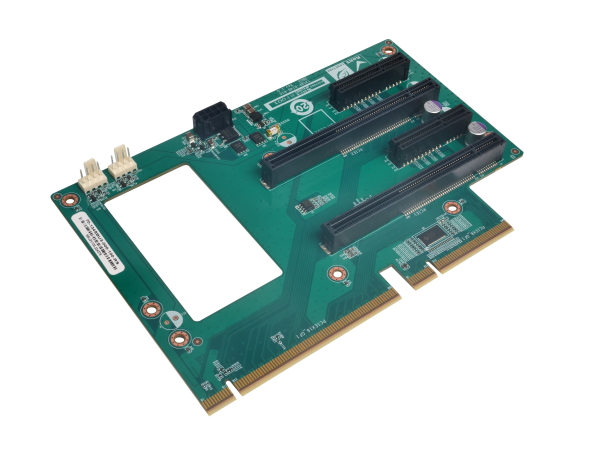

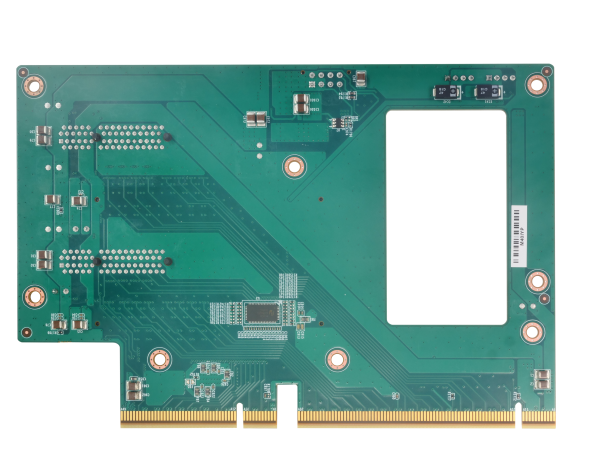

» 4-slot backplane for TANK-XM81 series expansion chassis
» One PCIe Gen 4 x16 (PCIe x8 signal) & one PCIe Gen 3 x16 (PCIe x8 signal) & two PCIe Gen 3 x4
» Two system fan connectors
» Compatible chassis: TXC-XM81-4S-R10
» Support an additional power supply board
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | TANK-XM81 series customization |
| System | |
| Cooling method / System Fan | 2 x 4-pin (1x4) |
| Physical Characteristics | |
| Mounting | TXC-XM81-4S |
| Dimensions (LxWxH) (mm) | 175.8 x 119 |
| I/O Interface | |
| Expansion | 2 x PCIe x16 : PCIe x8 signal (1 x PCIe Gen 4, 1 x PCIe Gen 3) |
| 2 x PCIe x4 : Gen 3 | |
| Power | |
| Power Supply | 1 x 8-pin (2x4) |
Ordering Information
| TXCBP-XM81-4B-R10 | Tank 81 Series Expansion Peripheral Card, backplane module, 4 Slot, 2xPCIe*8&2xPCIe*4 w/ power connector |
|---|
