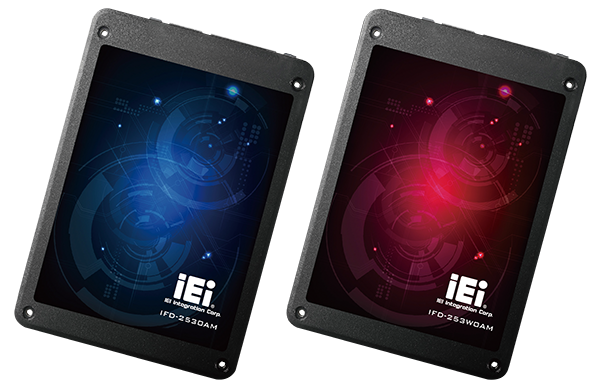

IFD-2530AM

Solid-State Drive-2.5” SATA 6Gb/s MLC

  • Overview

    Solid-State Drive-2.5” SATA 6Gb/s MLC
  • Specifications

    • Hardware Spec.

      Spec Item Description
      ATA Security
      ATA Security Yes
      Capacity (GB)
      Capacity (GB) 16GB~256GB
      Dimensions
      Dimensions 69.8 x 100.1 x 7.0
      Flash Type
      Flash Type MLC
      Interface
      Interface SATA 6Gb/s
      Key Features
      Key Features 1. 7mm height mechanical design
      2. Low power consumption
      3. Budget-friendly MLC-based solution
      Max. Power Consumpation
      ConsumpationMax. Power Consumpation 1.7W (5V x 335 mA)
      P/N
      STD(0°C~+70°C) IFD-2530AM-16GB-R10
      IFD-2530AM-32GB-R10
      IFD-2530AM-64GB-R10
      IFD-2530AM-128GB-R10
      IFD-2530AM-256GB-R10
      WT(-40°C~+85°C) IFD-2530AWM-16GB-R10
      IFD-2530AWM-32GB-R10
      IFD-2530AWM-64GB-R10
      IFD-2530AWM-128GB-R10
      IFD-2530AWM-256GB-R10
      S.M.A.R.T
      S.M.A.R.T Yes
      Sequential R/W
      Sequential R/W 525/180
      Thermal Sensor
      Thermal Sensor Wide temperature model only
    • Ordering Info.

      Item No. Description
      IFD-2530AM-16GB-R10 Flash Disk; 2.5'' SSD SATAIII Interface, MLC, 0℃~70℃, R:315MB/s W:170MB/s, 16GB
      IFD-2530AM-32GB-R10 Flash Disk; 2.5'' SSD SATAIII Interface, MLC, 0℃~70℃, R:515MB/s W:180MB/s, 32GB
      IFD-2530AM-128GB-R10 Flash Disk; 2.5'' SSD SATAIII Interface, MLC, 0℃~70℃, R:525MB/s W:175MB/s, 128GB
      IFD-2530AM-256GB-R10 Flash Disk; 2.5'' SSD SATAIII Interface, MLC, 0℃~70℃, R:520MB/s W:170MB/s, 256GB
      IFD-2530AWM-128GB-R10 Flash Disk; 2.5'' SSD SATAIII Interface, MLC, -40℃~85℃, R:525MB/s W:175MB/s, 128GB
      IFD-2530AWM-64GB-R10 Flash Disk; 2.5'' SSD SATAIII Interface, MLC, -40℃~85℃, R:515MB/s W:180MB/s, 64GB
      IFD-2530AWM-256GB-R10 Flash Disk; 2.5'' SSD SATAIII Interface, MLC, -40℃~85℃, R:520MB/s W:170MB/s, 256GB
      IFD-2530AM-64GB-R10 Flash Disk; 2.5'' SSD SATAIII Interface, MLC, 0℃~70℃, R:515MB/s W:180MB/s, 64GB
      IFD-2530AWM-16GB-R10 Flash Disk; 2.5'' SSD SATAIII Interface, MLC, -40℃~85℃, R:315MB/s W:170MB/s, 16GB
      IFD-2530AWM-32GB-R10 Flash Disk; 2.5'' SSD SATAIII Interface, MLC, -40℃~85℃, R:515MB/s W:180MB/s, 32GB
