• Overview

    ● Wide input range: 9-36 VDC
    ● AT or ATX mode on/off
    ● Output voltage protection
    ● Up to 90% efficiency
    ● RoHS compliant
    ● Compact size
  • Specifications

    • Hardware Spec.

      Spec Item Description
      General
      Dimensions 45 x 160
      Efficiency 90%
      Operating temperature -20ºC ~ 70ºC
      Storage temperature -25ºC ~ 75ºC
      Watt 120W
      Input
      Voltage 9 VDC to 36 VDC
      Output
      Voltage 12 V@4 A, 5 V@10 A, 3.3 V@8 A,
      -12 V@0.3 A & 5VSB@2 A
    • Ordering Info.

      Item No. Description

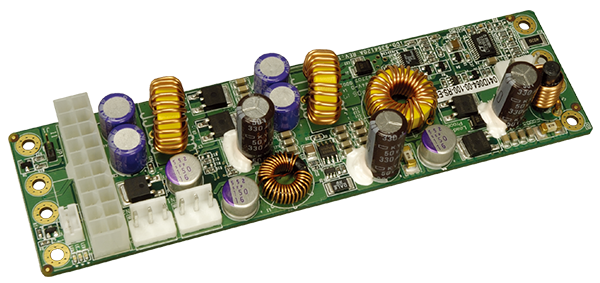

      IDD-9364120A-R11 120W DC/DC 9~36V input 12V/5V/3.3V/-12V/5VSB output,RoHS
