19800-003600-200-RS

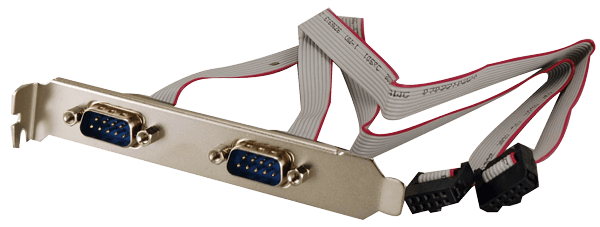

Serial port cable

Specifications

Hardware Spec.

General
Output Connector	Board side: 2 x 10-pin (2x5) connector (2.54mm) Device side: 2 x DE9M Serial port with I/O bracket

Dimensions
Dimensions	Length: 40 cm

Ordering Information

19800-003600-200-RS

CABLE MODULE;;RS-232 CABLE ;4;400MM;28AWG;(A)D-SUB 9P MALE,BLUE *2;(B)IDC 2*5P P=2.54 FEMALE IDITO-PROOF,REVERSE *2;;;;;;;;ONE PCS PKG W/ LABEL;19800-000113-RS SUBSTITUTE;;;Wins Precision;;RoHS

Download Specs.
