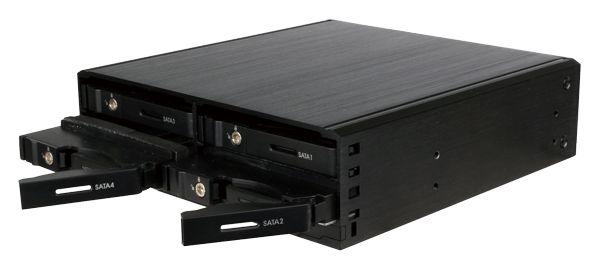

RHD-104SATA

5.25" Mobile Rack for 4 x 2.5" SATA HDD / SSD

• Fits into a 5.25" bay
• Connector:
front side:
4 x 2.5" SATA HDD / SSD bay
back side:
4 x SATA 7 pin female
1 x 4 pin power connector
• Suitable for 2.5" SATA HDD / SSD:
HDD height up to 12.5 mm
SATA HDD / SSD up to 6 Gb/s
supports 5 V HDD / SSD
• Data transfer rate up to 6 Gb/s
• Mobile rack with key lock for each bay
• 4 x LED indicator for power and access
• Hot Swap
• OS independent, no driver installation necessary

Hardware Spec.

General
Dimensions 149.6 x 146 x 42.1 (L x W x H) (mm)
Material
Material Full Metal
Weight
Weight 0.56 kg (Gross)
Data Transfer Rate
Data Transfer Rate SATA III 6Gbps
Drive Bay Space
Drive Bay Space 1 x 5.25" Device Bay for 4 x 2.5" Hard Drive
HDD Type
HDD Type 2.5" Hard Drive
Cooloing Fan
Cooloing Fan 4CM
Hot Swap
Hot Swap Yes
Keylock
Keylock Yes
Signal Out
Signal Out SATA III 7-Pin
Color
Color Black
Interface
Interface SATA III

Ordering Information

RHD-104SATA-R20 DRIVER CAGE;2,5'' SATA HDD, 7PIN SATA CONNECTOR*4;R20
