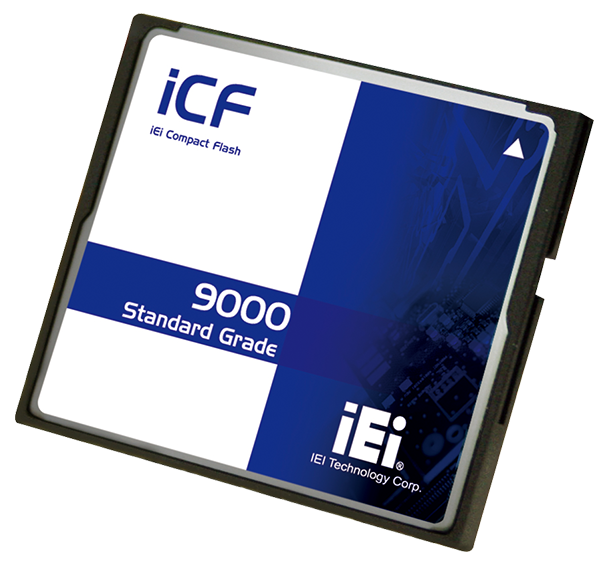

    CF Card Series SLC
  • Specifications

    • Hardware Spec.

      Spec Item Description
      ATA Security
      ATA Security Yes
      Capacity (GB)
      Capacity (GB) 4GB~32GB
      DC Power Input
      DC Power Input +3.3V-+5V single power supply operation
      Dimensions
      Dimensions 42.8 x 36.4 x 3.3
      Flash Type
      Flash Type SLC
      IDE Transfer Mode
      IDE Transfer Mode PIO mode 0-6
      MwDMA mode 0-4
      UltraDMA mode 0-7
      Max. Power Consumpation
      ConsumpationMax. Power Consumpation 0.75W (5V x 125mA@210mA)
      P/N
      STD(0°C~+70°C) ICF-9000CD-4GB
      ICF-9000CD-8GB
      ICF-9000CD-16GB
      ICF-9000CD-32GB
      WT(-40°C~+85°C) ICF-9000WD-4GB
      ICF-9000WD-8GB
      ICF-9000WD-16GB
      ICF-9000WD-32GB
      S.M.A.R.T
      S.M.A.R.T Yes
      Sequential R/W
      Sequential R/W 110/100 MB/sec
      Environment
      Operating Temperature 0°C~+70°C (Standard)/-40°C~+85°C (Industrial)
      Operating Vibration N/A
      Operating Shock 1500G/0.5ms
      Storage Temperature -55°C~+95°C
    • Ordering Info.

      Item No. Description
      ICF-9000CD-4GB ICF 50 PIN 4GB,Industrial CF card,iCF 9000,High Speed,SLC,0℃~70℃,R:80MB/s W:70MB/s
      ICF-9000CD-16GB ICF 50 PIN 16GB,Industrial CF card,iCF 9000 Four Channels,High Speed,SLC,0℃~70℃,R:100MB/s W:70MB/s
      ICF-9000CD-32GB ICF 50 PIN 32GB,Industrial CF card,iCF 9000 Four Channels,High Speed,SLC,0℃~70℃,R:110MB/s W:100MB/s
      ICF-9000WD-32GB ICF 50 PIN 32GB,Industrial CF card,iCF 9000 Four Channels,High Speed,SLC,-40℃~85℃,R:110MB/s W:100MB/s
      ICF-9000WD-16GB ICF 50 PIN 16GB,Industrial CF card,iCF 9000 Four Channels,High Speed,SLC,-40℃~85℃,R:100MB/s W:70MB/s
      ICF-9000CD-8GB ICF 50 PIN 8GB,Industrial CF card,iCF 9000,High Speed,SLC,0℃~70℃,R:80MB/s W:70MB/s
      ICF-9000WD-4GB ICF 50 PIN 4GB,Industrial CF card,iCF 9000,High Speed,SLC,-40℃~85℃,R:80MB/s W:70MB/s
      ICF-9000WD-8GB ICF 50 PIN 8GB,Industrial CF card,iCF 9000,High Speed,SLC,-40℃~85℃,R:80MB/s W:70MB/s
