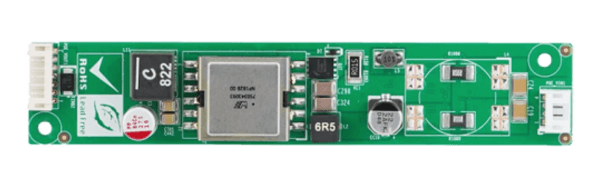

AFL3-PD-BT01-KIT01

IEEE802.3 bt POE PD module for AFL3-W10A-AL, AFL3-W12A-AL, and AFL3-W15A-AL series

IEEE802.3bt POE PD Module
75 Watt Output Power
12V DC output via 7pin header
Input voltage range 36V to 57V via 4pin header

Hardware Spec.

Input
Voltage 36V to 57V DC
Output
Voltage 12V DC
Dimensions
Dimensions 131.7mm X 25.02mm
Key Features
Key Features IEEE802.3bt POE PD Module
75 Watt Output Power
12V DC output via 7pin header
Input voltage range 36V to 57V via 4pin header

Ordering Information

AFL3-PD-BT01-KIT01-R10 PoE PD IEEE802.3 af/at/bt module kit , only for AFL3-xxx-AL optional (W10A/12A/W15A) , R10
