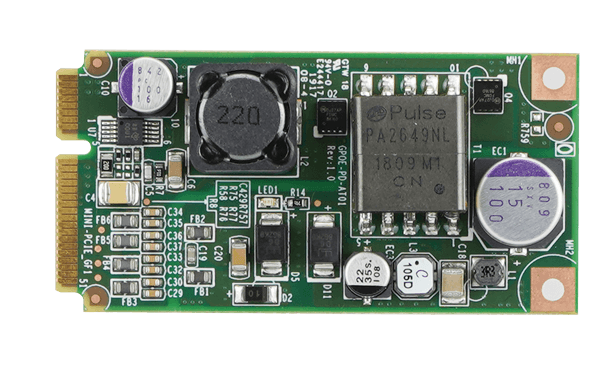

GPOE-PD-AT01

PoE+ (IEEE 802.3at) PD module , for AFL3-xxC-ULT5 series

PoE+ (IEEE 802.3at) PD module compliant with IEEE 802.3at & af
25 Watt Output Power
12V DC output
Input voltage range 36V to 57V
Tool-less and Easy install

Hardware Spec.

Input
Voltage 36V to 57V DC
Output
Voltage 12V DC
Dimensions
Dimensions 59.84mm X 30mm
Interface
Interface PCIe mini (IEI pin definition)
Key Features
Key Features PoE+ (IEEE 802.3at) PD module compliant with IEEE 802.3at & af
25 Watt Output Power
12V DC output
Input voltage range 36V to 57V
Tool-less and Easy install

Ordering Information

GPOE-PD-AT01-R10 PoE PD IEEE802.3 af/at with mini-PCIE from factor , support AFL3-W15C/W19C/W22C-ULT5 , R10
