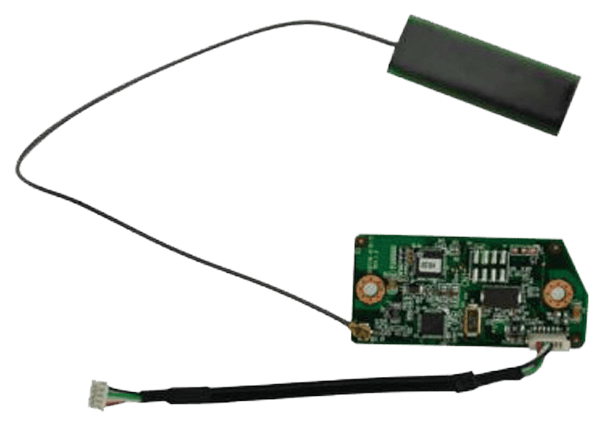

AFL3-MF-RFID-KIT

13.56MHz Mifare RFID Reader Kit

* Reading distance: up to 30mm
* Frequency: 13.56 MHz
* Support ISO14443A read, ISO15693 read/write ,Mifare DESFire EV1 8k
* USB interface
* Support RFID software development tool
* AFL3-MF-RFID-KIT01 for AFL3-W07A-BT
* AFL3-MF-RFID-KIT02 for AFL3-BT and AFL3-AL series, except to AFL3-W07A

Hardware Spec.

Environment
Operating Temperature 0°C ~ 50°C
Storage Temperature -10°C ~ 70°C
General
Dimensions 22mmX 50mm X7mm
Description
Description * AFL3-MF-RFID-KIT01 for AFL3-W07A-BT
* AFL3-MF-RFID-KIT02 for AFL3-BT and AFL3-AL series, except to AFL3-W07A
Interface
Interface USB 2.0 full speed with 3.3/5V logic levels
Key Features
Key Features * Reading distance: up to 30mm
* Frequency: 13.56 MHz
* Support ISO14443A read, ISO15693 read/write ,Mifare DESFire EV1 8k
* USB interface
* Support RFID software development tool

Ordering Information

AFL3-MF-RFID-KIT02-R10 AFL3 PPC Mifare RFID reader kit, for AFL3-BT / AFL3-AL / AFL3-ULT3 , R10
AFL3-MF-RFID-KIT01-R10 AFL3 PPC Mifare RFID reader kit, for AFL3-W07A-BT , R10
