POCi-W24C-ULT5

24” Medical Panel PC with 8th Generation Intel® mobile ULT Core™ i7/i5 processor

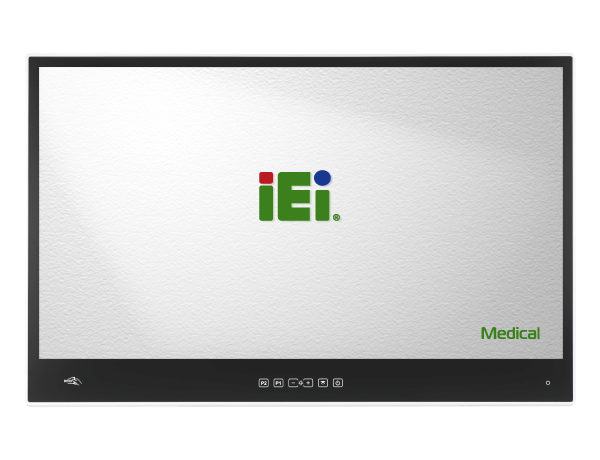

POCi-W24C-ULT5 Medical Panel PC

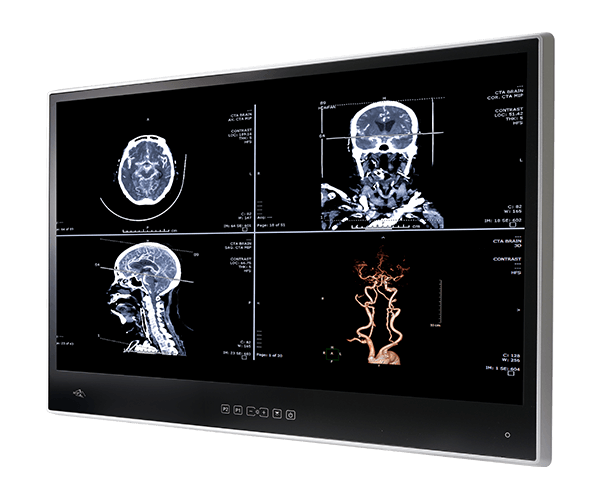

POCi-W24C-ULT5 Medical Panel PC

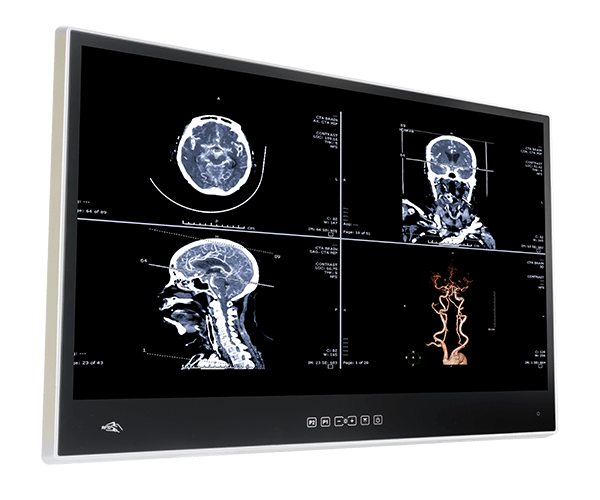

POCi-W24C-ULT5 Medical Panel PC
POCi-W24C-ULT5 Medical Panel PC IO
  • POCi-W24C-ULT5 Medical Panel PC
  • POCi-W24C-ULT5 Medical Panel PC
  • POCi-W24C-ULT5 Medical Panel PC
  • POCi-W24C-ULT5 Medical Panel PC IO
» 14nm 8th generation Intel® Whiskey Lake U platform
» Aluminum front bezel (IP66) & PC/ABS rear cover
» Chemical etching AG coating
» Modular PCIe x4 expansion slot
» Dual reading light
» FHD IPS panel with optional DICOM preset module

Modular Expansion Design

The highly expandable PCIe x4 slot makes the whole system more flexible and easily meet the individual needs from different applications. For instance, adopting an AI accelerator card to enhance computing power, adding an all-in-one capture card to connect with medical devices, integrating PoE injector card with webcam, or expanding the desired I/O card for multiple usage.

IEI Developed DICOM Module Preset

Perfect Fit in Various Medical Fields


Hardware Spec.

Form factor
Form factor
  • 14nm 8th generation Intel® Whiskey Lake U platform
  • Aluminum front bezel (IP66) & PC/ABS rear cover
  • Chemical etching AG coating
  • Modular PCIe x4 expansion slot
  • Dual reading light
  • FHD IPS panel with optional DICOM preset module
Display
LCD Size 23.8" (16:9)
Brightness(cd/m2) 350
Max Resolution 1920 (W) X 1080 (H)
Contrast Ratio 1000:1
Backlight MTBF(hrs) 30,000 (LED backlight)
System
Cooling method / System Fan fanless
CPU Intel® Core™ i7-8665UE (Whiskey Lake ULT platform)
Intel® Core™ i5-8365UE (Whiskey Lake ULT platform)
HDD 1 X 2.5” accessible SATA HDD/SSD bay
SSD 1X M.2 2242/60/80 M key (PCIe x4)
Communication
Bluetooth Bluetooth V5.0 (M.2 2230)
Wi-Fi IEEE 802.11 ax 2T2R module (Wi-Fi 6 Module)
I/O Interface
Ethernet 1 X Isolated Gigabit LAN (I219 supports Intel® vPro)
1 X Isolated Gigabit LAN (I211)
Audio 1 X Combo audio-out / mic-in
Expansion 1 X PCIe x4
3S3P Li-ion battery pack, 11.1V, 7800mAh (Optional)
150W, 85 ~264VAC, medical power supply (Optional)
USB 4 X USB 3.2 Gen 2 port
2 X USB 2.0 port (side)
RAM DDR4 SO-DIMM up to 64GB
Power
Input 19V DC input
Power adapter 150W medical power adapter
Power Supply 150W, 85 ~264VAC, medical power supply (Optional)
Environment
Operating Temperature 0°C ~ 40°C
Operating Vibration 1G
Operating Shock 5G peak acceleration (11ms duration)
Safety & EMC CE, FCC Class B Part18
EN 60601-1:2006/A1:2013 (Edition 3.1)
EN 60601-1-2: 2015 (Edition 4.0)
Humidity 10% ~ 95% (non-condensing)
Storage Temperature -20°C ~ 60°C
IP Level Front: IP66
Physical Characteristics
Color White
Mounting Wall, Stand and Arm VESA 75/100
Dimensions (LxWxH) (mm) 507.5 X 335.5 X 64.5
Net Weight 8.1 kg
Construction Front bezel: Aluminum die-casting
Rear cover: ABS+PC plastic with anti-bacterial material
Touch
Touch Screen Projected capacitive type with 10-point multi-touch
Chemical etching AG
Touch Controller EETI (80H84)
Other Features
Audio 2 X 3W speaker
TPM TPM-IN03-R10 (Optional)
OSD Function
OSD Function 1 x Power on/off
1 x Reading light on/off
1 x Backlight brightness up
1 x Backlight brightness down
1 x Clean mode on/off
1 x DICOM mode app on/off (optional)
I/O Interface
I/O Interface AT/ATX switch
Audio
DC Input Jack
HDMI
LAN
Line in
Mic
Power In
Power Switch
Reset Button
RS-232
Speaker
Touchscreen
USB 2.0
USB 3.2 Gen1x1
WIFI

Ordering Information

POCi-W24C-ULT5-i7/PC/4G-R10
* By order production
23.8” 250cd/m² FHD medical panel PC with 8th generation 14nm Intel® mobile Core™i7-8665UE (15W) 1.7GHz on-board processor (ULT),one 4GB DDR4 RAM,802.11 ax Wi-Fi module,PCAP touchscreen w/ AG coating,microphone,R10
POCi-W24C-ULT5-i7/PC/4G-BP-R10
* By order production
23.8” 250cd/m² FHD medical panel PC with 8th Gen 14nm Intel® mobile Core™i7-8665UE (15W) 1.7GHz on-board processor (ULT),one 4GB DDR4 RAM,802.11 ax Wi-Fi module,PCAP touchscreen w/ AG coating,microphone,w/ built-in Power,R10
POCi-W24C-ULT5-i7/PC/4G-B-R10
* By order production
23.8” 250cd/m² FHD medical panel PC with 8th generation 14nm Intel® mobile Core™i7-8665UE (15W) 1.7GHz on-board processor (ULT),one 4GB DDR4 RAM,802.11 ax Wi-Fi module,PCAP touchscreen w/ AG coating,microphone,w/ battery,R10
POCi-W24C-ULT5-i5/PC/4G-R10 23.8” 250cd/m² FHD medical panel PC with 8th generation 14nm Intel® mobile Core™i5-8365UE (15W) 1.6GHz on-board processor (ULT),one 4GB DDR4 RAM,802.11 ax Wi-Fi module,PCAP touchscreen w/ AG coating,microphone,R10
POCi-W24C-ULT5-i5/PC/4G-BP-R10
* By order production
23.8” 250cd/m² FHD medical panel PC with 8th Gen 14nm Intel® mobile Core™i5-8365UE (15W) 1.6GHz on-board processor (ULT),one 4GB DDR4 RAM,802.11 ax Wi-Fi module,PCAP touchscreen w/ AG coating,microphone,w/ built-in Power,R10
POCi-W24C-ULT5-i5/PC/4G-B-R10
* By order production
23.8” 250cd/m² FHD medical panel PC with 8th generation 14nm Intel® mobile Core™i5-8365UE (15W) 1.6GHz on-board processor (ULT),one 4GB DDR4 RAM,802.11 ax Wi-Fi module,PCAP touchscreen w/ AG coating,microphone,w/ battery,R10

Package Contents

Package Content
  • 1 X 150W medical power adapter

  • 1 X European power cords, 183 CM, C13
