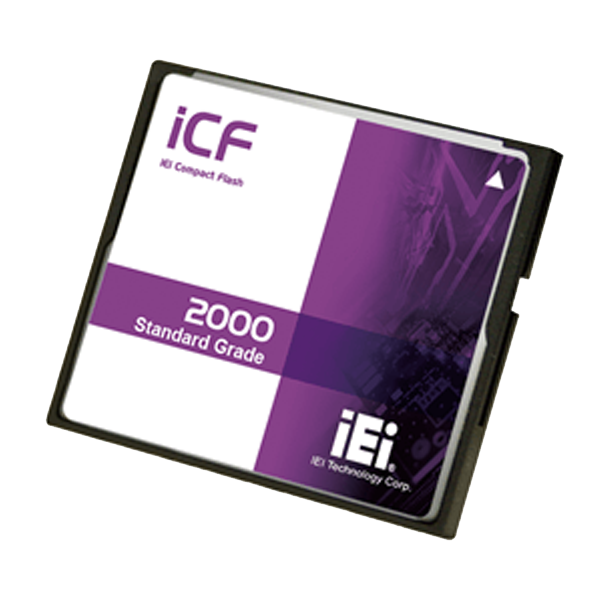

ICF-2000

CF Card Series SLC

CF Card Series SLC

Hardware Spec.

ATA Security
ATA Security Yes
Capacity (GB)
Capacity (GB) 512MB~8GB
DC Power Input
DC Power Input +3.3V-+5V single power supply operation
Dimensions
Dimensions 42.8 x 36.4 x 3.3
Flash Type
Flash Type SLC
IDE Transfer Mode
IDE Transfer Mode PIO mode 0-4
MwDMA mode 0-4
UltraDMA mode 0-4
Max. Power Consumpation
ConsumpationMax. Power Consumpation 0.75W (5V x 125mA@210mA)
P/N
STD(0°C~+70°C) ICF-2000IPD-512MB
ICF-2000IPD-1GB
ICF-2000IPD-2GB
ICF-2000IPD-4GB
ICF-2000IPD-8GB
WT(-40°C~+85°C) ICF-2000WPD-512MB
ICF-2000WPD-1GB
ICF-2000WPD-2GB
ICF-2000WPD-4GB
ICF-2000WPD-8GB
S.M.A.R.T
S.M.A.R.T Yes
Sequential R/W
Sequential R/W 40/30 MB/sec
Environment
Operating Temperature 0°C~+70°C (Standard)/-40°C~+85°C (Industrial)
Operating Vibration N/A
Operating Shock 1500G/0.5ms
Storage Temperature -55°C~+95°C

Ordering Information

ICF-2000WPS-512MB
ICF-2000WPD-8GB
ICF-2000WPD-4GB
ICF-2000WPD-2GB
ICF-2000WPD-1GB
ICF-2000IPS-512MB ICF 50 PIN 512MB,Toshiba Flash,Industrial CF card, iCF 2000 Single Channels,High Speed,SLC,0℃~70℃,R:20MB/s W:10MB/s
ICF-2000IPD-8GB ICF 50 PIN 8GB,Toshiba Flash,Industrial CF card, iCF 2000 Dual Channels,High Speed,SLC,0℃~70℃,R:40MB/s W:20MB/s
ICF-2000IPD-4GB ICF 50 PIN 4GB,Toshiba Flash,Industrial CF card, iCF 2000 Dual Channels,High Speed,SLC,0℃~70℃,R:40MB/s W:20MB/s
ICF-2000IPD-2GB ICF 50 PIN 2GB,Toshiba Flash,Industrial CF card, iCF 2000 Dual Channels,High Speed,SLC,0℃~70℃,R:40MB/s W:20MB/s
ICF-2000IPD-1GB
