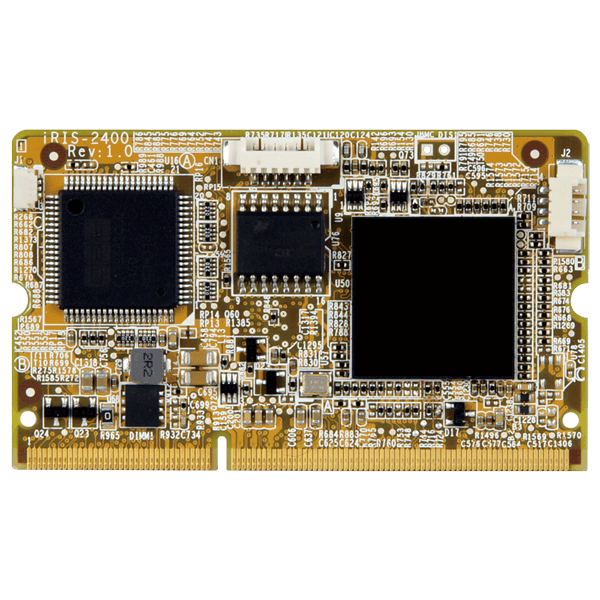

iRIS-2400

IPMI 2.0 adapter card with AST2400 BMC chip for DDR3 SO-DIMM socket interface

End of Life

End of Life Notice

* Effective Date: 2021/09/03

1. IPMI 2.0 based remote management
2. Out-of-Band management
3. Hardware health monitor
4. Secured remote KVM or virtual media
5. Remote power contro

Hardware Spec.

Physical Characteristics
Dimensions (LxWxH) (mm) 68 mm x 40 mm
Net Weight 12g
Storage
Storage Description:IPMI 2.0 adapter card with AST2400 BMC chip for DDR3 SO-DIMM
Other Features
iRIS IPMI 2.0 Based Management
• BMC stack with a full IPMI 2.0 implementation
• Customizable sensor management
OS Platform Independent
Hardware Health Monitor
• System/CPU temperature
• Fan speeds
• Voltage
• Chassis intrusion
• Power supply failed
• FRU (Field Replaceable Unit)
Event Log
• BIOS event
• Hardware health monitor event
• Sensor readings
Notifications
• Email alerts
• SNMP traps
LDAP Support
• Direct LDAP support from the device
• Open LDAP (Generic LDAP) supported
Media Redirection
• Simultaneous floppy, Hard disk or USB and CD or DVD redirection
• Efficient USB 2.0 based CD/DVD redirection with a typical speed of 20XCD
• Support for USB key
• Completely secured (Authenticated or Encrypted) remote KVM or virtual media
Remote Power Control
• Remote power control
• Keyboard, Video & Mouse (KVM) over IP (iRIS-2400 only)
• Serial over LAN (SOL)
User Management
• IPMI based user management
• Added security with SSL (HTTPS)
• Multiple user permission level
• Multiple user profiles
Web-based Configuration
• Full configuration using web UI
• Fail-safe firmware upgrade
• Multi-language support in Web interface with English as the currently supported language

Ordering Information

iRIS-2400-R10 IPMI 2.0 adapter card with AST2400 BMC chip for DDR3 SO-DIMM socket interface
