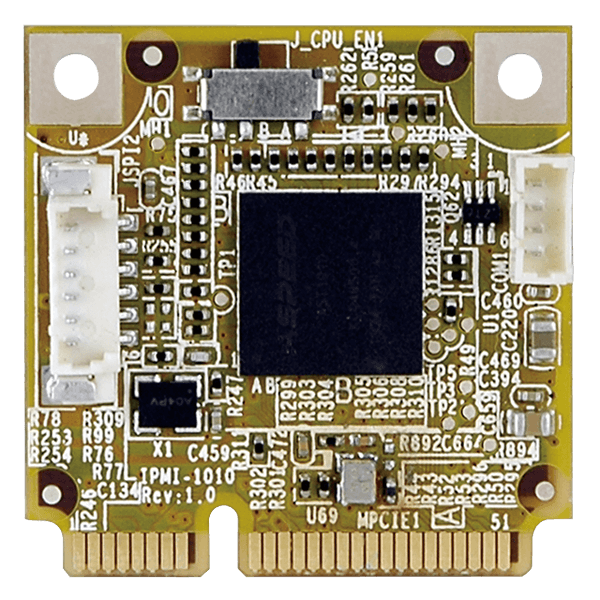

iRIS-1010

IPMI 2.0 adapter card with AST1010 BMC chip (W/O KVM over IP function) for mini PCIe socket interface

End of Life

End of Life Notice

* Effective Date: 2019/01/04

1. IPMI 2.0 based remote management
2. Out-of-Band management
3. Hardware health monitor
4. Remote power control

Hardware Spec.

Physical Characteristics
Dimensions (LxWxH) (mm) 30mm x 30mm
Net Weight 4g
Storage
Storage Description:IPMI 2.0 adapter card with AST2400 BMC chip for DDR3 SO-DIMM
Other Features
iRIS --- IPMI 2.0 Based Management ---
» BMC stack with a full IPMI 2.0 implementation
» Customizable sensor management
--- OS Platform Independent ---
--- Hardware Health Monitor ---
» System/CPU temperature
» Fan speeds
» Voltage
» Chassis intrusion
» Power supply failed
» FRU (Field Replaceable Unit)
--- Event Log ---
» BIOS event
» Hardware health monitor event
» Sensor readings
--- Notifications ---
» Email alerts
» SNMP traps
--- LDAP Support ---
» Direct LDAP support from the device
» Open LDAP (Generic LDAP) supported
--- Media Redirection ---
» Simultaneous floppy, Hard disk or USB and CD or DVD redirection
» Efficient USB 2.0 based CD/DVD redirection with a typical speed of 20XCD
» Support for USB key
» Completely secured (Authenticated or Encrypted) remote KVM or virtual media
--- Remote Power Control ---
» Remote power control
» Serial over LAN (SOL)
--- User Management ---
» IPMI based user management
» Added security with SSL (HTTPS)
» Multiple user permission level
» Multiple user profiles
--- Web-based Configuration ---
» Full configuration using web UI
» Fail-safe firmware upgrade
» Multi-language support in Web interface with English as the currently supported language

Ordering Information

iRIS-1010-R10 IPMI 2.0 adapter card with AST1010 BMC chip (W/O KVM over IP function) for mini PCIe socket interface
