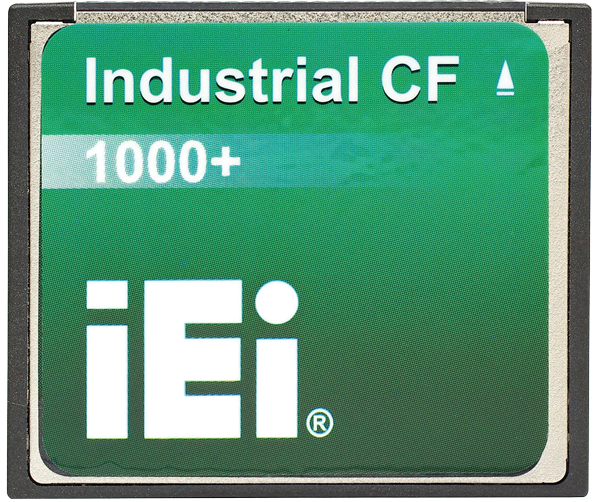

ICF-1000

CF Card Series SLC

CF Card Series SLC

Hardware Spec.

Environment
Operating Temperature 0°C~+70°C (Standard)/-40°C~+85°C (Industrial)
Operating Vibration N/A
Operating Shock 1500G/0.5ms
Storage Temperature -55°C~+95°C
Dimensions
Dimensions 42.8 x 36.4 x 3.3
Flash Type
Flash Type SLC
Capacity (GB)
Capacity (GB) 128MB~8GB
Sequential R/W
Sequential R/W 40/28 MB/sec
ATA Security
ATA Security Yes
S.M.A.R.T
S.M.A.R.T Yes
P/N
STD(0°C~+70°C) ICF-1000IPD-1GB-R20
ICF-1000IPD-2GB-R20
ICF-1000IPD-4GB-R20
ICF-1000IPD-8GB-R20
ICF-1000IA-128MB-R20
ICF-1000IA-256MB-R20
ICF-1000IA-512MB-R20
ICF-1000IA-1GB-R20
ICF-1000IA-2GB-R20
ICF-1000IA-4GB-R20
ICF-1000IA-8GB-R20
WT(-40°C~+85°C) ICF-1000WPD-1GB-R20
ICF-1000WPD-2GB-R20
ICF-1000WPD-4GB-R20
ICF-1000WPD-8GB-R20
ICF-1000WA-128MB-R20
ICF-1000WA-256MB-R20
ICF-1000WA-512MB-R20
ICF-1000WA-1GB-R20
ICF-1000WA-2GB-R20
ICF-1000WA-4GB-R20
ICF-1000WA-8GB-R20
Max. Power Consumpation
ConsumpationMax. Power Consumpation 0.75W (5V x 125mA@210mA)
IDE Transfer Mode
IDE Transfer Mode PIO mode 0-4
MwDMA mode 0-4
UltraDMA mode 0-4
DC Power Input
DC Power Input +3.3V-+5V single power supply operation

Ordering Information

ICF-1000WPD-8GB-R20 ICF 50 PIN 8GB,Toshiba Flash,Industrial CF card, iCF 1000 Dual Channels,High Speed,SLC,-40℃~85℃,R:40MB/s W:20MB/s
ICF-1000WPD-4GB-R20 ICF 50 PIN 4GB,Toshiba Flash,Industrial CF card, iCF 1000 Dual Channels,High Speed,SLC,-40℃~85℃,R:40MB/s W:20MB/s
ICF-1000WPD-2GB-R20 ICF 50 PIN 2GB,Toshiba Flash,Industrial CF card, iCF 1000 Dual Channels,High Speed,SLC,,-40℃~85℃,R:40MB/s W:20MB/s
ICF-1000WPD-1GB-R20 ICF 50 PIN 1GB,Toshiba Flash,Industrial CF card, iCF 1000 Dual Channels,High Speed,SLC,-40℃~85℃,R:40MB/s W:20MB/s
ICF-1000WA-8G-R20 Flash Disk; 50 pin CompactFlash,Toshiba Flash, Standard, SLC, -40℃~85℃, R:21MB/s W:11MB/s, 8GB
ICF-1000WA-512M-R20 Flash Disk; 50 pin CompactFlash,Toshiba Flash, Standard, SLC, -40℃~85℃, R:19MB/s W:7MB/s, 512MB
ICF-1000WA-4G-R20 Flash Disk; 50 pin CompactFlash,Toshiba Flash, Standard, SLC, -40℃~85℃, R:21MB/s W:13MB/s, 4GB
ICF-1000WA-2G-R20 Flash Disk; 50 pin CompactFlash,Toshiba Flash, Standard, SLC, -40℃~85℃, R:20MB/s W:11MB/s, 2GB
ICF-1000WA-256M-R20 Flash Disk; 50 pin CompactFlash,Toshiba Flash, Standard, SLC, -40℃~85℃, R:29MB/s W:8MB/s, 256MB
ICF-1000WA-1G-R20 Flash Disk; 50 pin CompactFlash,Toshiba Flash, Standard, SLC, -40℃~85℃, R:21MB/s W:12MB/s, 1GB
ICF-1000WA-128M-R20 Flash Disk; 50 pin CompactFlash,Toshiba Flash, Standard, SLC, -40℃~85℃, R:17MB/s W:4MB/s, 128MB
ICF-1000IPD-8GB-R20 ICF 50 PIN 8GB,Toshiba Flash,Industrial CF card, iCF 1000 Dual Channels,High Speed,SLC,0℃~70℃,R:40MB/s W:20MB/s
ICF-1000IPD-4GB-R20 ICF 50 PIN 4GB,Toshiba Flash,Industrial CF card, iCF 1000 Dual Channels,High Speed,SLC,0℃~70℃,R:40MB/s W:20MB/s
ICF-1000IPD-2GB-R20 ICF 50 PIN 2GB,Toshiba Flash,Industrial CF card, iCF 1000 Dual Channels,High Speed,SLC,0℃~70℃,R:40MB/s W:20MB/s
ICF-1000IPD-1GB-R20 ICF 50 PIN 1GB,Toshiba Flash,Industrial CF card, iCF 1000 Dual Channels,High Speed,SLC,0℃~70℃,R:40MB/s W:20MB/s
ICF-1000IA-8GB-R20 Flash Disk; 50 pin CompactFlash,Toshiba Flash, Standard, SLC, 0℃~70℃, R:21MB/s W:11MB/s, 8GB
ICF-1000IA-512MB-R20 Flash Disk; 50 pin CompactFlash,Toshiba Flash, Standard, SLC, 0℃~70℃, R:19MB/s W:7MB/s, 512MB
ICF-1000IA-4GB-R20 Flash Disk; 50 pin CompactFlash,Toshiba Flash, Standard, SLC, 0℃~70℃, R:21MB/s W:13MB/s, 4GB
ICF-1000IA-2GB-R20 Flash Disk; 50 pin CompactFlash,Toshiba Flash, Standard, SLC, 0℃~70℃, R:20MB/s W:11MB/s, 2GB
ICF-1000IA-256MB-R20 Flash Disk; 50 pin CompactFlash,Toshiba Flash, Standard, SLC, 0℃~70℃, R:29MB/s W:8MB/s, 256MB
ICF-1000IA-1GB-R20 Flash Disk; 50 pin CompactFlash,Toshiba Flash, Standard, SLC, 0℃~70℃, R:21MB/s W:12MB/s, 1GB
ICF-1000IA-128MB-R20 Flash Disk; 50 pin CompactFlash,Toshiba Flash, Standard, SLC, 0℃~70℃, R:17MB/s W:4MB/s, 128MB
