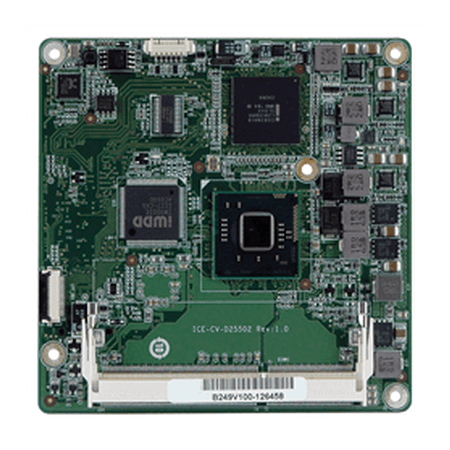

ICE-CV-D25502/N26002

COM Express Rev 2.0 Basic/Compact Type 2 Modules, Intel® Atom™ D2550 Processor

End of Life

End of Life Notice

* Effective Date: 2017/09/04

» Intel® Atom™ N2600/D2550 processors supported
» Intel® GMA integrates high-performance graphics and media processing
» Support DDR3 & DDR3L (1.35V) 1066/800 MHz, up to 4 GB
» 18/24-bit single-channel LVDS, analog CRT
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

Display Display Output
System CPU
Chipset Intel® NM10
Memory Max. Intel® Atom™ D2550 dual-core processor 1.86
GHz/512 x 2 L2 cache (system max. 4 GB)
Supports 1.35V DDR3L
Storage
I/O Interface Ethernet
Digital I/O
Expansion 3 x PCIe x1 signal to baseboard
Infrared Interface
I/O Interface
Power Power consumption
Environment Operating Temperature
Humidity 5% ~ 95%, non-condensing

Ordering Information

ICE-CV-D25502-R10 COM Express Rev 2.0 Compact Type 2 Module,IntelAtom D2550 Processor, DDR3, VGA/LVDS, GbE, SATAII, USB, PCI and Audio, RoHS
ICE-CV-N26002-R10 COM Express Rev 2.0 Compact Type 2 Module,IntelAtom N2600 Processor, DDR3, VGA/LVDS, GbE, SATAII, USB, PCI and Audio, RoHS
ICE-CV-N28002-R10 COM Express Rev 2.0 Compact Type 2 Module,IntelAtom N2800 Processor,DDR3, VGA/LVDS, GbE,SATAII, USB, PCI and Audio,RoHS
