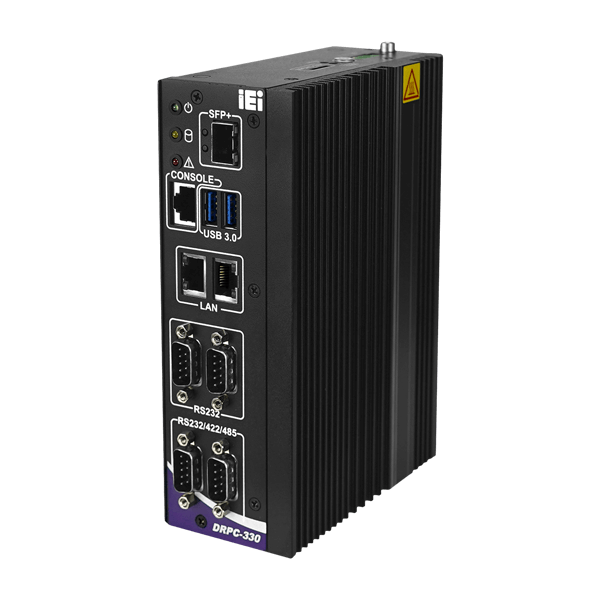

DRPC-330-A7K

Fanless DIN-Rail Embedded System with Marvell® ARMADA® 88F7040 Solution

  • Overview

    ● Marvell® ARMADA® 88F7040
    ● Supporting 10GbE SFP+
    ● Multiple COM Ports with isolation
    ● Multiple expansion slots
    ● Wide power input 9~36V
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form factor
      SBC Form Factor●CPU:
      Marvell® ARMADA® 88F7040
      ●Chipset:
      SoC
      ●System Memory:
      1 x On-board DDR4 2400 (4GB pre-installed)
      ●Power:
      Terminal block: 9 ~ 36V DC
      Consumption: 36V @ 0.86A (Marvell® ARMADA® 88F7040 CPU with 4GB 2400 MHz DDR4 on-board memory)
      ●Reliability:
      Operating Shock: Half-sine wave shock 5G, 11ms, 100 shocks per axis, IEC68-2-27
      Operating Vibration: MIL-STD-810G 514.6C-1 (SSD)
      Safety/EMC – CE/FCC

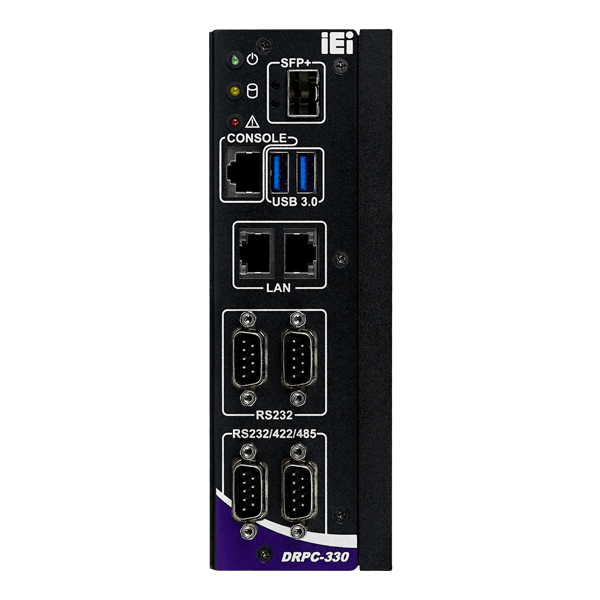

      I/O Interface
      I/O Ports●2 x USB 3.2 Gen1
      ●Ethernet:
      2 x RJ-45:
      2 x GbE by Marvell® 88E1512
      1 x SFP+:
      1 x 10GbE by Marvell® 88F7040
      ●COM Port:
      1 x Console (RJ45)
      2 x RS232/422/485 with AFC (DB9 with 2.5kV isolation)
      2 x RS232 (DB9 with 2.5kV isolation)
      ●TPM:
      1 x TPM 2.0 (optional)
      Expansion Slots
      Expansion Slots●M.2:
      1 x 2230 A-key (PCIe*1/USB 2.0)
      1 x 2280 B-key (PCIe*1)
      1 x 2242/80 B-key with SIM card slot (PCIe*1/USB 3.0/USB 2.0)
      System
      Cooling method / System FanFanless

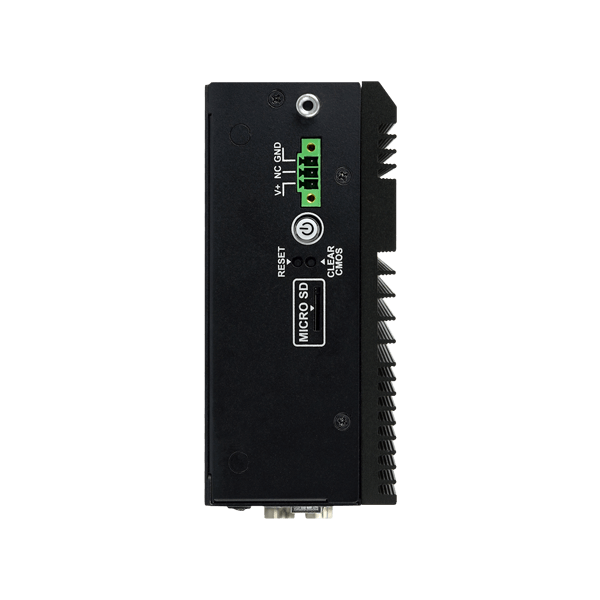

      Indicator&Buttons
      Buttons1 x Power button
      1 x Reset button
      1 x Clear CMOS
      Indicators1 x Power LED
      1 x HDD LED
      1 x Storage LED
      Physical Characteristics
      ConstructionExtruded aluminum alloy
      Color
      ColorBlack
      Dimensions
      Dimensions58.75 x 130 x 174 mm
      Weight
      Weight1.3KG / 1.45KG
      Environment
      Operating Temperature-20 ~ 60°C with air flow
      Humidity10 ~ 95% non condensing
    • Ordering Info.

      Item No. Description
      DRPC-330-A7K-A1/4G-R10Fanless system with Marvell Armada 7040 processor, 4GB DDR4 on-board memory, two 1GbE, one 10GbE via SFP+(without tranceiver), multiple M.2 expansions, COM, 9~36VDC, RoHS
    • Package Contents

      • 1 x Din-rail mounting kit

      • 1 x Screw kit
