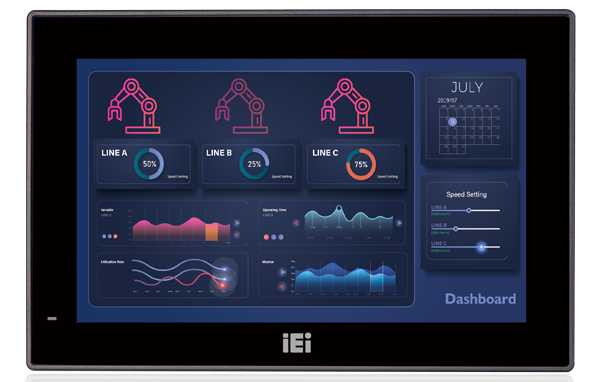

AFL3-W07A-AL2
» W7” light industrial interactive panel PC
» 12V DC input with lockable DC jack
» Selectable AT/ATX power mode
» Built-in speakers
» On board IEEE802.3 at standard
» IP65 compliant front panel
» Touch screen wth anti-UV / anti-glare coating
» HDMI™ output
» RS232/422/485 DB9 connector
Light Industrial Panel PC With PoE Solution
Light Industrial Panel PC With PoE Solution｜AFL3-W07A-AL
Hardware Feature
The Intel® Celeron® processor J3455 Apollo Lake, empowers real-time computing in digital surveillance, new in-vehicle experiences, advancements in industrial and office automation, new solutions for retail and medical, and more. These processors are based on the Goldmont architecture, utilizing Intel’s industry-leading 14 nm process technology.
IEEE 802.3 at Standard PoE PD Panel PC
PoE allows electronic devices to receive both power and data through one Ethernet plug-in, which means less cabling and less cost is required for factory automation.
Multi-touch Screen for Industry
IEI’s AFL3 series integrated with PCAP glass touch screen is extremely easy to clean and very resistant to scratches.
Notes: The linen gloves touch function for optional
-20°C ~ 50°C Fanless Design
Suitable for Semi-outdoor Environment
IP65-rated front panel for water and dust resistance
Anti-glare (AG) and UV-resistant Touch Screen
The screen features anti-glare and anti-UV coating, which can reduce the reflection rate from 8% to 1% and effectively slow the aging of the screen.
Integrated I/O
Hardware Spec.
| System | |
|---|---|
| Cooling method / System Fan | Fanless |
| CPU | Intel® Celeron N3350 (2M Cache, up to 2.4 GHz) TDP 6W |
| Storage | 1 x M.2 B+M key PCIe 2242 (USB/SATA signal) |
| Communication | |
| Bluetooth | Bluetooth V4.1 |
| Wireless | IEEE 802.11a/b/g/n/ac |
| I/O Interface | |
| Ethernet | 2x PCIe GbE by Intel® i211 controller |
| Audio | AMP 2W (internal speaker) |
| Audio Codec | ALC269 |
| RAM | one 204-pin 1866MHz DDR3L DIMMs support up to 8GB |
| Power | |
| Power Requirement | 12V , 3A |
| Environment | |
| Operating Temperature | -20ºC ~ 50ºC |
| Humidity | 10% to 95% (non-condensing) |
| Storage Temperature | -20°C~60°C |
| Weight | |
| Weight | 0.73kg/1.81kg |
| LCD | |
| Size | 7” |
| Resolution | 1024 x 600 (16:9) |
| Brightness (cd/m2) | 500 |
| Contrast Ratio | 700:1 |
| LCD Color | 16.7M |
| Pixel Pitch (mm) | 0.1506 (H) x 0.1432 (V) |
| Viewing Angle (H-V) | 150º / 145º |
| Backlight MTBF | 20000 (LED backlight) |
| Touch | |
| Touch Screen | Projected capacitive type with USB interface (anti-UV) |
| Touch Controller | EXC80H60 |
| I/O Interface | |
| I/O Interface | 1 x AT/ATX Switch |
| 1 x Clear CMOS | |
| 1 x RS-232 (RS232/422/485 (by DB9)) | |
| 1 x HDMI™ | |
| 1 x LAN (GbE) | |
| 1 x Power Switch | |
| 2 x USB 3.2 Gen1x1 (5Gb/s) | |
| 1 x Reset Button | |
| 1 x Power In | |
| OS Support | |
| OS Support | Microsoft Windows 10 / Windows 11, Linux |
Ordering Information
| AFL3-W07A-AL2-N1/P/PC/4G-R10 | 7" 500cd/m2 1024x600 fanless Panel PC with Intel® Celeron® Processor N3350 (6W) on-board Processor , w/COM , on-baord POE at, 1*4GB DDR3L , WiFi module, PCAP touch,R10 |
|---|
Package Contents
| Package Content |
|
|---|
