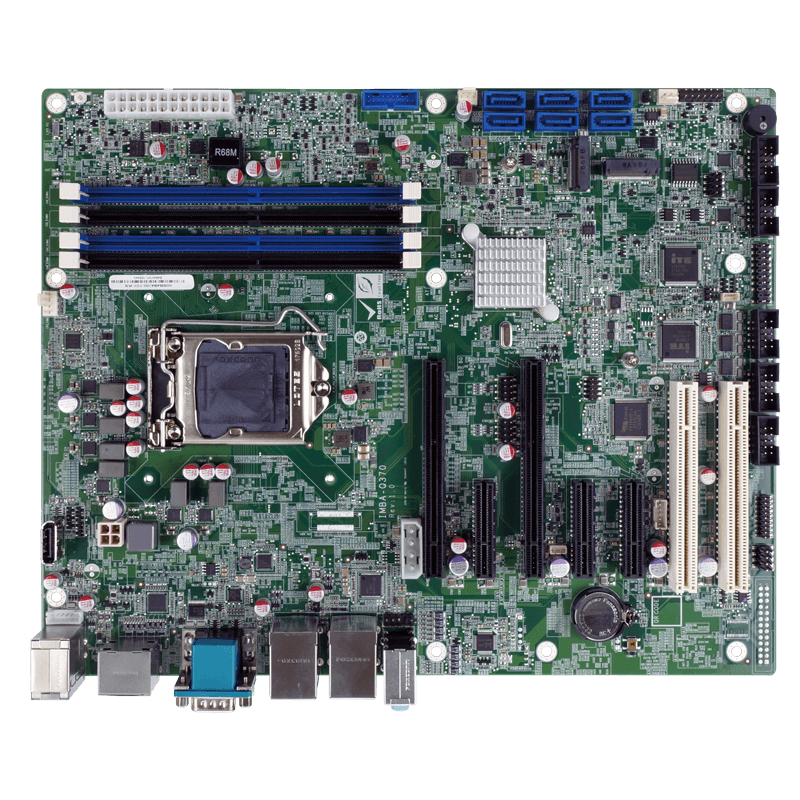

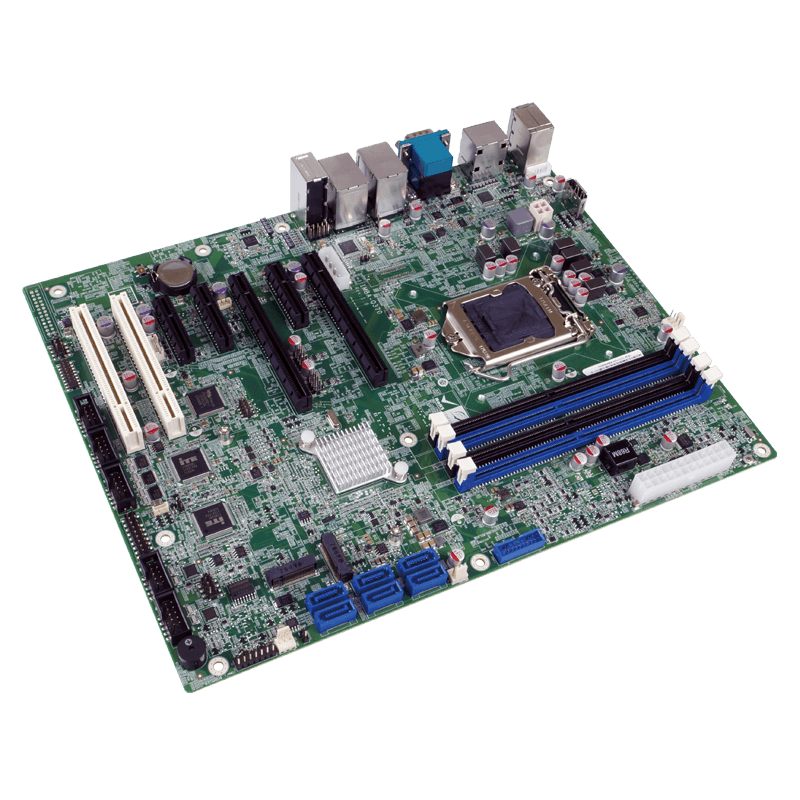

IMBA-C2460

ATX motherboard supports 14nm LGA1151 Intel® 8th/9th Generation Xeon® E, Core™ i9/i7/i5/i3, Celeron® and Pentium® processor per Intel® C246, DDR4, triple displays, dual GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS

  • Overview
    ● LGA1151 Intel® 8th/9th Generation Xeon® E, Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
    ● Dual-channel DDR4 2666MHz
    ● Support VGA, HDMI & DP++
    ● Support M.2 A key for WLAN expansion, M key for storage

  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form Factor
      Form Factor ATX Motherboard
      System
      CPU LGA1151 Intel® 8th/9th Generation Xeon® E, Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
      Chipset Intel® C246
      Memory Four 288-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 64GB (ECC&non-ECC support)
      Memory Max. Up to 64GB
      Cooling method / System Fan 1 x CPU fan connector (1x4 pin)
      2 x System fan connector (1x3 pin)
      Physical Characteristics
      Dimensions (LxWxH) (mm) 244mm x 305mm
      Net Weight GW:1200g / NW:700g
      Storage
      Storage 1 x M.2(NGFF): 1 x M.2 M Key (2280, PCIe x2 only)
      6 x SATA

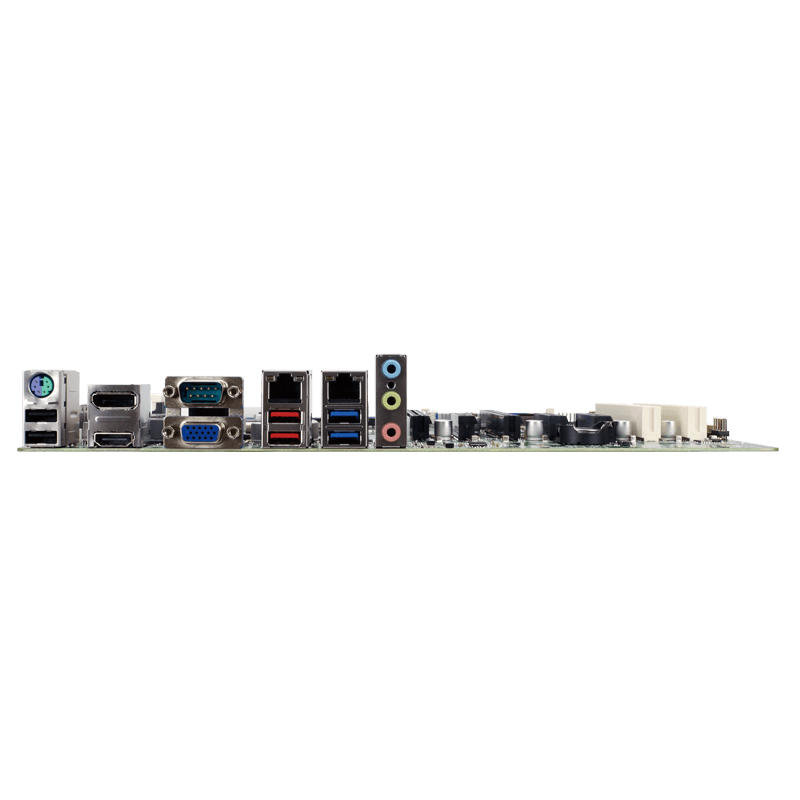

      I/O Interface
      Display Output 1 x Display Port: Internal DisplayPort
      1 x DP++
      1 x HDMI
      1 x VGA
      Ethernet 2 x LAN::
      LAN1: Intel® I219LM PCIe controller with AMT 11.0 support
      LAN2: Intel® I210AT PCIe controller
      Audio 1 x Front Audio(2x5-pin)
      HD Audio: Realtek ALC662 HD codec
      1 x Line in
      1 x Line out
      1 x Mic
      I/O Interface 1 x DIO: 8-bit digital I/O (2x5 pin)
      1 x External RS-232
      2 x External USB 2.0
      2 x External USB 3.2 Gen1x1
      2 x External USB 3.2 Gen2x1
      3 x Internal RS-232(2x5 pin, P=2.54)
      2 x Internal RS-232/422/485(2x5 pin, P=2.54)
      4 x Internal USB 2.0(2x4 pin, P=2.54)
      2 x Internal USB 3.2 Gen1x1(2x10 pin, P=2.0)
      1 x LPT(2x13 pin, P=2.54) Optional
      2 x PS/2::
      1 x PS/2 (External)
      1 x KB/MS (1x6 pin) (Internal)
      Expansion 2 x M.2(NGFF)::
      1 x M.2 A key (2230, PCIe x1 & USB 2.0)
      1 x M.2 M Key (2280, PCIe x2 only)
      2 x PCI Slot
      3 x PCIe x4
      2 x PCIe x8
      Other Features
      TPM 1 x TPM 2.0 connector (2x10 pin)
      Power
      Power Consumption 3.3V@0.38A, 5V@9.38A, 12V@6.23A, 5VSB@0.16A
      (3.0 GHz Intel® Core™ I5-8500 CPU with four 16 GB 2400 MHz DDR4 memory)
      Power Supply ATX/AT power supply
      Support AT/ATX mode
      ErP/EuP Compliant
      Environment
      Operating Temperature -20°C ~ 60°C
      Storage Temperature -30°C ~ 70°C
      Humidity 5% ~ 95%, non-condensing
      Certifications
      Safety & EMC CE/FCC compliant

    • Ordering Info.

      Item No. Description
      IMBA-C2460-R10 ATX motherboard supports 14nm LGA1151 Intel® Xeon® E,8th/9th Core™ i9/i7/i5/i3, Celeron® and Pentium® per Intel® C246, ECC & non-ECC DDR4, triple independent displays, dual GbE LAN, M.2, USB 3.2 Gen 2, SATA 6Gb/s, HD Audio and RoHS

    • Package Contents

      • 1 x IMBA-C2460 single board computer

      • 2 x SATA cable

      • 1 x I/O shielding

      • 1 x QIG
