HYPER-BT

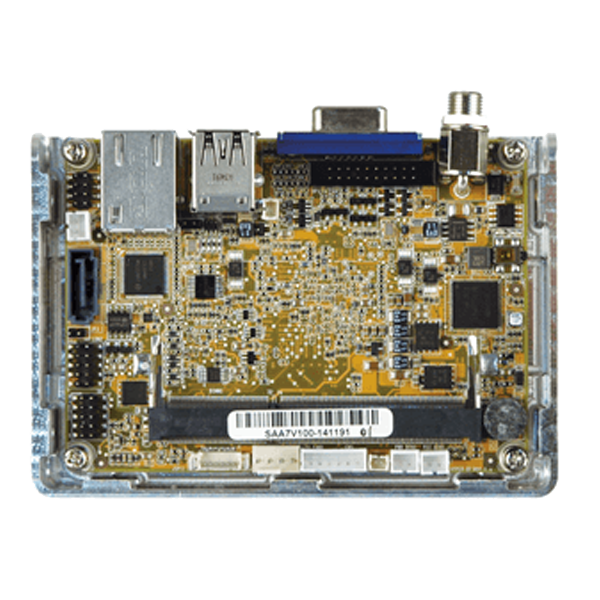

Pico-ITX SBC supports Intel® 22nm Atom™/Celeron® on-board SoC

  • Overview

    ● Pico-ITX SBC supports Intel® 22nm Atom™ or Celeron® on-board SoC
    ● 12V only single voltage design for AT/ATX power by DC power jack
    ● VGA and iDP support dual display
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Display
      Display OutputDual independent display
      1 x VGA (up to 2560x1600@60Hz)
      1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60Hz)
      Environment
      Humidity5% ~ 95%, non-condensing
      Operating Temperature-20°C ~ 60°C
      I/O Interface
      AudioRealtek ALC662 HD codec supports 5.1-channel
      EthernetIntel® I211-AT PCIe controller
      I/O Interface
      I/O Interface1 x USB 3.0
      1 x Internal RS-232
      2 x Internal USB 2.0
      1 x USB 2.0
      Power
      Power consumption+12V@1.35A (Intel® Celeron® J1900 with one 4GB 1333 MHz DDR3 memory)
      SoC
      SoCSoC
      Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
      Intel® Atom™ E3827 on-board SoC (1.75GHz, dual-core, 1MB cache, TDP=8W)
      Intel® Atom™ E3826 on-board SoC (1.46GHz, dual-core, 1MB cache, TDP=7W)
      Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
      Intel® Atom™ E3815 on-board SoC (1.46GHz, dual-core, 1MB cache, TDP=5W)
      Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W)
      Intel® Celeron® N2930 on-board SoC (1.83GHz, quad-core, 2MB cache, TDP=7.5W)
      Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.3W)
      Storage
      Storage1 x SATA 3Gb/s with 5V SATA power connector
      System
      Memory Max.One 204-pin 1066/1333 MHz single-channel DDR3L SO-DIMM supports up to 8GB
      (J1900, N2930, E3845, E3827, E3826) or 4GB (N2807, E3825, E3815)
      Watchdog Timer
      Watchdog TimerSoftware programmable, support 1~255 sec. system reset
    • Ordering Info.

      Item No. Description
      HYPER-BT-N29301-R10PICO-ITX SBC supports Intel® 22nm Quad-Core Celeron™ N2930 1.86GHz (7.5W) on-board SoC with DDR3L, iDP/VGA, GbE, USB 2.0, SATA, Audio and RoHS
      HYPER-BT-E38XX1-R10
      HYPER-BT-J19001-R10PICO-ITX SBC supports Intel® 22nm Quad-Core Celeron™ J1900 2.0GHz on-board SoC with DDR3L, iDP/VGA, GbE, USB 2.0, SATA, Audio and RoHS
      HYPER-BT-N28071-R10PICO-ITX SBC supports Intel® 22nm Dual-Core Celeron™ N2807 1.58GHz (4.5W) on-board SoC with DDR3L, iDP/VGA, GbE, USB 2.0, SATA, Audio and RoHS
    • Package Contents

      • 1 x HYPER-BT single board computer

      • 1 x Audio cable 1 x One Key Recovery CD

      • 1 x RS-232 cable

      • 1 x QIG

      • 1 x SATA with 5V output cable kit

      • 1 x Utility CD
