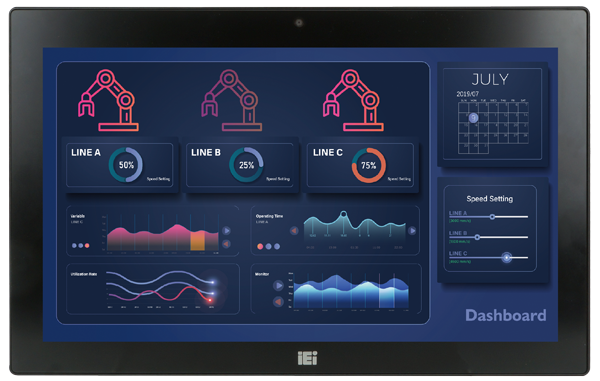

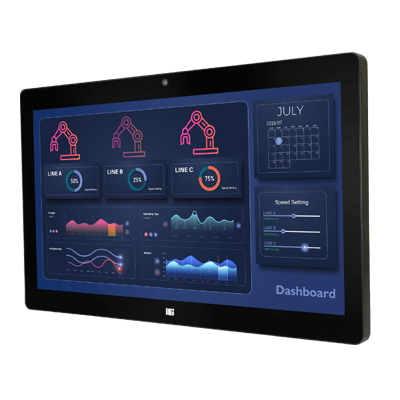

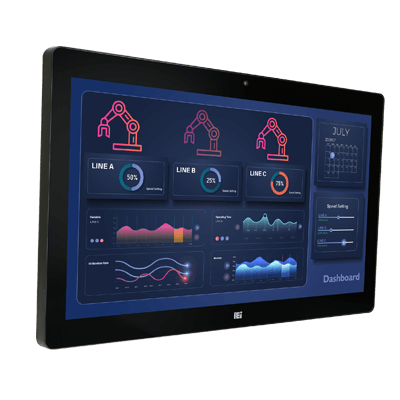

AFL3-W22C-ULT5

Intel® 8th Generation Whiskey Lake processor

  • Overview

    ● W21.5” light industrial interactive panel PC
    ● 8th Generation Intel® Core™ i5 on-board Whiskey Lake-U processor
    ● Selectable AT/ATX power mode
    ● Built-in speakers
    ● Support PoE PD IEEE803.2 af/at/bt (optional)
    ● IP64 compliant front panel
    ● Touch screen with anti-UV / anti-glare coating
    ● Support Auto Flow Control over RS-485
  • Features

    AFL3 Series Products support up to IEEE 802.3bt standard and IEI offer PoE PD bt standard module to option install to AFL3 series panel pc.

    IEEE802 comparison table

    Application

    PoE Scenario (Delivery Data and Power Together Thru Ethernet cable) PoE allows electronic devices to receive both power and data through one Ethernet plug-in. The ability to receive both power and data through one cord means less cabling and less cost for the factory automation

    PoE Power Supply Connection Structure

    Setup Intelligent PoE Management System

    Setup Intelligent Management System

    IEI AFL3 PoE Product Support List

    The AFL3 series uses DC adapter as a default to connect with power source. The following PoE PD modules provide additional options for powering up the system.

    IEI AFL3 PoE Panel PC Product Support Table


    AG Coating & Anti-UV

    - AG Coating: With the implementation of AG coating, the AFL3 series can prevent eye discomfort caused by reflective glare

    - Anti-UV: The Anti-UV can prevent the yellowing or cracking caused by long-term exposure of UV light or in most cases, the sun. Thus improving the life span of the touch panel

    AG Coating & Anti-UV industrial panel PC screen

    Waterproof Grade

    The IP65/ IP64 compliant front panel of the AFOLUX GEN III panel PC has passed tests to check if there is any water, dust or dirt passing the sealing design. Reference IEC60529 Testing Procedures: Hose diameter: 25.4 mm (UL50 Type 4X), the distance from water hose to DUT is 3 meters.

    Waterproof Grade IP64 IP65 panel PC

    Fanless Design

    • Operating Temperature (°C) (Ambient with air flow): minus -20˚C~50˚C
    • Storage Temperature (°C): minus -20˚C~60˚C
    Fanless Design industrial touch panel PC

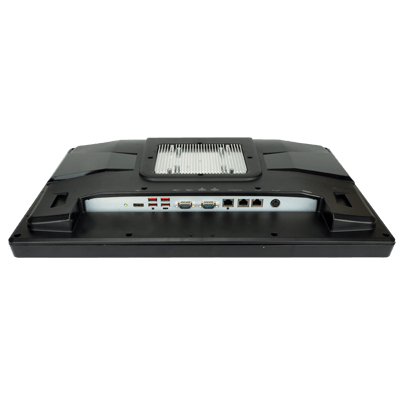

    I/O Interface

    I/O Interface

    Dimensions

     Dimensions
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Communication
      Bluetooth Bluetooth V4.1
      Wireless IEEE 802.11a/b/g/n/ac
      Environment
      Humidity 10% ~ 95% (non-condensing)
      Operating Temperature -20ºC ~ 50ºC (-4ºF ~ 122ºF)
      Storage Temperature -20°C ~ 60°C (-4ºF ~ 140ºF)
      I/O Interface
      Audio AMP 3W + 3W (internal speaker)
      Audio Codec ALC888S
      Ethernet LAN1 & LAN2: Intel® I211
      LAN3: Intel® I219
      RAM Two 260-pin 2400MHz dual-channel DDR4 SO-DIMMs supporting up to 32 GB
      LCD
      Backlight MTBF 30000 (LED backlight)
      Brightness (cd/m2) 250
      Contrast Ratio 1000:1
      LCD Color 16.7M
      Resolution 1920 X 1080 (16:9)
      Size 21.5”
      Viewing Angle (H-V) 170º / 160º
      Power
      Power Requirement 12V, 8A
      System
      Cooling method / System Fan Fanless
      CPU Intel® Core™ i5-8365UE 1.6 GHz (up to 4.1GHz, Quad-core, 6MB cache, TDP=15W)
      Storage 1 x M.2 M-key 2242/60/80 PCIe 3.0 x4 (PCIe/SATA Signal)
      1 x 2.5” SATA 3Gb/s HDD bay
      Touch
      Touch Controller EXC3160
      Touch Screen PCAP with USB interface (anti-UV/AG coating)
      Weight
      Weight 4.5kg/6.5kg
      I/O Interface
      I/O Interface 1 x AT/ATX Switch
      1 x Clear CMOS
      1 x HDMI
      3 x LAN(GbE)
      1 x Power In
      1 x Power Switch
      1 x Reset Button
      1 x RS-232
      1 x RS-422/485(RS-232/422/485)
      4 x USB 3.2 Gen2
    • Ordering Info.

      Item No. Description
      AFL3-W22C-ULT5-i5/P/PC/4G-R10 Wide 21.5”250 cd/m² 1920x1080 Panel PC with Intel® 14nm 8th Whiskey Lake Core™ i5-8365UE (15W) on-board Processor (ULT) , POE option , 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone,1*4GB DDR4 RAM , with AG, R10
    • Package Contents

      • 4 x Round head machine screw

      • 4 x Pan head machine screw

      • 1 x Power cord

      • 1 x Power adapter
