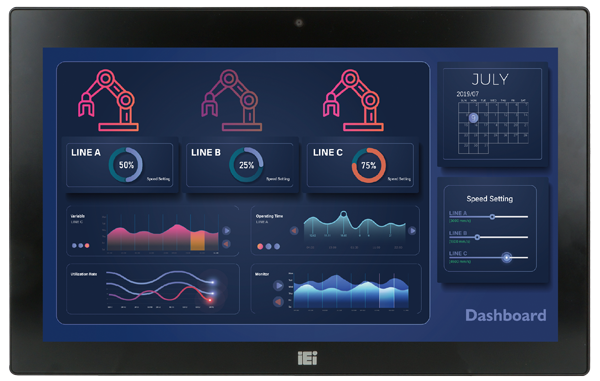

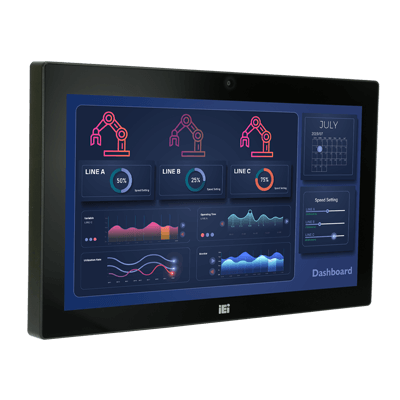

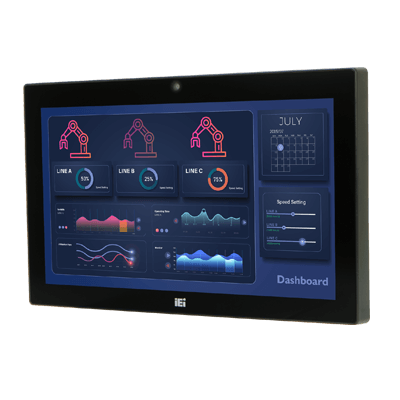

Overview● W15.6” light industrial interactive panel PC● 8th Generation Intel® Core™ i5 on-board Whiskey Lake-U processor● Selectable AT/ATX power mode● Built-in speakers● Support PoE PD IEEE803.2 af/at/bt (optional)● IP64 compliant front panel● Touch screen with anti-UV / anti-glare coating● Support Auto Flow Control over RS-485
AFL3 Series Products support up to IEEE 802.3bt standard and IEI offer PoE PD bt standard module to option install to AFL3 series panel pc.
PoE Scenario (Delivery Data and Power Together Thru Ethernet cable) PoE allows electronic devices to receive both power and data through one Ethernet plug-in. The ability to receive both power and data through one cord means less cabling and less cost for the factory automation
Setup Intelligent PoE Management System
IEI AFL3 PoE Product Support List
The AFL3 series uses DC adapter as a default to connect with power source. The following PoE PD modules provide additional options for powering up the system.
AG Coating & Anti-UV
- AG Coating: With the implementation of AG coating, the AFL3 series can prevent eye discomfort caused by reflective glare
- Anti-UV: The Anti-UV can prevent the yellowing or cracking caused by long-term exposure of UV light or in most cases, the sun. Thus improving the life span of the touch panel
The IP65/ IP64 compliant front panel of the AFOLUX GEN III panel PC has passed tests to check if there is any water, dust or dirt passing the sealing design. Reference IEC60529 Testing Procedures: Hose diameter: 25.4 mm (UL50 Type 4X), the distance from water hose to DUT is 3 meters.
- Operating Temperature (°C) (Ambient with air flow): minus -20˚C~50˚C
- Storage Temperature (°C): minus -20˚C~60˚C
Spec Item Description Communication Bluetooth Bluetooth V4.1 Wireless IEEE 802.11a/b/g/n/ac Environment Humidity 10% ~ 95% (non-condensing) Operating Temperature -20ºC ~ 50ºC (-4ºF ~ 122ºF) Storage Temperature -20°C ~ 60°C (-4ºF ~ 140ºF) I/O Interface Audio AMP 3W + 3W (internal speaker) Audio Codec ALC888S Ethernet LAN1 & LAN2: Intel® I211; LAN3: Intel® I219 RAM Two 260-pin 2400MHz dual-channel DDR4 SO-DIMMs supporting up to 32 GB LCD Backlight MTBF 50000 (LED backlight) Brightness (cd/m2) 300 Contrast Ratio 500:1 LCD Color 16.7M Resolution 1366 X 768 (16:9) Size 15.6” Viewing Angle (H-V) 170º / 160º Power Power Requirement 12V, 8A System Cooling method / System Fan Fanless CPU Intel® Core™ i5-8365UE 1.6 GHz (up to 4.1GHz, Quad-core, 6MB cache, TDP=15W) Storage 1 x M.2 M-key 2242/60/80 PCIe 3.0 x4 (PCIe/SATA Signal)
1 x 2.5” SATA 3Gb/s HDD bay
Touch Touch Controller EXC3160 Touch Screen PCAP with USB interface (anti-UV/AG coating) Weight Weight 4.5kg/6.5kg I/O Interface I/O Interface 1 x AT/ATX Switch 1 x Clear CMOS 1 x HDMI 3 x LAN(GbE) 1 x Power In 1 x Power Switch 1 x Reset Button 1 x RS-232 1 x RS-422/485(RS-232/422/485) 4 x USB 3.2 Gen2
Item No. Description AFL3-W15C-ULT5-i5/P/PC/4G-R10 Wide 15.6”300 cd/m² 1366x768 Panel PC with Intel® 14nm 8th Whiskey Lake Core™ i5-8365UE (15W) on-board Processor (ULT) , POE option , 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone,1*4GB DDR4 RAM , with AG, R10
4 x Round head machine screw
4 x Pan head machine screw
1 x Power cord
1 x Power adapter
