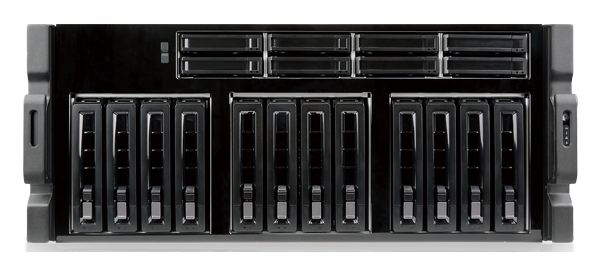

GRAND-C422-20D-H

The GRAND-C422-20D is an AI training system with Intel® Xeon® W family processor and powerful PCIe expansion ability, Support RAID controller card

  • Overview
    ●Intel® Xeon® W family processor supported
    ●Up to 7 x PCIe Slot, up to 4 dual width GPU cards
    ●Water cooling system on CPU
    ●Support SAS SSD
    ●Support one M.2 SSD M-key slot (NVMe PCIe 3.0 x4)
    ●Support 10GbE network
    ●Support RAID controller card
    ●IPMI remote management

  • Features
    Next_Gen_AI_Training_Server

    Overview

    The AI training system GRAND-C442 is dedicated for these tasks because it offers a wide range of slots for storage expansion, acceleration cards and video capture, Thunderbolt™ or PoE add-on cards for unlimited data ac-quisition possibilities. In order to develop a useful training model, existing and widely used deep learning training frameworks such as Caffe, Tensor-Flow or Apache MXNet are recommended. These facilitate the definition of the apt architecture and algorithms for a distinct AI application.

    Expandable to suit your needs

    AI computing requires huge computing power, so our system can support up to 4 dual-width expansion slots (PCIe x8) and 2 single-width expansion slots (PCIe x4) for maximum expansion ability to meet computing needs. All six of the backplane slots connect directly to the system host board. This is perfect for applications that require minimal latency.

    AI_Training_grand

    Storage (M.2, SATA, SAS & U.2 by SKU)

    The GRAND-C422-20D supports M.2 2280 M key (PCIe x4) nVMe, SATA HDD/SSD, SAS HDD & U.2 SSD (by SKU). It has a built-in M.2 2280 M key (PCIe x4) nVMe port and 20 bays of HDD/SSD slots including two U.2 SDD slots. The GRAND-C422-20D supports M.2 solid-state disk which is the next-generation small-sized form factor introduced by Intel after mSATA. It has better performance than general SATA SSD but it is lighter and more power saving.

    GRAND_Storage

    I/O Interface

    GRAND_Interface_I_O
    GRAND_Interface_I_O_2

  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPU Intel® Xeon® W Family Processors
      Chipset Intel® C422
      Memory Max. Memory expandable up to: 256 GB (64 GB x 4)
      Cooling method / System Fan 2 x Smart Fan (12cm 12V DC)
      Physical Characteristics
      Rack Height 4U
      Storage
      Storage 8 x 2.5” SSD/HDD Bay
      12 x 3.5” HDD Bay
      1 x M.2(NGFF)
      20 x SATA(Support SAS/SATA drives)
      I/O Interface
      Display Output 1 x VGA
      Ethernet 2 x LAN(1 x 10Gbase-T, 1 x 1Gbase-T)
      I/O Interface 1 x External RS-232
      2 x External USB 2.0
      4 x External USB 3.0
      Expansion 2 x PCIe x 16(2 x PCIex16 for GRAND-C422-20D-H1)
      3 x PCIe x 4(3 x PCIex4 for GRAND-C422-20D-H1, 2 x PCIex4 for GRAND-C422-20D-H2)
      5 x PCIe x 8(1 x PCIex8 for GRAND-C422-20D-H1, 5 x PCIex8 for GRAND-C422-20D-H2)

    • Ordering Info.

      Item No. Description
      GRAND-C422-20D-H1A1-R10 20-bay(12 x 3.5", 8 x 2.5") 4U Rackmount, support hardware RAID, Intel® Xeon® W-2123 with C422 chipset, 32G DDR4 w/ECC, 6 x PCIe expansion slot, and 1200W redundant PSU, RoHS
      GRAND-C422-20D-H1-R10 Barebone, 20-bay(12 x 3.5", 8 x 2.5") 4U Rackmount, support hardware RAID, Intel® Xeon W series with C422 chipset, 6 x PCIe expansion slot, and 1200W redundant PSU, RoHS
      GRAND-C422-20D-H2A1-R10 20-bay(12 x 3.5", 8 x 2.5") 4U Rackmount, support hardware RAID, Intel® Xeon® W-2123 with C422 chipset, 32G DDR4 w/ECC, 7 x PCIe expansion slot, and 1200W redundant PSU, RoHS
      GRAND-C422-20D-H2-R10 Barebone, 20-bay(12 x 3.5", 8 x 2.5") 4U Rackmount, support hardware RAID, Intel® Xeon W series with C422 chipset, 7 x PCIe expansion slot, and 1200W redundant PSU, RoHS

    • Package Contents

      • Ethernet cable x 2

      • Power cord x 2

      • Flat head screw (for 3.5” HDD)

      • Flat head screw (for 2.5” HDD)
