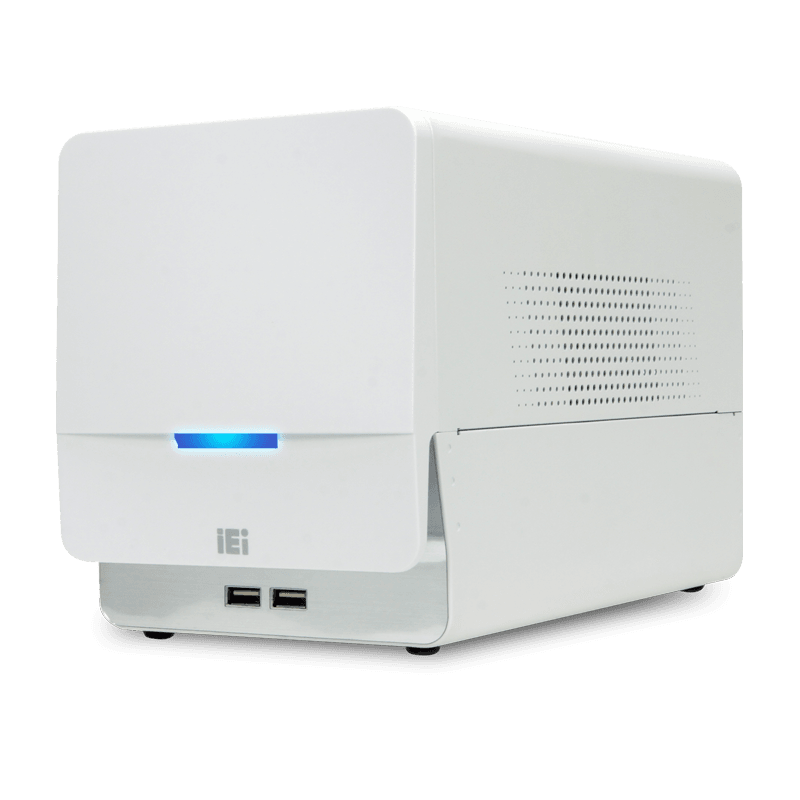

HTB-200-C236

6th/7th Generation Intel® Xeon & Core™ Medical Box PC

  • Overview
    ● Compact small edge device with great computing & graphic performance
    ● 6th/7th Gen Intel® Xeon & Core™ processor platform with Intel® C236 chipset
    ● Dual SODIMM ECC & non-ECC unbuffered Memory supported up to 64GB
    ● PCIe [x16] slot supports for Nvidia GPU, IEI Mustang Acceleration Card
    ● PCIe [x4] slot supports for capture card or other application

  • Features
    AI Box PC

    Dual PCIe Slots

    PCIe x [16]

    Accelerator cards are crucial to data scientists. High compatibility for the GPU cards such as Nvidia P4 , T4, Quadro series or IEI Mustang series make the end user choose the accelerator cards based on their different needs.

    PCIe x [4]

    The redundant PCIe x [4] slot is reserved for all-in-one video capture card or any other expansion.

    IEI AI Box PC Unique Thermal Solution

    Unique Thermal Solution

    Everyone knows the better performance of a GPU card, the more heat would be generated. Unique thermal design ensures the system keeping sustained 100% CPU and GPU loading. Cater to NVIDIA® Tesla T4 passive heat sink design, IEI adopts blower-ventilation solution that not only creates a strong air flow but also minimizes the noise made by fan system.

    Easy Maintenance AI embedded system

    Easy Maintenance

    Accessible hard drive enables the IT techinician to do the maintenance work more easily. The storage cover locates at the bottom of HTB-200-C236 and fits for 2.5 inch SSD or HDD. It only takes time to remove 4 screws, then the IT techinicians could check or replace the storage device.

    I/O Interface

    HTB-200 AI Box PC IO interface

    Dimension

    HTB-200 AI Box PC IO Dimension

  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form factor
      SBC Form Factor *CPU:
      Intel® Xeon E3-1268LV5,35W TDP
      *Chipset:
      Intel® C236 for Xeon
      *Memory:
      Two 260-pin 1600/2133MHz Dual-Channel DDR4 SODIMM ECC & non-ECC unbuffered Memory supported up to 64GB
      *Power:
      DC Jack : 19V DC(Input)
      100V ~ 240V AC input ,19V DC output ,180W
      I/O Interface
      I/O Ports 2 x USB 3.2 Gen 1, 2 x USB 2.0
      1 x RS-232/422/485
      LAN1: Intel® I219LM Clarkville-V with Intel® AMT 11.0 support
      LAN2: Intel® I210 PCIe controller
      1 x HDMI 1.3a (up to 1920x1200)
      Expansion Slots
      Expansion Slots 1 x PCIe Gen3 [x16] slot
      1 x PCIe Gen3 [x4] slot
      1 x Half-size Mini- Card
      System
      Cooling method / System Fan Smart Fan
      Indicator&Buttons
      Buttons 1 x Power Button
      1x Reset switch
      1x AT/ATX switch
      Color
      Color White
      Dimensions
      Dimensions 140 x 171 x 276.6 mm
      Weight
      Weight 2.8 Kg
      Environment
      Operating Temperature 0 ~ 35° C
      Humidity 10% ~ 95%, non-condensing

    • Ordering Info.

      Item No. Description
      HTB-200-C236-E3/32G/2A-R10 Embedded system with Intel® Xeon®E3-1268LV5 2.4GHz, (Quad Core, TDP 35W), 2x16GB DDR4 pre-installed memory, 1 x PCIe by 16 & 1 x PCIe by 4 expansion, 19V DC 180W power adapter, white color, R10
      HTB-200-C236-i5/16G/2A-R10 Embedded system with Intel® Core i5-7500T 2.7GHz, (Quad Core, TDP 35W), 2x8GB DDR4 pre-installed memory, 1 x PCIe by 16 & 1 x PCIe by 4 expansion, 19V DC 180W power adapter, white color, R10

    • Package Contents

      • 1 x Power Adapter

      • 1 x DCPower Cord

      • 4 x HDD Screw
