ACE-A618C

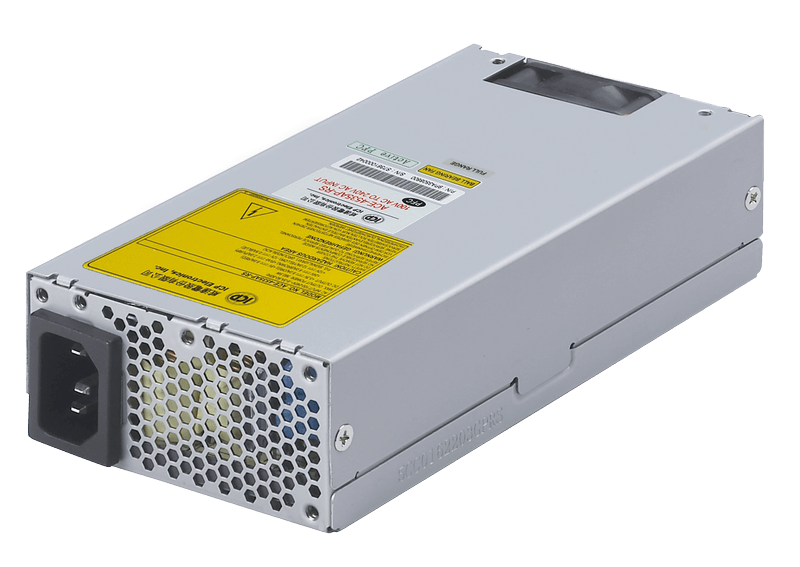

1U flex ATX 180W Power Supply

End of Life

End of Life Notice

* Effective Date: 2022/12/28

1U flex ATX 180W Power Supply

Hardware Spec.

General
Dimensions 150 x 81.5 x 40.5
Efficiency 85%
MTBF 100000
Operating temperature 0°C ~ 50°C
Output Connector 1 x 20+4-PIN ATX,
1 x 4-pin 12V CPU,
1 x HDD/CDROM,
1 x FDD,
2 x SATA
Storage temperature -20°C ~ 80°C
Watt 180
Input
Voltage 90~264 VAC Full Range
Frequency 47 Hz ~ 63 Hz
Input Current 3A (RMS)@115VAC, 1.5A (RMS)@230VAC
Inrush Current 80A max. for 115VAC, 160A max. for 230VAC
Output
Voltage +3.3V/10A,+5V/14A,+12V/10A,-12V/0.3A,+5Vsb/2.5A
Over Voltage Protection +3.3V: 3.7V-4.8V
+5V: 5.55V-7.0V
+12V1 : 13.3V-16V
Short Circuit Protection +3.3V, +5V, +12V, -12V shutdown and latch off

Ordering Information

ACE-A618C-R10 1U flex ATX 180W Power Supply;90~264VAC;ERP;CCL;RoHS
