Overview

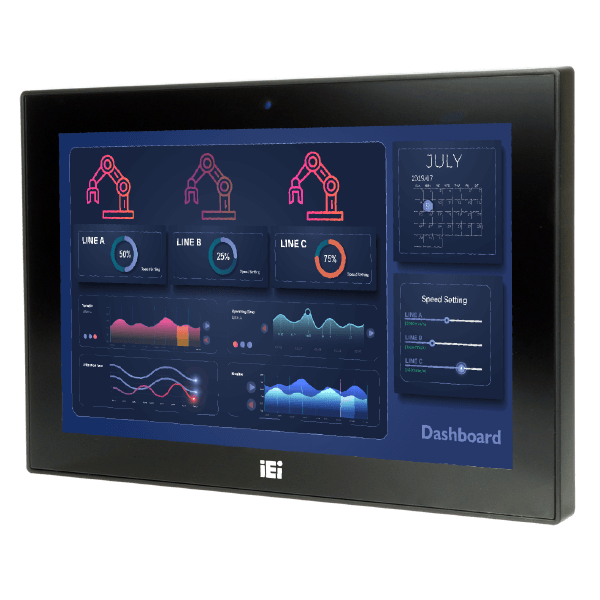

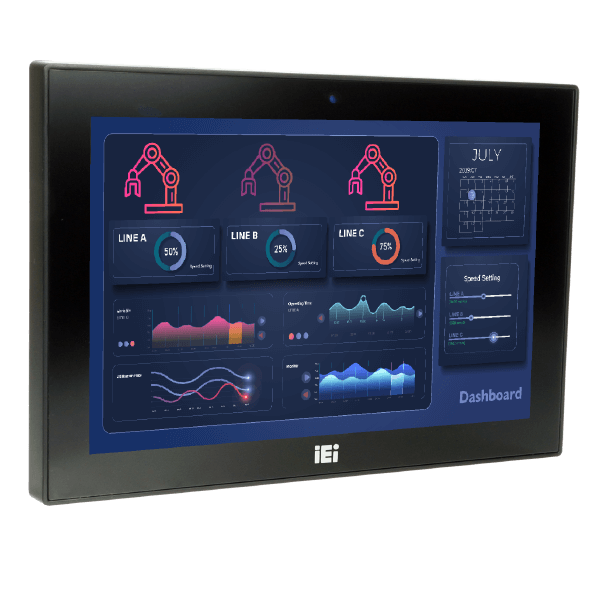

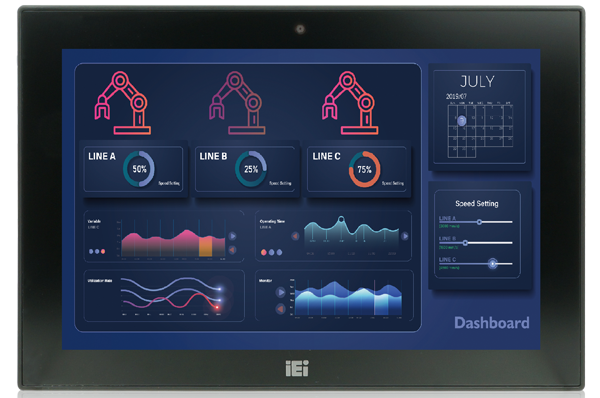

• W10.1” light industrial interactive panel PC• 9 V ~ 30 V wide range DC input with lockable DC jack• Selectable AT/ATX power mode• Built-in speakers• Support PoE PD IEEE803.2 af/at/bt• IP64 compliant front panel• Touch screen wth anti-UV / anti-glare coating -
Features
AFL3 Series Products support up to IEEE 802.3bt standard and IEI offer PoE PD bt standard module to option install to AFL3 series panel pc.
Application
PoE Scenario (Delivery Data and Power Together Thru Ethernet cable) PoE allows electronic devices to receive both power and data through one Ethernet plug-in. The ability to receive both power and data through one cord means less cabling and less cost for the factory automation
Setup Intelligent PoE Management System
IEI AFL3 PoE Product Support List
The AFL3 series uses DC adapter as a default to connect with power source. The following PoE PD modules provide additional options for powering up the system.
AG Coating & Anti-UV
- AG Coating: With the implementation of AG coating, the AFL3 series can prevent eye discomfort caused by reflective glare
- Anti-UV: The Anti-UV can prevent the yellowing or cracking caused by long-term exposure of UV light or in most cases, the sun. Thus improving the life span of the touch panel
Waterproof Grade
The IP65/ IP64 compliant front panel of the AFOLUX GEN III panel PC has passed tests to check if there is any water, dust or dirt passing the sealing design. Reference IEC60529 Testing Procedures: Hose diameter: 25.4 mm (UL50 Type 4X), the distance from water hose to DUT is 3 meters.
Fanless Design
- Operating Temperature (°C) (Ambient with air flow): minus -20˚C~50˚C
- Storage Temperature (°C): minus -20˚C~60˚C
I/O Interface
Dimensions
-
Specifications
-
Hardware Spec.
Spec Item Description Communication Bluetooth Bluetooth V4.1 Wireless IEEE 802.11a/b/g/n/ac Environment Humidity 10% to 95% (non-condensing) Operating Temperature -20°C ~ 50°C Storage Temperature -20°C~60°C I/O Interface Audio AMP 2W + 2W (internal speaker) Audio Codec ALC269 Ethernet 2 x PCIe GbE by Intel® i211 controller RAM one 204-pin 1866MHz DDR3L DIMMs support up to 8GB LCD Backlight MTBF 15000 (LED backlight) Brightness (cd/m2) 350 Contrast Ratio 800:1 LCD Color 16.7M Pixel Pitch (mm) 0.1695 (H) x 0.1695 (V) Resolution 1280 x 800 (16:10) Size 10.1” Viewing Angle (H-V) 170° / 170° Other Features Camera 2-megapixel with low light function Microphone digital microphone Power Power Requirement 9~30V , 4~1,2A System Cooling method / System Fan Fanless CPU Intel® Celeron® J3455 (quad core , 1.5GHz up to 2.3 GHz) Storage 1 x M.2 B+M key PCIe 2242 (USB/PCIE/SATA signal) Touch Touch Controller EETI EXC3146 Touch Screen Projected capacitive type with USB interface (anti-UV) Weight Weight 1.06kg/2.58kg I/O Interface I/O Interface 1 x AT/ATX Switch 1 x Clear CMOS 1 x HDMI(output) 2 x LAN(GbE) 1 x Line out 1 x Power In(9 V ~ 30 V lockable DC jack) 1 x Power Switch 1 x Reset Button 2 x USB 2.0 2 x USB 3.0 -
Ordering Info.
Item No. Description AFL3-W10A-AL-J2/P/PC/4G-R10 10.1” 350cd/m² 1280x800 Panel PC with Intel® Celeron® Processor J3455 (10W) on-board Processor, POE option, 1*4GB DDR3L , 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone,R10 -
Package Contents
-
4 x Round head machine screw
-
4 x Pan head machine screw
-
1 x Power cord
-
1 x Power adapter
-
1 x RJ-45 to DB-9 COM port transfer cable
-
-
-
