Overview

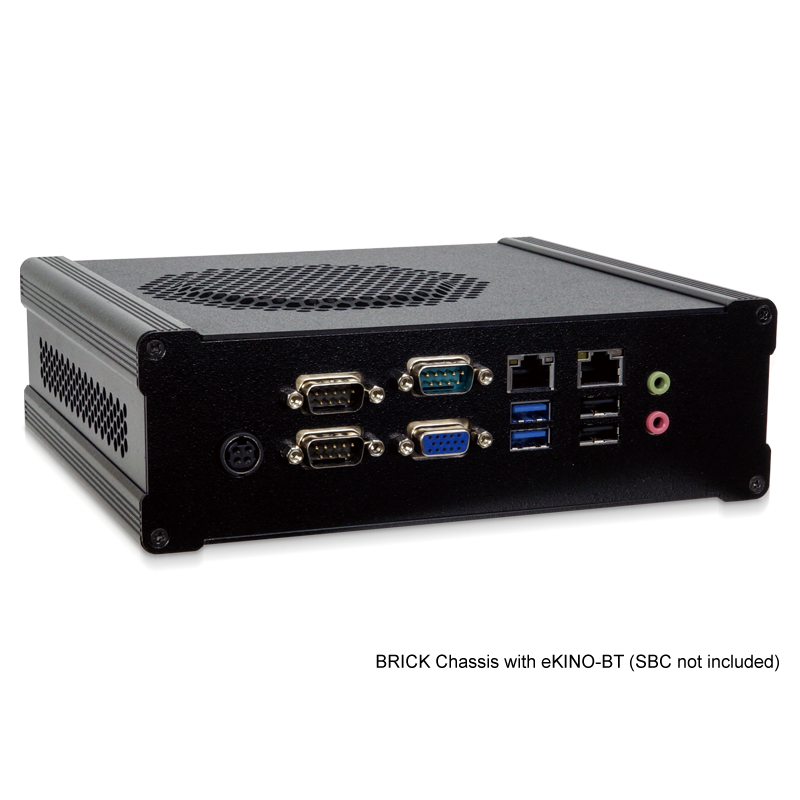

● Designed for Mini-ITX SBCs with DC input● Flexible SBC compatibility● One 2.5” hard drive capacity● Cost-effective, RoHS compliant design -
Features
Exploded View
Dimension
-
Specifications
-
Hardware Spec.
Spec Item Description Form factor SBC Form Factor Refer to KINO Series I/O Interface I/O Openings Reserved IO window for COM port expansion I/O Ports Refer to SBCs Expansion Slots Expansion Slots Refer to SBCs System Cooling method / System Fan Refer to SBCs Drive Bays 1 x 2.5” HDD bay Indicator&Buttons Buttons Power switch with LED Color Color Black Dimensions Dimensions 203 x 178 x 64 mm Weight Weight 1.25kg/1.5kg Environment Operating Temperature 0°C ~ 40°C -
Ordering Info.
Item No. Description BRICK-eKINO-BT-R10 Embedded chassis for eKINO-BT SBC, with IO bracket ,power switch, mat black and RoHS BRICK-KINO-DAL-R10 Embedded chassis for KINO-DAL SBC, with IO bracket ,power switch, mat black and RoHS BRICK-KINO-DBT-R10 Embedded chassis for KINO-DBT SBC, with IO bracket ,power switch, mat black and RoHS BRICK-tKINO-AL-R10 Embedded chassis for tKINO-AL SBC, with IO bracket ,power switch, mat black and RoHS BRICK-tKINO-BW-R10 Embedded chassis for tKINO-BW SBC, with IO bracket ,power switch, mat black and RoHS BRICK-tKINO-ULT3-R10 Embedded chassis for tKINO-ULT3 SBC, with IO bracket ,power switch, mat black and RoHS -
Package Contents
-
1 x BRICK Chassis
-
1 x Power switch cable
-
1 x Screw set
-
1 x QIG
-
-
