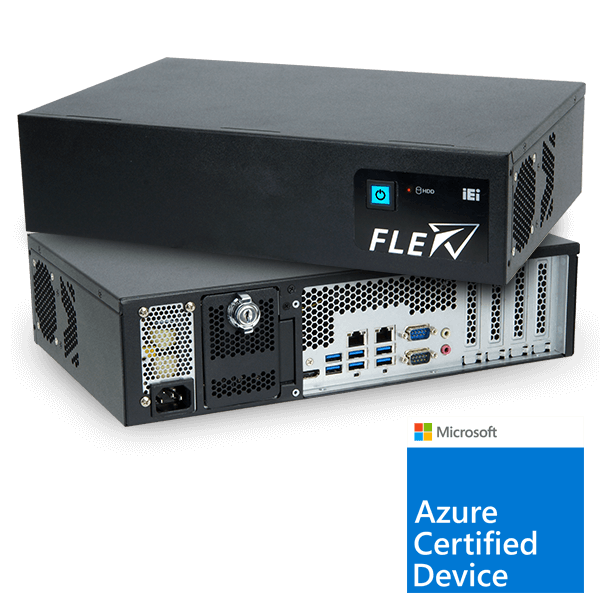

FLEX-BX200-C246

Intel® Coffee Lake AI Modular Embedded System

  • Overview
    ● 2U AI Modular PC with Intel® Xeon® E Processor
    ● Four hot-swappable and accessible HDD drive bays, support RAID 0/1/5/10
    ● Two PCIe 3.0 by 4 and two PCIe 3.0 by 8 slots
    ● Dual M.2 2280 PCIe Gen 3.0 x4 NVMe™ SSD support
    ● Modular LCD panel kit design (Please refer: FLEX-PLKIT Selection)

  • Features

    IEI AI Ready Solution Accelerates Your AI Initiative

    The FLEX-BX200 is an AI hardware ready system ideal for deep learning inference computing to help you get faster, deeper insights into your customers and your business. IEI’s FLEX-BX200 supports graphics cards, Intel FPGA acceleration cards, and Intel VPU acceleration cards, and provides additional computational power plus end-to-end solution to run your tasks more efficiently. With the NVIDIA TensorRT, QNAP QuAI, and Intel OpenVINO AI development toolkit, it can help you deploy your solutions faster than ever.

    AI-ready-solution

    8th Generation Intel® Core™ Desktop Processors

    INTEL 8th CPU

    4-Bay Hot Swappable HDD RAID 0/1/5/10 Protection

    The FLEX series offers four 2.5”HDD bays with high speed SATA 6Gb/s interface that can expand storage capabilities and enable fast data transfers. The equipped Intel Q370 chipset provides reliable and high performance hardware RAID protection to back-up your media and critical information. You can configure the RAID 0/1/5/10 from the BIOS menu to increase performance and/or provide automatic protection against data loss from drive failure.

    What type of RAID do I need?

    ● RAID 0 (Striping) -The highest performing level

    ● RAID 1 (Mirroring) - Data safety

    ● RAID 5 (Distributed Parity)-offers both data safety and performance

    ● RAID 10 (combining mirroring and striping) data safety and big data volume

    flex box pc RAID

    Four PCIe x4/x8 Low Profile Expansion Slots

    The FLEX series supports multiple PCIe slots including two PCIe 3.0 x8 and two PCIe 3.0 x4 slots, which are compatible with standard low profile add-on cards, to meet different edge inference computing applications.

    ● High Speed: 10GbE card, fiber network card

    ● I/O card: Serial port card, USB card, LAN card, etc.

    ● AI accelerating card: VPU card, FPGA, GPU card, etc.

    ● Wireless card: Wi-Fi card, mobile wireless card, etc.

    ● Storage card

    AI box PC dimension

    Supported Cards

    support card

    HDMI 1.4 Output Delivers 4K High Definition Video and Audio

    The FLEX-BX200 integrated with Intel® Coffee Lake Desktop processor supports HDMI 1.4 output port delivering 4K 24 Hz with amazing details. And a single HDMI cable carries both video and audio signals, which makes hookup particularly easy.

    4K High Definition Video

    Thunderbolt™ 3 Dual Ports (optional)

    Thunderbolt™ 3 Dual Ports

    Flexible Deployment

    Rack Mount

    The FLEX-BX200-Q370 is designed in 2U height for easy and quick installation in control cabinets.

    Rack Mount

    Wall Mount

    The FLEX-200-Q370 wall-mountable industrial box PC provides two-way direction for wall mounting, allowing users to orient the I/O panel upwards or downwards.

    Wall Mount

    All-in-One Panel PC

    The FLEX series featuring a modular design can be fitted with different sizes of panel kits to expand its capabilities.

    ● More than 7 SKUs provided

    ● Various monitor choices: 15"/15.6"/17"/18.5"/22"/24"

    ● PCAP touch screen

    ● 250W or 350W AC power supply

    ● Easy assembly and maintenance

    ● One stop shopping and build your own system to accelerates time to market

    All-in-One Panel PC

    I/O Interface

    AI-Box-PC-IO-interface

  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form factor
      SBC Form Factor Intel® Xeon® E Processor in the LGA 1151
      Intel® C240 Series Chipsets
      FLEX AI Modular Box PC
      I/O Interface
      I/O Ports 1 x HDMI output
      2 x GbE LAN
      6 x USB 3.0 Type-A
      2 x RS-232 DB-9 type
      1 x Mic in
      1 x Line out
      1 x AC power in Inlet
      Expansion Slots
      Expansion Slots 2 x PCIe 3.0 by 8 (by 16 slot)
      2 x PCIe 3.0 by 4 (maximum card size supported: 68 mm x 167 mm)
      System
      Cooling method / System Fan System fan
      Drive Bays 4 x Accessible 2.5” SATA 6Gb/s HDD/SSD bay (RAID 0/1/5/10 support)
      Indicator&Buttons
      Buttons Power button with power LED (power on=Blue)
      AT/ATX mode switch
      Reset button
      Color
      Color Black C
      Dimensions
      Dimensions 357 x 230 x 88
      Weight
      Weight 4kg
      Environment
      Operating Temperature -20°C ~ 40°C (with TDP 80W processor)
      Humidity 5% ~95%, non-condensing

    • Ordering Info.

      Item No. Description
      FLEX-BX200-C246-XE/35-R10 2U AI Modular BOX PC, Intel® Xeon® E-2176G Processor (6-core, 12-thread, 3.7GHz) TDP 80W, 2xPCIex4 and 2xPCIex8 slots, 4x HDD bay, 350W PSU,R10

    • Package Contents

      • 1 x Power cord

      • 1 x HDD door key
