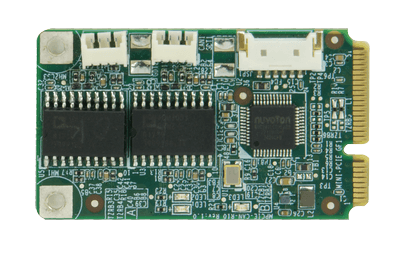

USB to dual isolated CANbus 2.0B Module

  • Overview

    ● PCI Express Mini Card full-size
    ● Minipcie interface (USB interface)
    ● Supports 2 x CANBus 2.0B port module with isolating
    ● Communication Baud Rate: 50/125/250/500/1000K @ 40meter
    ● OS support: Windows /Linux
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form Factor
      Form FactorPCI Express Mini Card
      Physical Characteristics
      Dimensions (LxWxH) (mm)30 X 50.9 X 6
      Net Weight50g
      Operating Temperature-20°C ~ 60°C
      Storage Temperature-30°C ~ 70°C
      Humidity5% ~95%, non-condensing
      Safety & EMCComplies with EN61000-4-5 2.5kV Surge protection
      Complies with IEC 60950-1:2005 + A1: 2009 + A2:2013
      2.5kV HiPOT protection
      Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
      Card Slot Interface
      PCIeminiPCIe full-size
    • Ordering Info.

      Item No. Description
      MPCIE-CAN-R10 PCI Express Mini Dual CAN Bus module, Full size, RoHs, R10
    • Package Contents

      • 1 x MPCIE-CAN module

      • 2 x DP9 cable

      • 1 x QIG
