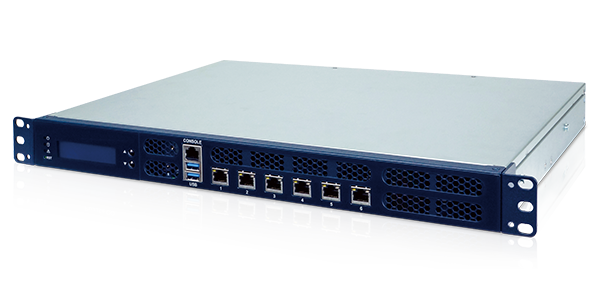

Overview
● AMD R-Series RX-421ND quad-core 2.1 GHz processor● 2 x DDR4 2400MHz ECC/Non-ECC UDIMM, up to 32 GB● Support 6 x GbE RJ45 via BROADCOM BCM 5720● 1 x RJ45 Console, 2 x USB 3.1 Gen 1 (5Gb/s), 2 x USB 2.0, LCM● 2 x 2.5” SATA 3.0 drive bay, 1 x PCIe Mini card (PCIe 2.0, USB 2.0, Micro SIM slot)● Support two PCIe x4 -
Features
Empowered by AMD® Embedded R-Series SoC
Equipped with a next-gen. AMD® R-Series RX-421ND quad-core 2.1 GHz CPU (turbo core up to 3.4 GHz) and up to 32 GB dual-channel DDR4 RAM, the PUZZLE-A002 enables lightning-fast multi-tasking with low power consumption and supports six ports of 1GbE (Broadcom 5720) configuration. With a hardware-accelerated AES-NI encryption engine, it also provides unmatched encryption performance to boost system performance while ensuring the safety of sensitive data.
Support Trusted Platform Module (TPM)
TPM (Trusted Platform Module) offers a broad portfolio of standardized security controllers to protect the integrity and authenticity of systems. With a secured key store and support for a variety of encryption algorithms, TPM security chips provide robust protection for critical data and processes through their rich functionality.(SLB9660 TT1.2/SLB9665 TT2.0)
Two PCIe x4 Slots
The PUZZLE-A002 features two PCIe (Gen3 x4) slots, allowing for installing full height, 200mm length Standard PCIe card, such as single/dual-port 10GbE NICs to accelerate applications that demand higher bandwidth such as virtualization, media workflows, and backup/ restoration tasks for an ever-growing amount of data.
-
Specifications
-
Hardware Spec.
Spec Item Description System CPU AMD R-Series RX-421ND processor, 4C, up to 3.4 GHz Chipset Integrated in CPU Memory 2 x DDR4 2400MHz ECC/Non-ECC UDIMM Memory Max. Up to 32GB Cooling method / System Fan 4 x Cooling Fans with Smart Fan Physical Characteristics Rack Height 1U Dimensions (LxWxH) (mm) 320x430x44.2 Net Weight 5kg Storage Storage 2 x 2.5” SSD/HDD Bay support SATA 3.0 (6 Gbps) 1 x eMMC 8 GB I/O Interface Ethernet 6 x LAN GbE RJ45 LAN ports (Broadcom BCM5720) I/O Interface 2 x External USB 3.2 Gen1x1 1 x Internal USB 3.2 Gen1x1 USB3.0 TypeA 2 x Internal USB 2.0 Expansion 2 x PCIe x4 2 x PCIe 3.0 x4 (FHHL) slots 1 x PCIe mini Card Slot PCIe 2.0, USB 2.0, Micro SIM slot 1 x M.2(NGFF) 2230 M.2 A key (PCIe 2.0/ USB 2.0) Power Input 100 V ~ 240 V Power Supply 250W Environment Operating Temperature 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature -20°C ~ 75°C (-4°F ~ 167°F) Humidity 5% ~ 90% non-condensing Certifications Safety & EMC CE/FCC/RoHS Compliant OS Support OS Support Linux Ubuntu 18.04.04
CentOS 7/Red Hat/Fedora EPEL -
Ordering Info.
Item No. Description PUZZLE-A002-MF1-R10 1U Rackmount Network Appliance with AMD® RX-421ND procrssor, two DDR4 slots, and six 1GbE , two PCIe x4 expansion, RoHS PUZZLE-A002-MF1/8G-R10 1U Rackmount Network Appliance with AMD® RX-421ND procrssor, 8GB DDR4, one 256GB SSD, six 1GbE , two PCIe x4 expansion, RoHS -
Package Contents
-
．1 x Power cord
-
．2 x Rack mounting ears
-
．6 x Screws for rack mounting ears
-
．USB to console cable (Option)
-
．RS-232 to console cable (Option)
-
-
-
