Overview●Intel® Xeon® W family processor supported●6 x PCIe Slot, up to 4 dual width GPU cards●Water cooling system on CPU●Support two U.2 SSD●Support one M.2 SSD M-key slot ( NVMe PCIe 3.0 x4 )●Support 10GbE network●IPMI remote management

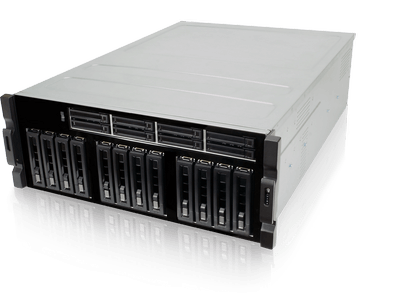

GRAND AI Training Server System
Expandable to Suit Your Needs
• Support up to 4 GPU card expansion slots (dual-width PCIe x8) and 2 single-width expansion slots (PCIe x4) for max. expansion ability to meet computing needs.
• Six backplane slots connected directly to the system host board to minimize latency.
High-Speed Storage Transmission
The U.2 SSD interface features high-speed, low-latency and low-power NVMe standard protocol, and PCIe 3.0 x4 channel. The theoretical transmission speed is up to 32Gbps, while SATA is only 6Gbps, which is 5 times faster than SATA.
High Capacity Storage
The GRAND-C422-20D supports M.2 NVMe SSD, U.2 SSD and SATA HDD/SSD. It has a built-in M.2 NVMe port and 20 HDD/SSD bays including two U.2 SDD slots. It supports M.2 solid-state disk which is the next-gen. small-sized form factor introduced by Intel® to offer better performance and power-saving.
Water Cooling System
IEI designs a higher-efficiency, compact water cooling system for the latest 14nm Intel® Xeon® Processor W family to cool the CPU and keep the high performance. The water cooling system can support up to 250W TDP.
Hyper Converged Infrastructure
Hyper converged infrastructure (HCI) is scale-out software-defined infrastructure that converges core data services on flash-accelerated, industry-standard servers, delivering flexible and powerful building blocks under unified management. Efficient, agile, flexible, and integrated, these systems allow for easy scale-out storage, cost-savings, and simplicity to manage your systems. It is the best solution for your data center.
AI Training System
The GRAND-C442 is dedicated for AI training tasks based on its wide range of slot support for storage expansion, accelerator cards, video capture, Thunderbolt ™ or PoE add-on cards for unlimited data acquisition possibilities. In order to develop a useful training model, those existing and widely used deep learning training frameworks are recommended. IEI offers different accelerator cards to facilitate AI inference computing. By combining Mustang-F100-A10, Mustang-V100-MX8 and GPU cards with the GRAND-C422, a complete AI ready solution is easily achieved.
Spec Item Description Form Factor Form Factor 4U, Rackmount System CPU Intel® Xeon® W Family Processors Chipset Intel® C422 Memory Max. Memory expandable up to: 256 GB (64 GB x 4) Cooling method / System Fan 2 x Smart Fan (12cm 12V DC) Physical Characteristics Rack Height 4U Dimensions (LxWxH) (mm) 176.15 x 480.94 x 644 Storage Storage 8 x 2.5” SSD/HDD Bay 12 x 3.5” HDD Bay 1 x M.2(NGFF) 20 x SATA 2 x U.2 I/O Interface Display Output 1 x VGA Ethernet 2 x LAN(1 x 1GbE RJ45 combo LAN ports / IPMI; 1 x 10GbE RJ45 LAN port) I/O Interface 1 x External RS-232 2 x External USB 2.0 4 x External USB 3.0 1 x Internal RS-232 1 x Internal USB2.0 1 x Internal USB3.0 Expansion 2 x PCIe x 4(PCIe 3.0) 4 x PCIe x 8(PCIe 3.0)
Item No. Description GRAND-C422-20D-S1A1-R10 20-bay(3.5" x12, 2.5" x 8) 4U Rackmount, Intel® Xeon® W-2123 with C422 chipset, 32G DDR4 w/ECC, 6 x PCIe expansion slot, and 1600W redundant PSU, RoHS GRAND-C422-20D-S1B2-R10 20-bay(3.5" x12, 2.5" x 8) 4U Rackmount, Intel® Xeon® W-2133 with C422 chipset, 64G DDR4 w/ECC, 6 x PCIe expansion slot, and 1600W redundant PSU, RoHS GRAND-C422-20D-S1C3-R10 20-bay(3.5" x12, 2.5" x 8) 4U Rackmount, Intel® Xeon® W-2145 with C422 chipset, 128G DDR4 w/ECC, 6 x PCIe expansion slot, and 1600W redundant PSU, RoHS GRAND-C422-20D-S1D3-R10 20-bay(3.5" x12, 2.5" x 8) 4U Rackmount, Intel® Xeon® W-2155 with C422 chipset, 128G DDR4 w/ECC, 6 x PCIe expansion slot, and 1600W redundant PSU, RoHS GRAND-C422-20D-S1E4-R10 20-bay(3.5" x12, 2.5" x 8) 4U Rackmount, Intel® Xeon® W-2195 with C422 chipset, 256G DDR4 w/ECC, 6 x PCIe expansion slot, and 1600W redundant PSU, RoHS
Ethernet cable x 2
Power cord x 2
Flat head screw (for 3.5” HDD)
Flat head screw (For 2.5” HDD)
