  • Overview

    ● Intel® Celeron® 3855U (1.6GHz, TDP=15W)
    ● Multiple COM ports (up to 14) with TX/RX signal LED indicator for data transmission indication
    ● Multiple USB & LAN
    ● 24-bit DIO
    ● M.2 M-key and dual full-size PCIe Mini slot for expansion
    ● Easy accessible storage
  • Features

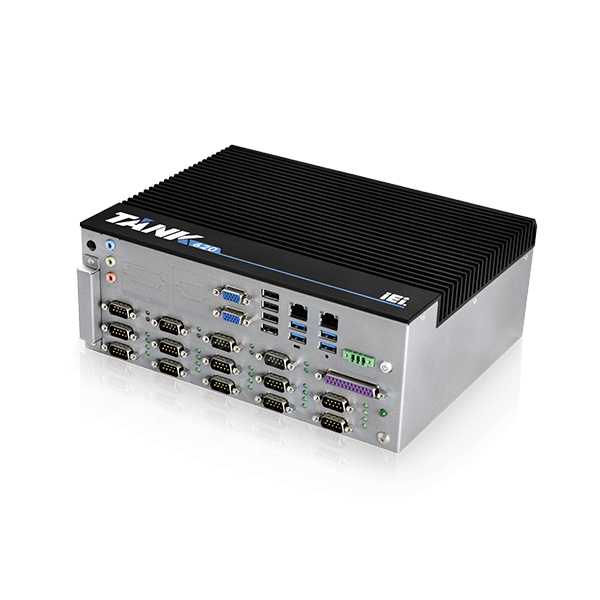

    tank-620-ult3 embedded system

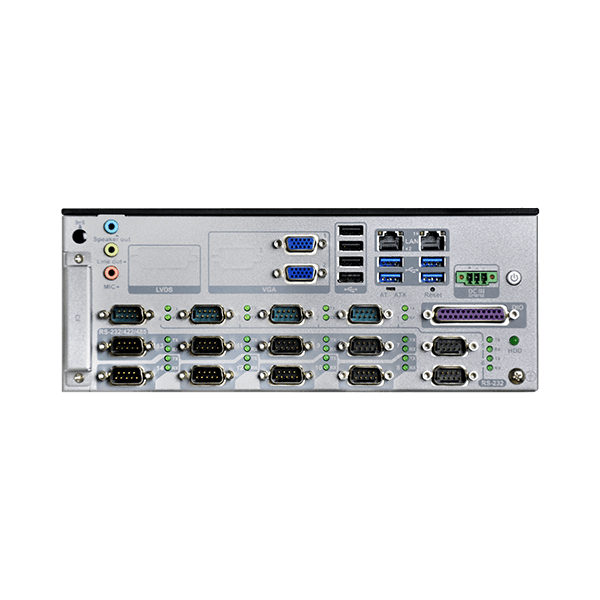

    Fully Integrated I/O


    Dimensions (Unit: mm)

  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form factor
      SBC Form Factor ●CPU:
      Intel® Celeron® 3855U (1.6GHz, TDP=15W)
      ●System Memory:
      1 x 260-pin DDR4 SO-DIMM
      1 x on-board DDR4 4GB pre-installed (system max: 32GB)
      Input: 3-pin terminal block: 9 ~ 36 V DC
      Consumption: 12V@2A
      Operating Shock: Half-sine wave shock 5G, 11ms, 100 shocks per axis
      Operating Vibration: MIL-STD-810G 514.6C-1 (SSD)
      Safety/EMC: CE/FCC
      I/O Interface
      I/O Ports ●4 x USB 3.0
      ●4 x USB 2.0
      ●Ethernet:2 x RJ-45
      PCIe GbE by Intel® I211 controller
      ●COM Port:
      6 x RS-232 (DB-9)
      8 x RS-232/422/485 ports with automatic flow control (DB-9)
      ●1 x 24-bit digital I/O (12-bit input/12-bit output)
      1 x Mic in, 1 x Speaker out, 1 x Line out
      ●Display:2 x VGA
      Expansion Slots
      Expansion Slots M.2:
      1 x M.2 2280 (M key,PCIe by 4, SATA co-lay SATA2)
      PCIe Mini:
      2 x Full-size PCIe mini slot (PCIe by1, USB2.0)
      Cooling method / System Fan Fanless
      Drive Bays 2 x 2.5" SATA 6Gb/s HDD/SSD Bay
      Buttons 1 x Power Button
      1 x Reset Button
      1 x AT/ATX Switch
      Indicators HDD,
      COM ports
      Physical Characteristics
      Construction Extruded aluminum alloy
      Color Black C + Silver
      Dimensions 260 x 200 x100 (WxDxH) (mm)
      Weight 4.4 kg/6.5 kg
      Operating Temperature -30°C ~ 70°C with air flow (SSD)
      Humidity 10% ~ 95%, non-condensing
    • Ordering Info.

      Item No. Description
      TANK-620-ULT3-CE/4G-R10 Fanless wide temperature embedded system with Intel® Celeron® 3855U 1.6GHz (dual-core, TDP 15W), on-board 4GB DDR4 memory, 9 V~36V DC, with USB, dual VGA, dual Intel® PCIe GbE, COM, DIO, RoHS
    • Package Contents

      • 1 x Mounting bracket

      • 1 x Chassis Screw
