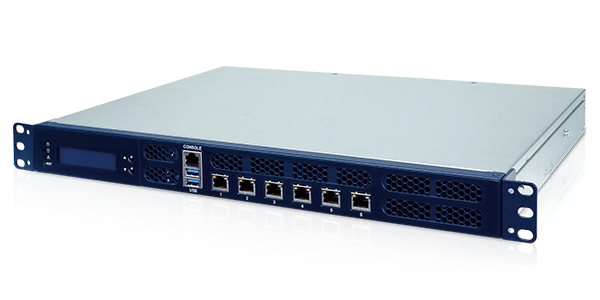

Overview● 8th Generation IntelCore. i7/i5/i3, Pentiumor Celeron Processor● Support 6 x GbE RJ45 via IntelI211● 2 x 288-pin DIMM, DDR4 2400MHz Non-ECC/RDIMM, up to 32GB● 1 x RJ45 Console, 2 x USB 3.0, LCM● 1 x 2.5” SSD/HDD Bay, 1 x M.2 A-Key (SATA, USB 3.0), 1 x PCIe mini card (PCIe , SATA)● Support PCIe x16
IEI PUZZLE series is the next generation product of network appliance which includes a broad portfolio of x86- based and ARM-based network platform built with the latest generation Intel, AMD, Marvell, NXP or Cavium processors, and Aquantia, Intel, Broadcom, Mellanox network interface controllers. These products are built for proprietary network appliance and uCPE (Universal Customer Premise Equipment).
PUZZLE Series Ecosystem
PUZZLE is about the uCPE consists of software virtual network functions (VNFs) running on a standard operating system hosted on an open server. An ideal uCPE deployment supports a multi-vendor multi-component construction and enables rapid development as well as open multi-vendor systems.
PUZZLE Finder Software AP
PUZZLE Finder can help users quickly develop environment and network applications, and allow them to perform PUZZLE system management, resource monitoring, version maintenance, software installation, software update and gaining information of CPU, memory, Internet, etc.
Next Generation Firewall (NGFW)
Unified Threat Management (UTM)
Intrusion Detection System (IDS)
Application Delivery Controller
AI Ready Solution
PUZZLE series are AI hardware ready system ideal for deep learning inference computing to help you get faster, deeper insights into your customers and your business.
Spec Item Description System CPU Intel PentiumGold G5400T Processor, Intel® Gen8 Core™ i3-8100T processor Chipset Intel® H310 Memory 2 x DDR4 2400MHz Non-ECC UDIMM Memory Max. up to 32 GB Cooling method / System Fan 4x Cooling Fans with Smart Fan Physical Characteristics Rack Height 1U Dimensions (LxWxH) (mm) 430 x 320 x 44.2 Net Weight 5 kg Storage Storage 1 x 2.5” SSD/HDD Bay 1 x M.2(NGFF)(M.2 A key (PCIe & USB 2.0)) I/O Interface Ethernet 6 x LAN I/O Interface 1 x External RS-232 2 x External USB 3.0 2 x Internal USB2.0(Pin header) Expansion 1 x PCIe mini Card Slot 1 x PCIe x 16 Other Features TPM 1 x TPM 2.0 Pin header Power Input 100 V ~ 240 V Environment Operating Temperature 0 ~ 40°C (32 ~ 104°F) Storage Temperature -10°C ~ 50°C Humidity 5% ~ 90% non-condensing Certifications Safety & EMC CE / FCC
Item No. Description PUZZLE-IN002-i3T/8G-R10 1U Rackmount Network Appliance with Intel® Gen8 Core™ i3-8100T processor, 8GB DDR4, one 256GB SSD, six 1GbE , one PCIe x16 expansion, RoHS PUZZLE-IN002-i3T-R10 1U Rackmount Network Appliance with Intel® Gen8 Core™ i3-8100T processor, two DDR4 slots, and six 1GbE , one PCIe x16 expansion, RoHS PUZZLE-IN002-PGT/8G-R10 1U Rackmount Network Appliance with Intel® Gen8 Pentium® Gold G5400T processor, 8GB DDR4, one 256GB SSD, and six 1GbE , one PCIe x16 expansion, RoHS PUZZLE-IN002-PGT-R10 1U Rackmount Network Appliance with Intel® Gen8 Pentium® Gold G5400T processor, two DDR4 slots, and six 1GbE , one PCIe x16 expansion, RoHS
1 x Power cord
1 x Heatsink
2 x Rack mounting ears
6 x SCREW for Rackmounting ears
1 x USB to console cable (option)
1 x RS232 to console cable (option)
