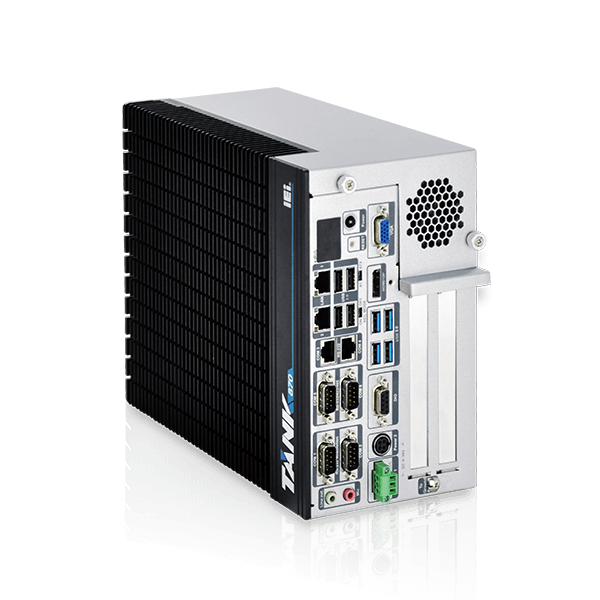

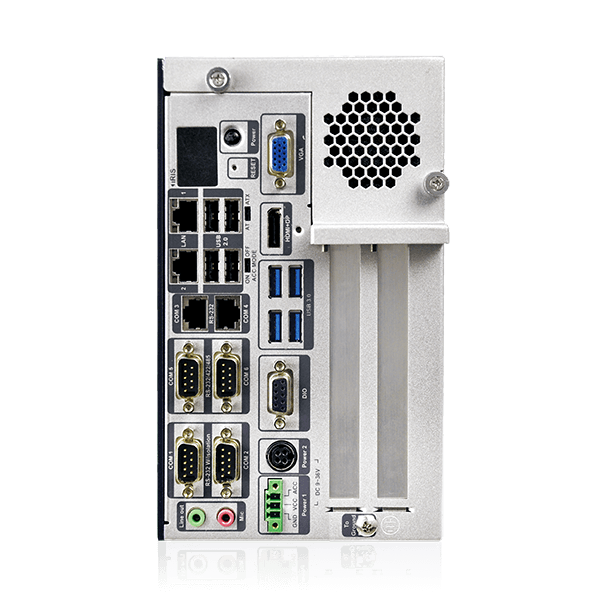

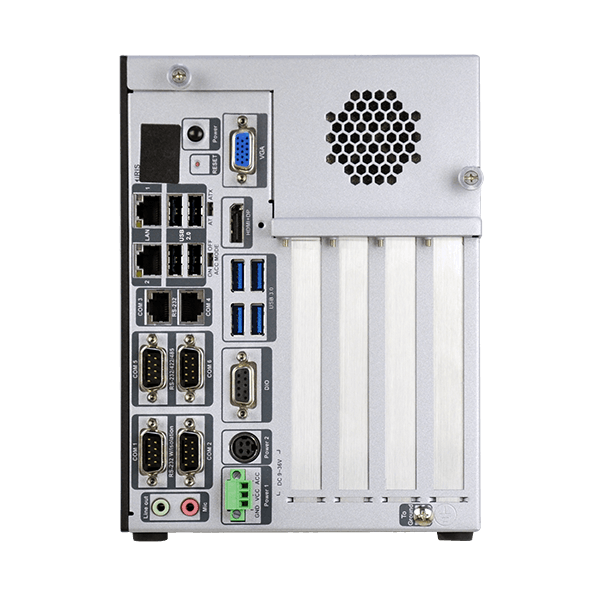

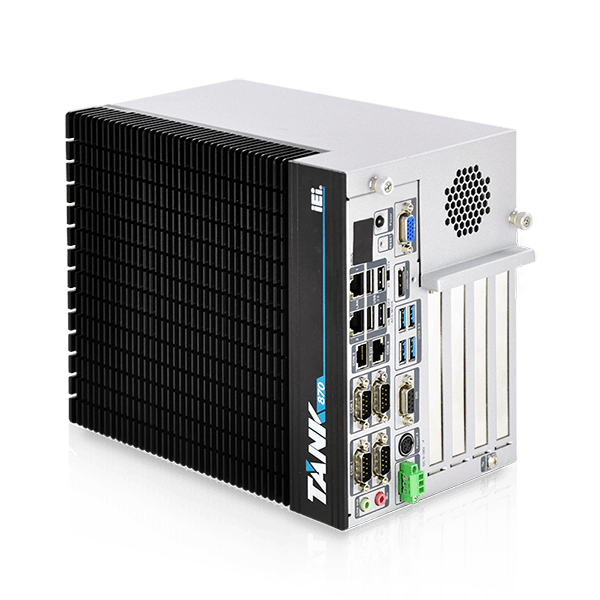

TANK-870-Q170-QGW

High-Performance 6th/7th Generation Intel® Core™ Processor, Fanless Embedded Computer

End of Life

TANK-870-Q170-QGW-embedded-system-box-PC
TANK-870-Q170-QGW-embedded-system-box-PC
TANK-870-Q170-QGW-embedded-system-box-PC
  • TANK-870-Q170-QGW-embedded-system-box-PC
  • TANK-870-Q170-QGW-embedded-system-box-PC
  • TANK-870-Q170-QGW-embedded-system-box-PC

End of Life Notice

* Effective Date: 2021/05/17

» Built-in QTS Gateway operating system that can be visualized immediately
» Supports remote connection (myQNAPcloud) and hybrid backup (Hybrid Backup Sync)
» QRM+ easily monitors IPMI equipment, servers, PCs and production line equipment
» Q’center centralizes management of multiple QNAP NAS and the IPC equipped with QTS Gateway
» Surveillance Station for remote video surveillance, 24/7 security
» Seven levels of data security protection to protect your valued data

Specifications

Hardware Spec.

Form factor
SBC Form Factor
  • CPU:
    Intel 7th Gen Core CPU &
    Intel® Core™ i7-6700TE (2.4 GHz, quad-core, TDP=35W)
    Intel® Core™ i5-6500TE (2.3 GHz, quad-core, TDP=35W)
  • Chipset: Intel® Q170
  • System Memory:
    2 x 260-pin DDR4 SO-DIMM, pre-installed one 4GB (system max: 32GB)
  • Power:
    Input - DC Jack: 9 V~36 V DC, Terminal Block: 9 V~36 V DC
    Consumption: 19 V@3.68 A (Intel® Core™ i7-6700TE with 8 GB memory)
    Internal Connector: 5V@3A or 12V@3A
  • Reliability:
    Operating Shock - Half-sine wave shock 5G; 11ms; 100 shocks per axis
    Operating Vibration - MIL-STD-810G 514.6 C-1 (with SSD)
    Safety/EMC - CE/FCC
  • IPMI: 1 x iRIS-2400 (optional)
System
Cooling method / System Fan Fanless
Chipset Intel® Q170
Drive Bays 2 x 2.5＂ SATA 6Gb/s HDD/SSD bay (RAID 0/1 support)
Indicator&Buttons
Buttons 1 x Power Button
1 x Reset Button
1 x AT/ATX Switch
1 x ACC Mode
I/O Interface
I/O Ports
  • USB: 4 x USB 3.0, 4 x USB 2.0
  • Ethernet:
    2 x RJ-45
    LAN1 (iRIS): Intel® I210 PCIe controller
    LAN2: Intel® I219LM PCIe controller
  • COM Port:
    4 x RS-232 (2 x RJ-45, 2 x DB-9 w/2.5KV isolation protection)
    2 x RS-232/422/485 (DB-9)
  • Digital I/O: 8 bit Digital I/O, 4 bit input / 4 bit output
  • Display:
    1 x VGA (Up to 1920 x 1200@60Hz)
    1 x HDMI/DP (Up to 3840x2160@30Hz / 4096×2304@60Hz)
    1 x iDP (optional)
  • Audio: 1 x Line-out, 1 x Mic-in
Environment
Operating Temperature i7-6700TE -20°C ~ 45°C with air flow (SSD)
i5-6500TE -20°C ~ 60°C with air flow (SSD)
Humidity 10% ~ 95%, non-condensing
Physical Characteristics
Construction Extruded aluminum alloys
Dimensions
Dimensions 2-slot: 121.5 x 255.2 x 205 (WxDxH) (mm)
4-slot: 154.8 x 255.2 x 205 (WxDxH) (mm)
Weight
Weight 2-slot: 4.2 kg/6.3 kg
4-slot: 4.5 kg/6.5 kg
Color
Color Black C + Silver
Expansion Slots
Expansion Slots
  • PCIe Mini:
    1 x Half-size PCIe Mini slot
    1 x Full-size PCIe Mini slot (supports mSATA, colay with SATA)
  • Backplane:
    2-slot model: 1 x PCIe x16, 1 x PCI
    2-slot model: 2 x PCIe x8
    4-slot model: 2 x PCIe x8, 2 x PCI, 1 x Full-size PCIe Mni
    4-slot model: 1 x PCIe x16, 3 x PCI, 1 x Full-size PCIe Mni

Ordering Information

TANK-870-Q170-QGW-2A-R11 Ruggedized Fanless embedded system with Intel® Core i5-6500TE 2.3GHz, (up to 3.3 GHz, Quad Core, TDP 35W), 8GB DDR4 pre-installed memory, 2 x PCIe by 8 expansion, VGA/HDMI+DP/iDP, iRIS-2400 optional, 9~36V DC, with QTS-Gateway, RoHS

Package Contents

Package Content

  • 1 x Chassis Screw

  • 1 x Mounting Bracket
