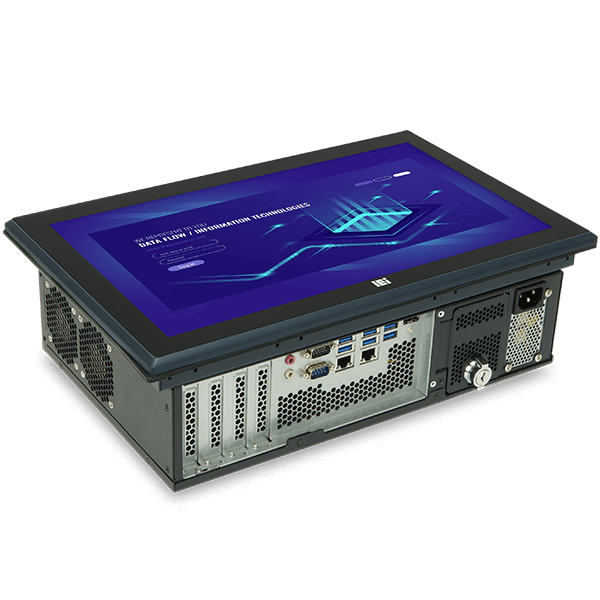

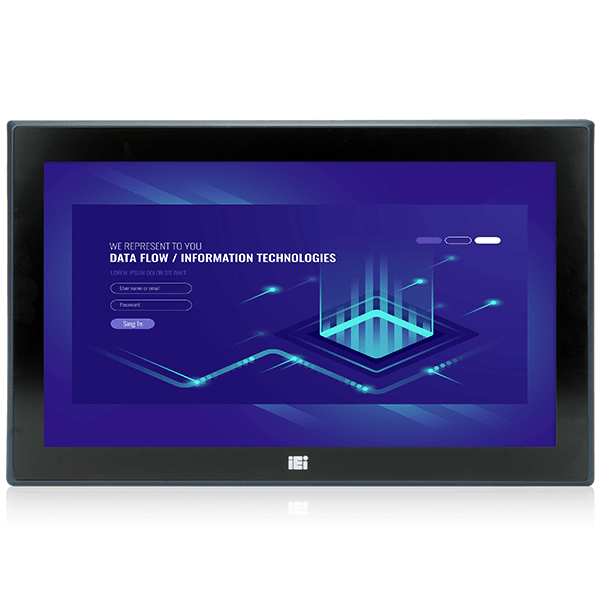

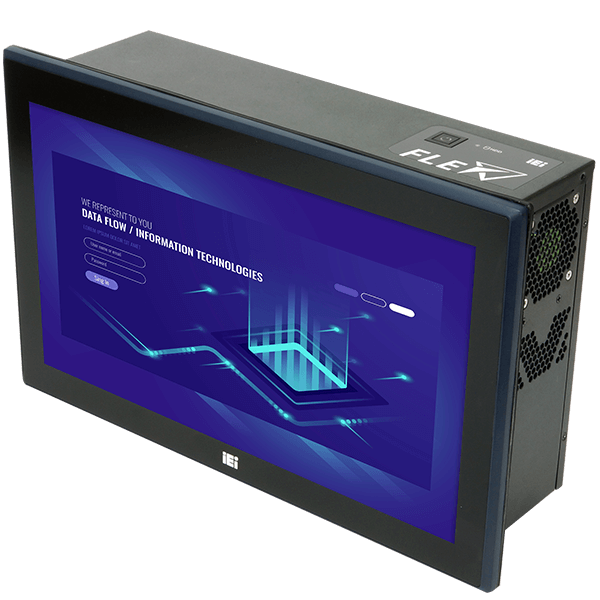

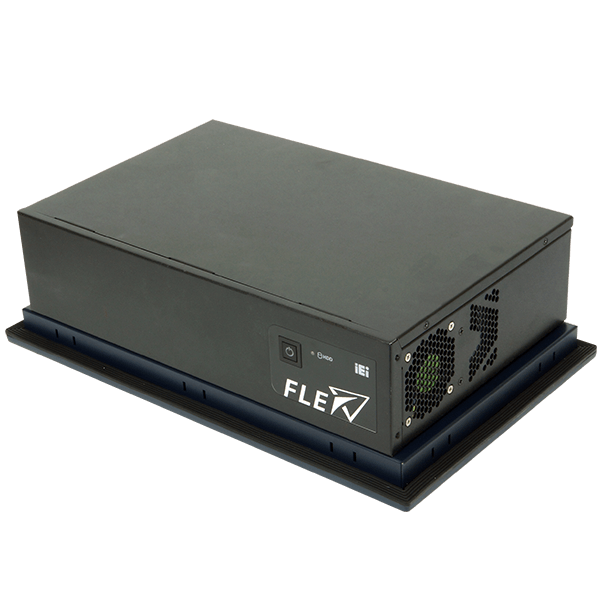

PPC-FW15C-Q370

15.6” Intel® Coffee Lake panel PC

  • Overview

    ● 15.6” Panel PC with 8th Generation LGA 1151 Intel® Core™ i7/i5/i3 and Pentium® processor
    ● Four hot-swappable and accessible HDD drive bays, support RAID 0/1/5/10
    ● Two PCIe 3.0 by 4 and two PCIe 3.0 by 8 slots
    ● Dual M.2 2280 PCIe Gen 3.0 x4 NVMe™ SSD support
    ● QTS-Gateway support
  • Features

    PPC-Fxx-Q370-panel-pc

    IEI AI Ready Solution Accelerates Your AI Initiative

    AI Ready Solution Accelerates Your AI Initiative - openvino toolkit

    IP66 Front Panel Protection

    ● PCAP touchscreen to front aluminum bezel with waterproof glue dispensing
    ● Internal dust sealing poron from LCD to the touchscreen
    ● Rubber sealing for mounting to the equipment

    Test for protection against dust

    Test for protection against dust

    Test for protection against water

    Test for protection against water


    Anti-glare and UV-resistant Touch Screen Ideal for Outdoor Applications

    AG panel PC

    ● Blocks UV wavelengths less than ≈340nm
    ● Meets ASTM G154 performance criteria Cycle 1 for 1000 hours

    UV-resistant

    Explore AI Solutions

    AOI Defect Classification

    panel-pc-aoi-defect

    Facial Recognition at Retail

    PPC-Fxx-Q370-panel-pc-facial-recognition

    Machine Vision for Sorting and Grading of Agricultural Products

    PPC-Fxx-Q370-panel-pc-machine-vision

    I/O Interface

    PPC-Fxx-Q370-panel-pc-dimension
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Display
      Backlight MTBF(hrs) 50000
      Brightness(cd/m2) 400
      Contrast Ratio 500:1
      LCD Size 15.6”
      Max Resolution 1366x768
      Environment
      Humidity 5% ~95%, non-condensing
      IP Level IP66 compliant front panel
      Operating Temperature -20°C ~ 50°C (with SSD and TDP 65W processor)
      -20°C ~ 40°C (with HDD or add-on cards without fan)
      Safety & EMC CE, FCC, CCC
      Storage Temperature -30°C ~ 60°C
      Expansion Slots
      Expansion Slots 2 x PCIe 3.0 by 8 (by 16 slot)
      2 x PCIe 3.0 by 4 ( maximum card size supported: 68 mm x 167 mm)
      Form factor
      Form factor 8th Genertion Intel CoreTM i7/i5/i3 porcessors in the LGA 1151
      Intel® 300 Series Chipsets Q370
      I/O Interface
      Ethernet Intel® I211AT Ethernet controllers
      Other Features
      TPM Support(2x10pin, P=2.54mm)
      Physical Characteristics
      Color Front frame: Cyan-blue (PSM 296C); Others: Black C
      Cutout Dimensions 379.1x232.3
      Dimensions (LxWxH) (mm) 400x253x121
      Mounting Panel/Rack mount
      Net Weight 8.3
      Power
      Power Supply AC input ATX power supply
      1. 250 W power supply
      - Input: 115VAC~230VAC, 50/60Hz
      - Output (max.): 3.3V@12A, 5V@14A, 12V@25A, -12V@0.3A,+5Vsb@3A
      2. 350 W power supply (Build to Order)
      - Input: 115VAC~264VAC, 50/60Hz
      - Output (max.): 3.3V@14A, 5V@16A, 12V@29A, -12V@0.3A,+5Vsb@3A
      - Efficiency: Full load (100%) 87%, Typical load (50%) 90%, Light load (20%) 87%
      Storage
      Storage 4 x Hot-swappable SATA 6G/s HDD/SSD bay (support RAID 0/1/5/10)
      2 x M.2 M-key (2280, PCIe 3.0 x4), support NVMe SSD
      System
      Chipset Intel® 300 Series Chipsets Q370
      Cooling method / System Fan System fan
      CPU 8th Generation LGA1151 Intel® Core™ i7/i5/i3 and Pentium® CPU
      Memory Max. Two 288-pin 2666/2400 MHz dual-channel unbuffered DDR4 SDRAM DIMM slots (system max. 64 GB)
      Touch
      Touch Controller EETI EXC3188
      Touch Screen 10-point Projected capacitive touch window, 6H
      (Anti-UV, Anti-glare Surface)
      I/O Interface
      I/O Interface 1 x AT/ATX switch
      1 x HDMI
      2 x LAN
      1 x Line out
      1 x Mic
      1 x Power Switch
      1 x Reset Button
      2 x RS-232
      6 x USB 3.0
    • Ordering Info.

      Item No. Description
      PPC-FW15C-Q370-i3/PC/25-R10 15.6" 400cd/m² 1366 x 768 AI modular Panel PC, Intel® Core™ i3-8100T Processor (4-core, 4-thread, 3.10 GHz) TDP 35W, two PCIe x4 and two PCIe x8 slots, four HDD bays, 250W PSU, R10
      PPC-FW15C-Q370-i5/PC/25-R10 15.6" 400cd/m² 1366 x 768 AI modular Panel PC, Intel® Core™ i5-8500T Processor (6-core, 6-thread, 2.1 GHz) TDP 35W, two PCIe x4 and two PCIe x8 slots, four HDD bays, 250W PSU, R10
      PPC-FW15C-Q370-i7/PC/25-R10 15.6" 400cd/m² 1366 x 768 AI modular Panel PC, Intel® Core™ i7-8700T Processor (6-core,12-thread,2.4 GHz) TDP 35W, two PCIe x4 and two PCIe x8 slots, four HDD bays, 250W PSU, R10
      PPC-FW15C-Q370-P/PC/25-R10 15.6" 400cd/m² 1366 x 768 AI modular Panel PC, Intel® Pentium® Gold G5400T Processor (2-core, 4-thread, 3.10 GHz) TDP 35W, two PCIe x4 and two PCIe x8 slots, four HDD bays, 250W PSU, R10
    • Package Contents

      • Power cord

      • HDD door key
