HYPER-RK39

PICO-ITX SBC with Rockchip RK3399 Processor, 2GB LPDDR3, 16GB eMMC Flash, HDMI, eDP, GbE LAN, PCIe mini, USB 3.0, USB 2.0, COM, RoHS

  • Overview

    ● Pico-ITX SBC supports Rockchip RK3399
    ● HDMI and eDP dual display support
    ● OS: Android 7.1
  • Features

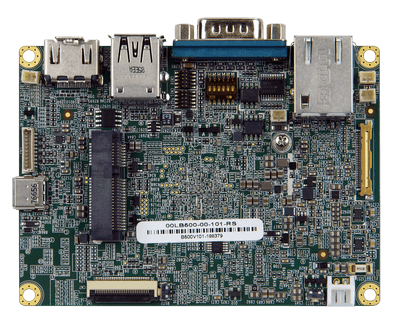

    HYPER-RK39-pico-itx-SBC

    HYPER-RK39

    The new released IEI HYPER-RK39 Pico-ITX SBC is designed with compact size and equipped with Rockchip RK3399 chipset, providing onboard 16GB eMMC and 2GB LPDDR3 memory. It also features 4K HDMI and eDP dual display to make it ideal for intelligent digital signage, kiosk and POS applications. For easier customization, the HYPER-RK39 is pre-installed with Android 7.1 allowing you to develop your own applications to meet various demands.

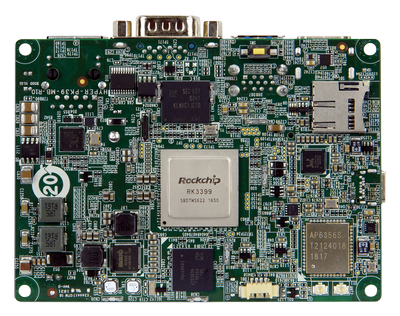

    RockChip RK3399 Processor

    Overview

    ● CPU: Rockchip RK3399 (Dual-core Cortex-A72 up to 1.8GHz + Quad-core Cortex-A53 up to 1.5GHz)
    ● Mali-T864 GPU (45% more than Mali-T628)
    ● 4K UHD H265/H264/VP9
    ● Dual USB Type-C and USB 2.0
    ● HDMI 2.0a with HDCP 2.2.

    ROCK-RK3399-overview
    Powerful, but low energy

    Powerful, but low energy

    Normally, the CPU will run A53 for low power consumption. If the application needs more computing power, A72 CPU will increase performance by 50%.

    +45% performance than Mali-T628

    RK3399 has more powerful GPU and supports 4K resolution video decode.

    +45% performance than Mali-T628
    Supported OS

    Supported OS

    IEI products with RK3399 family CPU support OS with full API/SDK, making it easy to develop your own application on Android environment.
    • Android 7.1 (Android 8.1 coming soon)

    Applications for RK3399

    RK3399 has features of high performance, high expansion, all-round application and it will empower AI and assist the layout of industry products.

    application

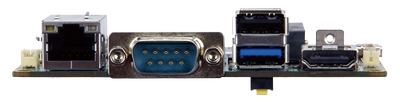

    I/O Interface

    HYPER-RK39-IO
    HYPER-RK39-features

    Dimension

    HYPER-RK39-SBC-Dimension
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Dimensions
      Dimensions 100mm x 72mm
      Display
      Display Output 1 x HDMI out
      1 x eDP port
      Environment
      Humidity 10% ~ 95%, non-condensing
      Operating Temperature -10°C ~ 50°C with air flow
      Safety & EMC CE/FCC compliant
      Storage Temperature -20°C ~ 60°C
      Form factor
      Form factor Pico-ITX SBC supports Rockchip RK3399
      HDMI and eDP dual display suppot
      OS: Android 7.1
      I/O Interface
      Audio I/F 1 x 2 pin for speaker (2W)
      1 x 10 pin (Mic in / Line out)
      Display Port 1 x HDMI out
      1 x eDP port
      Ethernet 1 x GbE RJ45 by RTL8211E
      Expansion 1 x Full-size PCIe Mini (reserved for WWAN)
      GPIO 8 bit GPIO (4 in / 4 out)
      I/O Interface 1 x USB 3.0 Type A
      1 x USB 2.0 Type A
      1 x USB 3.0 Type-C (for OS update)
      I²C 1 x I²C
      Power
      Power Jack 1 x 2 pin DC 12V in wafer connector
      System
      CPU Rockchip RK3399 (Dual-core Cortex-A72 up to 1.8GHz + Quad-core Cortex-A53 up to 1.5GHz)
      Memory Max. 2GB LPDDR3-1866
      Storage 16GB eMMC NAND FLASH
      Supported OS Android 7.1
      Watchdog Timer
      Watchdog Timer YES
      Weight
      Weight 80 g
    • Ordering Info.

      Item No. Description
      HYPER-RK39-R10PICO-ITX SBC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, Android 7.1, HDMI, eDP, GbE LAN, PCIe mini, USB3.0, USB2.0, COM, RoHS
      HYPER-RK39-R10-CNPICO-ITX SBC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, Android 7.1, HDMI, eDP, GbE LAN, PCIe mini, USB3.0, USB2.0, COM, Wi-Fi CN reg, ROHS
      HYPER-RK39-R10-EUPICO-ITX SBC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, Android 7.1, HDMI, eDP, GbE LAN, PCIe mini, USB3.0, USB2.0, COM, Wi-Fi EU reg, ROHS
      HYPER-RK39-R10-TWPICO-ITX SBC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, Android 7.1, HDMI, eDP, GbE LAN, PCIe mini, USB3.0, USB2.0, COM, Wi-Fi TW reg, ROHS
      HYPER-RK39-R10-USPICO-ITX SBC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, Android 7.1, HDMI, eDP, GbE LAN, PCIe mini, USB3.0, USB2.0, COM, Wi-Fi US reg, ROHS
    • Package Contents

      • 1 x Hyper-RK single board

      • 1 x Two pin to DC in power cable

      • 1 x Heatsink set

      • 1 x RTC battery
