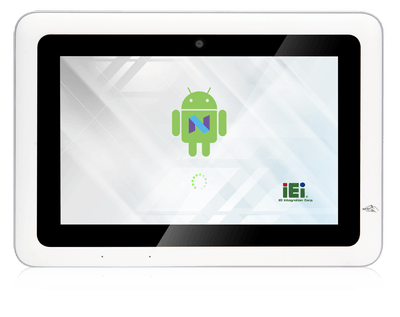

IOVU-210AD-RK39

10.1” RISC-based Panel PC

End of Life

End of Life Notice

* Effective Date: 2021/11/08

» 10.1” 1280x800 LCD
» Project Capacitive Touch Screen
» CPU: Rockchip RK3399 (Dual-core Cortex-A72 up to 1.8GHz + Quad-core Cortex-A53 up to 1.5GHz)
» OS: Android 7.1
» Boot Flash: 16GB eMMC Nand Flash
» RAM: 2GB LPDDR3

Hardware Spec.

Communication
Bluetooth Bluetooth V4.1
Wi-Fi 802.11 a/b/g/n/ac
Display
Brightness(cd/m2) 250 cd/m2 (typ.)
Contrast Ratio 800:1(typ.)
LCD Size 10.1”
Max Resolution 800(RGB) x 1280
Environment
Humidity 10% ~ 95%, non-condensing
Operating Temperature -10°C ~ 50°C with air flow
Safety & EMC CE/FCC Class B
Storage Temperature -20°C ~ 60°C
Form factor
Form factor 10.1” 1280x800 LCD
Project Capacitive Touch Screen
CPU: Rockchip RK3399 (Dual-core Cortex-A72 up to 1.8GHz + Quad-core Cortex-A53 up to 1.5GHz)
OS: Android 7.1
Boot Flash: 16GB eMMC Nand Flash
RAM: 2GB LPDDR3
Function Key
Function Key 1 x Reset button
I/O Interface
Ethernet 1 x GbE RJ45 by RTL8211E with PoE (PD)
I/O Ports 1 x RS-232 (DB-9)
1 x RS-232/422/485 (DB-9)
4 bit DIO (2 in, 2 out)
USB 1 x USB 3.0 Type A
2 x USB 2.0 Type A
Other Features
Audio 1 x Speaker (2W)
Camera Front 5-megapixel (CMOS)
Microphone 2 x Digital Mic in
RFID Reader 13.56 MHz ISO4443 A/B, read-write capable,
ISO 14443A (MIFARE), ISO 14443B (FeliCa)
Physical Characteristics
Color White
Dimensions (LxWxH) (mm) 293 x 209.5 x 44.5
Mounting VESA Mount 75mmx75mm
Net Weight 1.84 kg
Power
Input 9 V~30 V DC input (φ2.5/5.5mm DC Jack)
2 pin terminal block DC input
Storage
Storage 1 x Micro SD slot
System
Chipset SoC
Cooling method / System Fan Fanless
CPU Rockchip RK3399
(Dual-core Cortex-A72 up to 1.8GHz + Quad-core Cortex-A53 up to 1.5GHz)
On-board Memory 2GB LPDDR3-1866
Storage 16GB eMMC NAND FLASH
Touch
Touch Screen 10 points Project Capacitive
LED Function
LED Function 1 x Power LED
1 x Wi-Fi LED
1 x Bluetooth LED

Ordering Information

IOVU-210AD-RK39-R10-US 10.1" TFT-LCD; Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, WiFi/BT, IEEE 802.3at for POE, phone jack, 4xGPIO, Android 7.1, NFC, US reg, ROHS
IOVU-210AD-RK39-R10-TW 10.1" TFT-LCD; Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, WiFi/BT, IEEE 802.3at for POE, phone jack, 4xGPIO, Android 7.1, NFC, TW reg, ROHS
IOVU-210AD-RK39-R10-EU 10.1" TFT-LCD; Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, WiFi/BT, IEEE 802.3at for POE, phone jack, 4xGPIO, Android 7.1, NFC, EU reg, ROHS
IOVU-210AD-RK39-R10-CN 10.1" TFT-LCD; Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, WiFi/BT, IEEE 802.3at for POE, phone jack, 4xGPIO, Android 7.1, NFC, CN reg, ROHS

Package Contents

Package Content
  • 1 x IOVU-210AD Device
