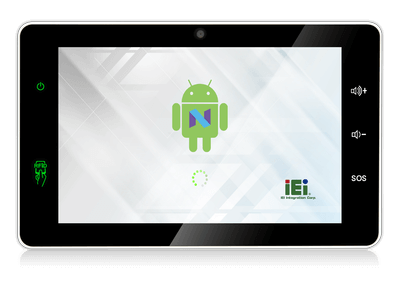

IOVU-210AR-RK39

10.1” RISC-based Panel PC

  • Overview
    ● 10.1” 1280x800 LCD
    ● Project Capacitive Touch Screen
    ● CPU: Rockchip RK3399 (Dual-core Cortex-A72 up to 1.8GHz + Quad-core Cortex-A53 up to 1.5GHz)
    ● OS: Android 7.1
    ● Boot Flash: 16GB eMMC Nand Flash
    ● RAM: 2GB LPDDR3-1866
    ● Grove Interface IoT Sensor connectors

  • Features
    IOVU-RK3399-Series-panel-pc-banner

    IOVU-210AR-RK39

    IEI announces three new generation IOVU RK39 Series – IOVU-207AR-RK39, IOVU-210AD-RK39 and IOVU-210AR-RK39, which are designed with different screen size from 7” to 10” and powered by RK3399 chipset. All new series integrate high capacity memory (16 GB eMMC and 2 GB LPDDR3), and operate under the easy-to-use Android OS for achieving optimized computing capability. The IOVU-207AR-RK39 is a 7” panel PC, which features one SOS key with red indicator bar to call help in emergency and two function keys with green indicator bar which can be customized by AP programming. The IOVU-210AD and the IOVU-210AR are 10.1” panel PCs. With the equipped PoE function, both data and power can be transferred through one single LAN cable to simplify the construction and offer dual power input. The difference between two models is the IOVU-201AD has bottom I/O port design, and the IOVU-210AR has rear I/O port design.

    This IOVU series can do much more in AI applications than you think. It can offer the face recognition technology for access control, and be used for digital signage or as a POS system to analyze consuming behaviors. Voice control is the best method for managing devices in building automation system. The IOVU series is built-in with powerful audio codec chip to support voice recognition.

    RockChip RK3399 Processor

    Overview

    ● CPU: Rockchip RK3399 (Dual-core Cortex-A72 up to 1.8GHz + Quad-core Cortex-A53 up to 1.5GHz)
    ● Mali-T864 GPU (45% more than Mali-T628)
    ● 4K UHD H265/H264/VP9
    ● Dual USB Type-C and USB 2.0
    ● HDMI 2.0a with HDCP 2.2.

    ROCK-RK3399-overview
    Powerful, but low energy

    Powerful, but low energy

    Normally, the CPU will run A53 for low power consumption. If the application needs more computing power, A72 CPU will increase performance by 50%.

    +45% performance than Mali-T628

    RK3399 has more powerful GPU and supports 4K resolution video decode.

    +45% performance than Mali-T628
    Supported OS

    Supported OS

    IEI products with RK3399 family CPU support OS with full API/SDK, making it easy to develop your own application on Android environment.
    • Android 7.1 (Android 8.1 coming soon)

    Applications for RK3399

    RK3399 has features of high performance, high expansion, all-round application and it will empower AI and assist the layout of industry products.

    application

    I/O Interface

    IOVU-210AR-panel-pc-IO
    AFOKAR-08A-panel-pc-interface

    Dimension

    IOVU-210AR-RK39-panel-pc-dimension

  • Specifications

    • Hardware Spec.

      Spec Item Description
      Communication
      Bluetooth Bluetooth V4.1
      Wi-Fi 802.11 a/b/g/n/ac
      Display
      Brightness(cd/m2) 250 cd/m2 (typ.)
      Contrast Ratio 800:1(typ.)
      LCD Size 10.1”
      Max Resolution 800(RGB) x 1280
      Environment
      Humidity 10% ~ 95%, non-condensing
      Operating Temperature -10°C ~ 50°C with air flow
      Safety & EMC CE/FCC Class B
      Storage Temperature -20°C ~ 60°C
      Form factor
      Form factor 10.1” 1280x800 LCD
      Project Capacitive Touch Screen
      CPU: Rockchip RK3399 (Dual-core Cortex-A72 up to 1.8GHz + Quad-core Cortex-A53 up to 1.5GHz)
      OS: Android 7.1
      Boot Flash: 16GB eMMC Nand Flash
      RAM: 2GB LPDDR3-1866
      Grove Interface IOT Sensor connectors
      Function Key
      Function Key 1 x Reset button
      2 x Volume key ( up / down) on screen
      1 x SOS key on screen
      I/O Interface
      Ethernet 1 x GbE RJ45 by RTL8211E with PoE (PD)
      1 x GbE RJ45 by RTL8211E
      I/O Ports 1 x RS-232 (4 pin terminal block)
      1 x RS-232/422/485 (4 pin wafer connector)
      1 x 4 bit (2 in, 2 out)
      2 x 2 bit (1 in, 1 out)
      3 x I²C sensor connectors (3V)
      USB 1 x USB 3.0 Type A
      1 x USB 2.0 Type A
      Other Features
      Audio 2 x Speaker (1.5W)
      Camera Front 5-megapixel (CMOS)
      Microphone 1 x Digital Mic in
      RFID Reader 13.56 MHz ISO4443 A/B, read-write capable,
      ISO 14443A (MIFARE), ISO 14443B (FeliCa)
      Physical Characteristics
      Color White
      Dimensions (LxWxH) (mm) 282.5 x 174.3 x 26.8
      Mounting Panel mount, In wall cage
      Net Weight 0.85 kg
      Power
      Input 9 V~30 V DC input (φ2.5/5.5mm DC Jack)
      Storage
      Storage 1 x Micro SD slot
      System
      Chipset SoC
      Cooling method / System Fan Fanless
      CPU Rockchip RK3399
      (Dual-core Cortex-A72 up to 1.8GHz + Quad-core Cortex-A53 up to 1.5GHz)
      On-board Memory 2GB LPDDR3-1866
      Storage 16GB eMMC NAND FLASH
      Touch
      Touch Screen 10 points Project Capacitive
      LED Function
      LED Function 1 x Power LED
      1 x RFID LED

    • Ordering Info.

      Item No. Description
      IOVU-210AR-RK39-R10-CN 10.1" TFT-LCD; Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, Camera, WIFI/BT, POE 802.3at, COM port, DIO, 4pin sensor connector, Front Camera, NFC, CN reg, ROHS
      IOVU-210AR-RK39-R10-EU 10.1" TFT-LCD; Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, Camera, WIFI/BT, POE 802.3at, COM port, DIO, 4pin sensor connector, Front Camera, NFC, EU reg, ROHS
      IOVU-210AR-RK39-R10-TW 10.1" TFT-LCD; Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, Camera, WIFI/BT, POE 802.3at, COM port, DIO, 4pin sensor connector, Front Camera, NFC, TW reg, ROHS
      IOVU-210AR-RK39-R10-US 10.1" TFT-LCD; Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, Camera, WIFI/BT, POE 802.3at, COM port, DIO, 4pin sensor connector, Front Camera, NFC, US reg, ROHS

    • Package Contents

      • 1 x IOVU-210AR Device

      • 1 x Wall mount bracket

      • 1 x Screw set
