AFL3-W19A-AL

Intel® Celeron® J3455 ( quad core , 1.5GHz up to 2.3 GHz)

End of Life

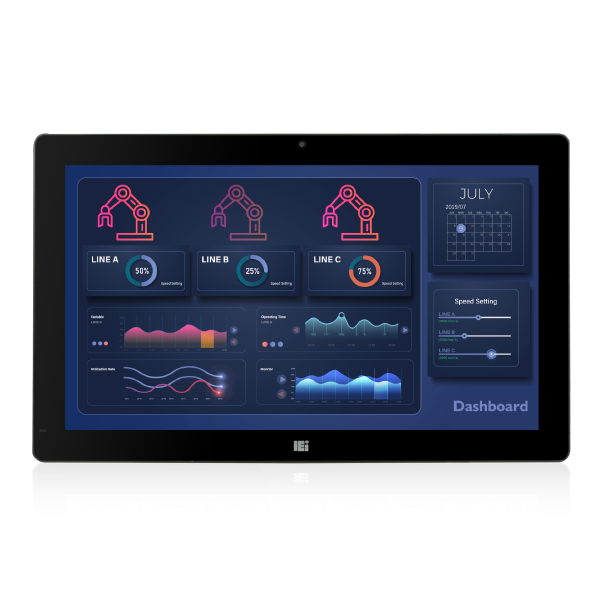

AFL3-W19A-AL industrial panel PC
AFL3-W19A-AL industrial panel PC
AFL3-W19A-AL industrial panel PC
  • AFL3-W19A-AL industrial panel PC
  • AFL3-W19A-AL industrial panel PC
  • AFL3-W19A-AL industrial panel PC

End of Life Notice

Effective Date: 2021/09/16

» 18.5” light industrial interactive panel PC
» Intel Apollo lake processor
» Wide range DC input with lockable DC jack
» Selectable AT/ATX power mode
» Built-in speakers
» One mSATA slot
» One HDMI output
» IP64 compliant front panel
» IEI One Key Recovery solution alllows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)

Light Industrial Panel PC With PoE Solution

Introducing the AFL3 Touch Panel PC Series with PoE Support|Product Introduction

Hardware Feature

The Intel® Celeron® processor J3455 Apollo Lake, empowers real-time computing in digital surveillance, new in-vehicle experiences, advancements in industrial and office automation, new solutions for retail and medical, and more. These processors are based on the Goldmont architecture, utilizing Intel’s industry-leading 14 nm process technology.

AFL3-W07A-AL IP65 panel pc hardware feature

IEEE 802.3 at Standard PoE PD Panel PC

PoE allows electronic devices to receive both power and data through one Ethernet plug-in, which means less cabling and less cost is required for factory automation.

IEEE 802.3 at Standard PoE PD Panel PC

Multi-touch Screen for Industry

IEI’s AFL3 series integrated with PCAP glass touch screen is extremely easy to clean and very resistant to scratches.
Notes: The linen gloves touch function for optional

-20°C ~ 50°C Fanless Design

AFL3-W07A-AL_Light-industrial-Panel-PC, -20°C ~ 50°C Fanless Design

Suitable for Semi-outdoor Environment

IP65-rated front panel for water and dust resistance

IP65 panel pc for Semi-outdoor Environment

Anti-glare (AG) and UV-resistant Touch Screen

The screen features anti-glare and anti-UV coating, which can reduce the reflection rate from 8% to 1% and effectively slow the aging of the screen.

Integrated I/O

AFL3-W19A-AL industrial panel pc Integrated integrated I/O

Hardware Spec.

Communication
Bluetooth Bluetooth V4.0
Wireless IEEE 802.11a/b/g/n/ac
Environment
Humidity 10% to 95% (non-condensing)
Operating Temperature -15ºC ~ 50ºC
Storage Temperature -20°C~60°C
I/O Interface
Audio AMP 3W + 3W (internal speaker)
Audio Codec ALC269
Ethernet 2x PCIe GbE by Intel® i211 controller
RAM One 204-pin 1600/1333 MHz single-channel DDR3L
SO-DIMM, 4GB pre-installed (system max. 8GB)
LCD
Backlight MTBF 30000 (LED backlight)
Brightness (cd/m2) 250
Contrast Ratio 1000:1
LCD Color 262K
Pixel Pitch (mm) 0.240 (H) x 0.240 (V)
Resolution 1366 x 768 (16:9)
Size 18.5”
Viewing Angle (H-V) 170º / 160º
Other Features
Camera 2-megapixel with low light function
Microphone digital microphone
Power
Power consumption 12V@3.2A
System
CPU Intel® Celeron® J3455 ( quad core , 1.5GHz up to 2.3 GHz)
Storage (1) 1 x 2.5” SATA 3Gb/s HDD bay
(2) 1 x mSATA slot
Touch
Touch Controller EETI EXC3180
Touch Screen Projected capacitive type with USB interface (anti-UV)
Weight
Weight 6.3/9
I/O Interface
I/O Interface 1 x AT/ATX switch
1 x HDMI
2 x LAN(GbE)
1 x Line out
1 x Power In
1 x Power Switch
1 x Reset Button
1 x RS-232(RJ45 (RI/5V/12V))
1 x RS-422/485(RJ45 (RI/5V/12V))
2 x USB 2.0
2 x USB 3.0

Ordering Information

AFL3-W19A-AL-J2/PC/4G-R10 Wide 18.5” 250 cd/m² 1366x768 Panel PC with with Intel® Celeron® Processor J3455 (10W) on-board Processor (Apollo lake), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone,R10

Package Contents

Package Content
  • 4 x Round head machine screw

  • 4 x Pan head machine screw
