NANO-GLX

EPIC SBC supports AMD® Embedded G-Series SoC with VGA/HDMI/LVDS, Dual PCIe GbE, USB 3.0, PCIe Mini, SATA 6Gb/s, mSATA, COM, HD Audio and RoHS

  • Overview

    ● AMD Embedded G-Series LX Family SOCs which is compatible with AMD Embedded G-Series “eKabini” and “Steppe Eagle” platform
    ● Highly-competitive price, performance profiles and low power attributes
    ● AMD Embedded G-Series LX Family SOCs support up to two display interfaces, enabling flexible multi-display configurability
  • Features

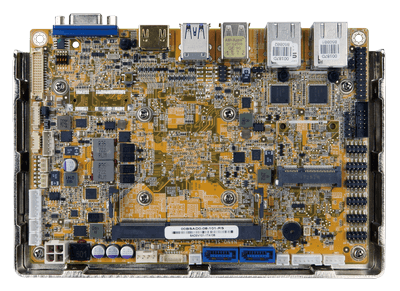

    NANO-GLX AMD SBC

    I/O

    NANO-GLX-SBC-IO-Features

    Application

    NANO-GLX EPIC SBC for parking system
    AMD G-series CPU

    Lower thermal design with dual display solution

    AMD Embedded G-Series LX Family SOCs which is compatible with AMD Embedded G-Series "eKabini" and "Steppe Eagle" platform Highly-competitive price, performance profiles and low power attributes AMD Embedded G-Series LX Family SOCs support up to two display interfaces, enabling flexible multi-display configurability

    NANO-GLX-SCREW-picture

    Dimensions (Unit: mm)

    NANO-GLX AMD SBC Dimensions
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Dimensions
      Dimensions115mm x 165mm
      Display
      Display Output1 x VGA (up to 2048x1536@60Hz)
      1 x HDMI (up to 3840x2160@60Hz)
      1 x 18/24-bit dual-channel LVDS (up to 1920x1200@60Hz)
      Environment
      Humidity5% ~ 95%, noncondensing
      Operating Temperature0°C ~ 60°C
      Storage Temperature-10°C ~ 70°C
      I/O Interface
      EthernetLAN1: Intel® I210-AT PCIe controller with NCSIsupport.
      LAN2: Intel® I211-AT PCIe controller.
      I/O Interface1 x KB/MS (1x6 pin)
      4 x USB 2.0 (2x4 pin, P=2.0)
      1 x RS-422/485 (1x4 pin, P=2.0)
      5 x RS-232 (2x5 pin, P=2.0)
      2 x SATA 6Gb/s with 5V SATA power connector (no RAID)
      I/O Interface
      I/O Interface1 x Digital I/O(8-bit digital I/O (2x5 pin))
      2 x Ethernet
      1 x Expansion( Full-size PCIe Mini card slot
      (supports mSATA co-lay SATA port 2))
      1 x Front panel(1 x Power LED & HDD LED (1x6 pin)
      1 x Power button (1x2 pin)
      1 x Reset button (1x2 pin))
      1 x HDMI(up to 3840x2160@60Hz)
      1 x I²C(1x4 pin)
      1 x Internal Audio(2x5 pin)
      5 x Internal RS-232(2x5 pin, P=2.0)
      1 x Internal RS-422/485(1x4 pin, P=2.0)
      4 x Internal USB 2.0(2x4 pin, P=2.0)
      1 x KB/MS(1x6 pin)
      2 x SATA 6Gb/s(With 5V SATA power connector (no RAID))
      1 x SMBus(1x4 pin)
      2 x USB 2.0
      2 x USB 3.0
      1 x VGA(up to 2048x1536@60Hz)
      Internal Connector
      Internal Connector1 x S/PDIF (1x4 pin)
      1 x TPM (2x10 pin)
      1 x System smart fan (1x4 pin)
      Option
      iRIS1 x iRIS-1010 slot (support by request)
      Power
      Power consumption12V@1.02A (AMD GX-415GA 1.5GHz CPU with 1600 MHz 8 GB DDR3 memory)
      Power Supply12V only DC input
      1 x Internal power connector (2x2 pin)
      Support AT/ATX mode.
      System
      CPUAMD® Embedded G-Series “LX” SoC
      GX-218GL on-board Soc (1.8GHz, dual core, 1MB cache, TDP=15W)
      GX-215GL on-board Soc (1.5GHz, dual core, 1MB cache, TDP=15W)
      GX-210KL on-board Soc (1.0GHz, dual core, 1MB cache, TDP=4.5W)
      Memory Max.One 204-pin 1600/1333 MHz singlechannel DDR3 & DDR3L SDRAM unbuffered
      SO-DIMM slot supports up to 8 GB
      Watchdog Timer
      Watchdog Timersupport 1~255 sec. system reset
      Weight
      WeightNW: 350g
    • Ordering Info.

      Item No. Description
      NANO-GLX-2101-ECO-R10EPIC SBC supports AMD® 28nm dual core GX-210KL 1.0GHz (4.5W)on-board SoC with VGA/HDMI/LVDS, Dual PCIe GbE, USB 3.0, Dual PCIe Mini, SATA 6Gb/s, mSATA , COM and Audio, ECO packing and RoHS
      NANO-GLX-2101-R10EPIC SBC supports AMD 28nm dual core GX-210KL 1.0GHz (4.5W)on-board SoC with VGA/HDMI/LVDS, Dual PCIe GbE, USB 3.0, Dual PCIe Mini, SATA 6Gb/s, mSATA , COM and Audio and RoHS
    • Package Contents

      • 1x NANO-GLX single board computer with heatspreader

      • 1 x Audio cable

      • 2 x RS-232 cable 1 x Power cable

      • 2 x SATA with power cable kit

      • 1 x QIG.
