AFL3-12C-ULT3

Intel® Core™ i5 and Celeron® ULT Processor

  • Overview

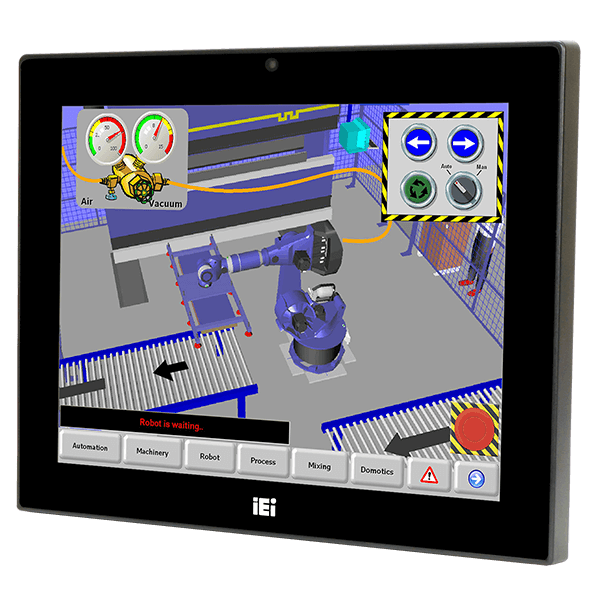

    ● 12.1” light industrial interactive panel PC
    ● Intel 6th Generation Skylake
    ● Wide range DC input with lockable DC jack
    ● Selectable AT/ATX power mode
    ● Built-in speakers
    ● One mSATA slot
    ● One HDMI output
    ● IP64 compliant front panel
    ● IEI One Key Recovery solution alllows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)

  • Features

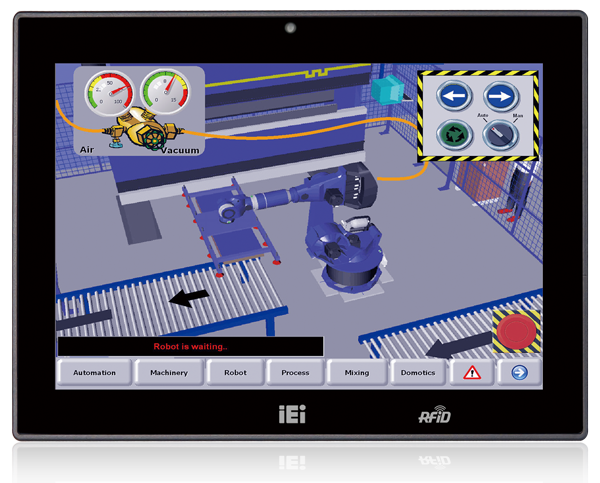

    IEI AFL3-12C-ULT3 light industrial panel PC banner

    I/O Interface

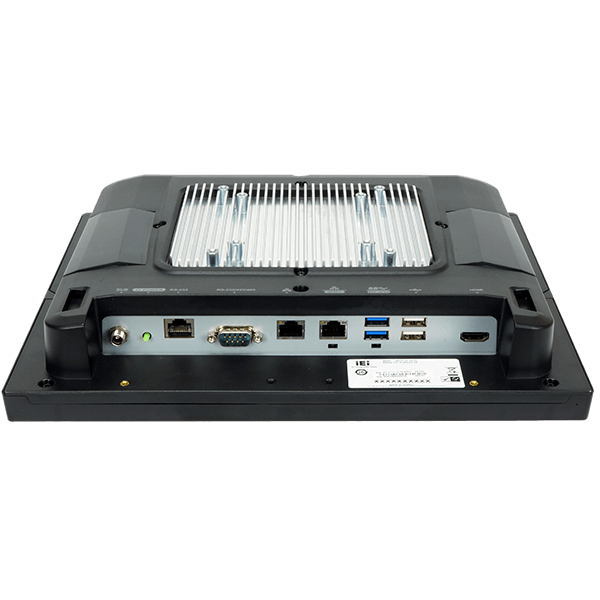

    AFL3-12C-ULT3 panel pc IO interface

    Dimension

    AFL3-12C-ULT3 panel pc dimension

  • Specifications

    • Hardware Spec.

      Spec Item Description
      Communication
      Bluetooth Bluetooth V4.0
      Wireless IEEE 802.11a/b/g/n/ac
      Environment
      Humidity 10% to 95% (non-condensing)
      Operating Temperature -20°C ~ 50°C
      Storage Temperature -20°C~60°C
      I/O Interface
      Audio AMP 3W + 3W (internal speaker)
      Audio Codec ALC892
      Ethernet 2x PCIe GbE by Intel® i211 controller
      RAM One 260-pin 2133MHz single-channel, 4GB
      DDR4L SO-DIMM pre-installed (system max. 8GB)
      LCD
      Backlight MTBF 50000 (LED backlight)
      Brightness (cd/m2) 500
      Contrast Ratio 700:1
      LCD Color 16.2M
      Pixel Pitch (mm) 0.240 (H) x 0.240 (V)
      Resolution 1024 x 768 (4:3)
      Size 12.1""
      Viewing Angle (H-V) 160º / 160º
      Other Features
      Camera 2-megapixel with low light function
      Microphone digital microphone
      Power
      Power consumption 12V@6A
      System
      CPU 6th Generation Intel® Core™ i5 and Celeron® on-board processor
      Storage 2.5” SATA 3Gb/s HDD bay
      M.2 M key PCIe (2230)
      mSATA slot (PCIe/mSATA/USB)
      Touch
      Touch Controller EETI EXC3180
      Touch Screen Projected capacitive type with USB interface (anti-UV)
      Weight
      Weight 3/5.03
      I/O Interface
      I/O Interface 1 x AT/ATX switch
      1 x HDMI
      2 x LAN(GbE)
      1 x Power In
      1 x Power Switch
      1 x Reset Button
      1 x RS-232(DB-9 (RI/5V/12V))
      1 x RS-422/485(DB-9 (RI/5V/12V))
      2 x USB 2.0
      2 x USB 3.0

    • Ordering Info.

      Item No. Description
      AFL3-12C-ULT3-C/PC/4G-R10 12.1”500 cd/m² 1024x768 Panel PC with Intel® 14nm 6th Generation Mobile Celeron®3855U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone, with AG,R10
      AFL3-12C-ULT3-i5/PC/4G-R10 12.1”500 cd/m² 1024x768 Panel PC with Intel® 14nm 6th Generation Mobile Core™ i5-6300U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone, with AG,R10

    • Package Contents

      • 4 x Round head machine screw

      • 4 x Pan head machine screw

      • 1 x Power cord

      • 1 x Power adapter 63040-010096-100-RS
