WSB-BT

Full-size PICMG 1.0 CPU Card supports Intel® Celeron™ on-board SoC with VGA, iDP, Dual Intel® PCIe GbE, USB 3.0, PCIe Mini, SATA, mSATA, COM, CF, Audio and RoHS

  • Overview

    ● Full-size PICMG 1.0 with Intel® Celeron™ J1900 & N2807 on-board SoC
    ● Dual-channel 1066/1333MHz DDR3L SO-DIMM supports up to 8GB of memory
    ● Dual Gigabit Ethernet LAN controller
    ● SATA 3Gb/s, USB 3.0 5Gb/s, PCIe Mini, mSATA and CF card supported
    ● TPM v1.2 & 2.0 hardware security function supported by TPM module
    ● Stiffener bars
  • Features

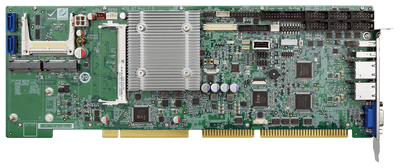

    WSB-BT Full-size PICMG 1.0 CPU Card
    WSB-BT single board computer features

    Dimensions

    WSB-BT single board computer dimensions
  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPUIntel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W)
      Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.3W)
      MemoryOne 204-pin 1333/1066MHz dual-channel DDR3L SDRAM unbuffered DIMM
      Memory Max.8GB (J1900) / 4GB (N2807)
      Physical Characteristics
      Dimensions (LxWxH) (mm)338 X 122
      Net Weight260
      Storage
      Storage2 x SATA :3Gb/s
      1 x mSATA :3Gb/s
      1 x CF Type II Card
      I/O Interface
      Display Output1 x VGA :up to 1920x1200@60Hz
      1 x LVDS :18/24-bit dual-channel (up to 1920x1200@60Hz)
      1 x iDP :for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60Hz)
      Ethernet2 x LAN :1 x Intel® I211-AT PCIe controller, 1 x Intel® I211-AT PCIe controller
      AudioDescription: 7.1 channel HD Audio supported by IEI AC-KIT-892HD kit
      I/O Interface4 x Internal RS-232 :2x5 pin, P=2.54
      2 x Internal RS-232/422/485 :2x5 pin, P=2.54
      1 x External USB 2.0
      1 x External USB 3.2 Gen1x1
      5 x Internal USB 2.0 :1 x 180° Type-A,4 X 2x4 pin,P=2.54
      1 x PS/2 :1x6 pin
      1 x LPT :2x13 pin
      Expansion1 x PCIe mini Card Slot
      Other Features
      TPM2x10 pin
      Power
      Power Consumption3.3V@0.009A, 5V@4.68A, 5Vsb@0.008A, 12V@1.143A
      (Intel® Celeron® J1900 1.99 GHz 10W CPU with 8GB 1600MHz DDR3L memory)
      Power Supply5V/12V, Support AT/ATX mode
      Environment
      Operating Temperature-20°C ~ 60°C
      Storage Temperature-30°C ~ 70°C
      Humidity5% ~ 95%, non-condensing
      Certifications
      Safety & EMCCE/FCC compliant
    • Ordering Info.

      Item No. Description
      WSB-BT-J19001-R10 Full-size PICMG 1.0 CPU card supports Intel® Celeron™ J1900 on-board SoC with VGA, iDP, Dual Intel® PCIe GbE, USB 3.0, PCIe Mini, SATA, mSATA, COM, CF, Audio and RoHS
      WSB-BT-N28071-R10 Full-size PICMG 1.0 CPU card supports Intel® Celeron™ N2807 on-board SoC with VGA, iDP, Dual Intel® PCIe GbE, USB 3.0, PCIe Mini, SATA, mSATA, COM, CF, Audio and RoHS
    • Package Contents

      • 1 x WSB-BT single board computer

      • 1 x Dual RS-232 cable with bracket

      • 1 x SATA cable

      • 1 x QIG
