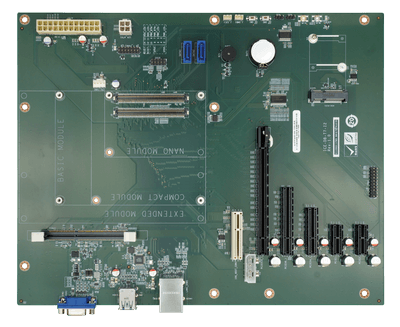

ICE-DB-T7-i2

Base Board for COM Express Type 7 Module COM.0 Rev. 2.1

  • Overview

    ● ATX form factor baseboard for COM.0 Rev. 3.0, pinout Type 7
    ● Support 1 x PCIe x8 for 10GbE PHY card
    ● Support 32 PCIe lanes
    ● Support PICMG EAPI R1.0
    ● Support IPMI 2.0 via iRIS-2400 module
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Dimensions
      Dimensions 304.8 mm x 243.8 mm (12" x 9.6")
      Display
      Display 1 x VGA from iRIS-2400
      Display Output 1 x VGA from iRIS-2400
      Environment
      Humidity 5% ~ 95%, non-condensing
      Storage Temperature -40°C ~ 85°C
      I/O Interface
      GPIO 8-bit GPIO
      I/O Interface
      I/O Interface 1 x Ethernet(RJ-45)
      1 x Expansion / Front panel(Power LED, HDD LED, Speaker (Buzzer), Power Button, Reset Button)
      1 x I²C(1x4 pin wafer)
      2 x RS-232(from COM Express (only TX, RX, GND))
      2 x RS-232(from SIO)
      2 x SATA 6Gb/s
      1 x SMBus(1x4 pin wafer))
      4 x USB 3.0
      1 x VGA
      Option
      iRIS 1 x iRIS-2400 slot
      Power
      Power Supply ATX / AT Power Supply 24+4 pin
      Watchdog Timer
      Watchdog Timer Software programmable, supports 1~255 sec system reset
      Weight
      Weight GW:590g / NW:390g
    • Ordering Info.

      Item No. Description
      ICE-DB-T7-i2-R10 Baseboard for COM Express Type 7 Module COM.0 Rev. 2.1
    • Package Contents

      • 1 x COM Express Baseboard

      • 1 x Mini jumper pack

      • 1 x SATA cable (P/N: 32000-062800-RS)

      • 1 x QIG
