ICE-BDE-T7

COM Express Basic Size Type 7 Module Support, Intel® Broadwell-DE Processor D-1500

  • Overview

    ● COM Express basic size Type 7 module
    ● Intel® Xeon® D and Pentium® D SoC (up to 16 cores)
    ● Up to 32GB dual channel DDR4 at 1866/2133/2400MHz ECC (dependent on SoC SKU)
    ● Two 10G Ethernet and NC-SI support
    ● Up to 32 PCIe lanes (24 x Gen3, 8 x Gen2)
    ● GbE, two SATA 6Gb/s, four USB 3.0/2.0
  • Features

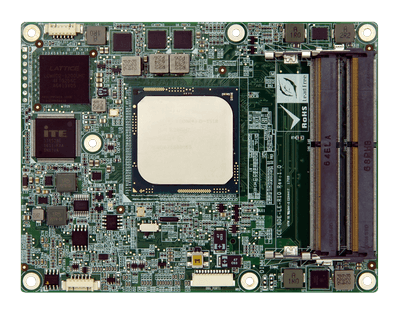

    ICE-BDE-T7-SBC-product-photo

    Dimension

    ICE-BDE-T7-single-board-computer-dimension
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Dimensions
      Dimensions 125 mm x 95 mm
      Environment
      Humidity 5% ~ 95%, non-condensing
      Operating Temperature -20°C ~ 60°C
      Safety & EMC CE/FCC compliant
      Storage Temperature -30°C ~ 70°C
      I/O Interface
      Ethernet Intel® I210
      2 x 10G KR interfaces
      10G sideband signals
      (10G_INT 10G_PHY_MDC/MDIO 10G_PHY_SEL 10G_PHY_RST 10G_LED_I2C 10G_SFP_I2C 10G_SDP)
      Expansion 1 x PCIe x16 Gen 3 (bifurcatable to 2 x8, 1 x8 & 2 x4, or 4 x4)
      1 x PCIe x8 Gen 3 (bifurcatable to 1 x8 & 2 x4)
      8 x PCIe x1 (Gen2) signal to base board
      Bifurcatable to 1 x8 or 2 x4 or 4 x1+1x4 or 8 x1
      GPIO 8-bit GPIO, to base board
      I/O Interface 2 x RS-232 (2-wire) to base board
      4 x USB 2.0 to base board
      4 x USB 3.0 to base board
      2 x SATA 6Gb/s signal to base board
      I²C Yes, to base board
      I/O Interface
      I/O Interface 2 x RS-232((2-wire) to base board)
      2 x SATA 6Gb/s(signal to base board)
      4 x USB 3.0(to base board)
      USB2.0
      Power
      Power consumption 12V@2.15 A (Intel Xeon D-1518 with two 8 GB SO-DIMM DDR4 2133 MHz memory)
      Power Supply 12V: 12VSB±5%
      System
      CPU Intel® Xeon® Processor D-1548 (12MB Cache, 2.00 GHz)
      Intel® Xeon® Processor D-1518 (6MB Cache, 2.20 GHz)
      Intel® Xeon® Processor D-1508 (3MB Cache, 2.20 GHz)
      Memory Max. Two 240-pin 2133/1867 MHz dual-channel DDR4 SDRAM unbuffered DIMM supported
      (system max. 32GB)
      Support ECC
      Watchdog Timer
      Watchdog Timer Software programmable, support 1~255 sec. system reset.
      Weight
      Weight GW: 600g / NW: 300g
    • Ordering Info.

      Item No. Description
      ICE-BDE-T7-1508-R10 COM Express Basic size Type 7 Module support, Intel® Broadwell-DE Dual-core Pentium® Processor D1508(25W), Two ECC DDR4 SO-DIMM , GbE, 10G KR, NCSI, SATAIII, USB 3.0, PCIe Gen3, RoHS
      ICE-BDE-T7-1518-R10 COM Express Basic size Type 7 Module support, Intel® Broadwell-DE Quad-Core Processor D-1518(35W), Two ECC DDR4 SO-DIMM , GbE, 10G KR, NCSI, SATAIII, USB 3.0, PCIe Gen3, RoHS
      ICE-BDE-T7-1548-R10 COM Express Basic size Type 7 Module support, Intel® Broadwell-DE Eight-Core Processor D-1548(45W), Two ECC DDR4 SO-DIMM , GbE, 10G KR, NCSI, SATAIII, USB 3.0, PCIe Gen3, RoHS
    • Package Contents

      • 1 x ICE-BDE-T7 single board computer

      • 1 x Heatsink

      • 1 x QIG
