BIS-W19C-ULT4

18.5” Medical Panel PC with 7th Generation Intel® mobile ULT Core™ i5/Celeron® processor

End of Life

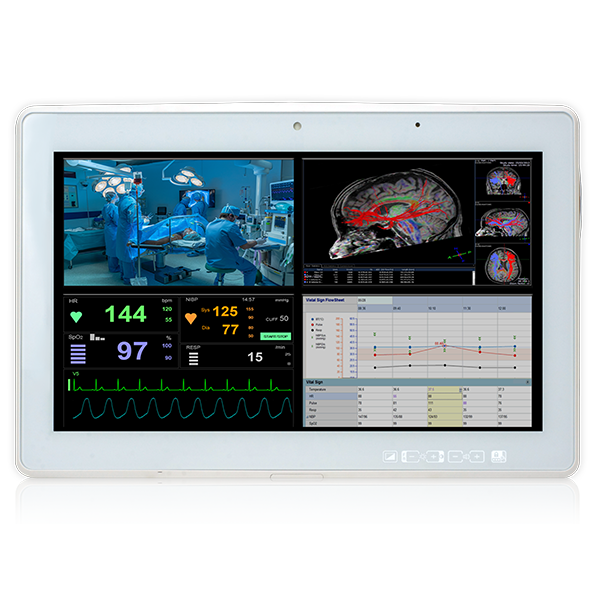

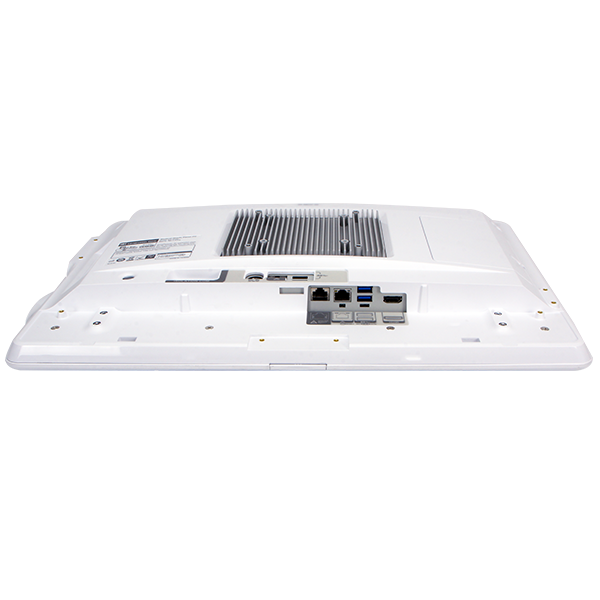

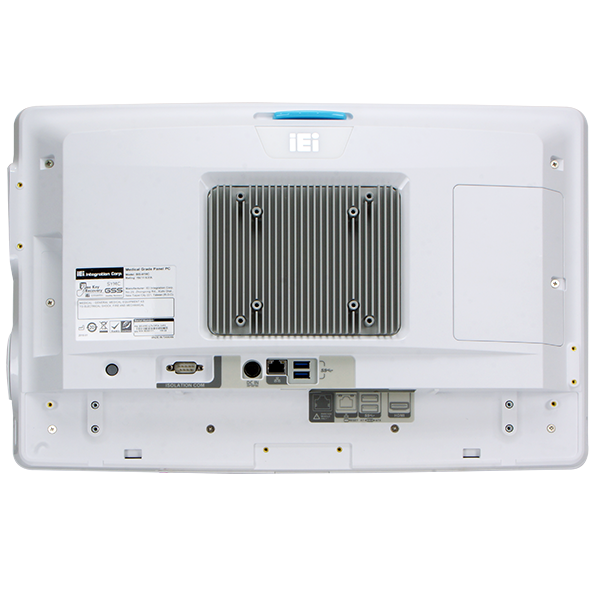

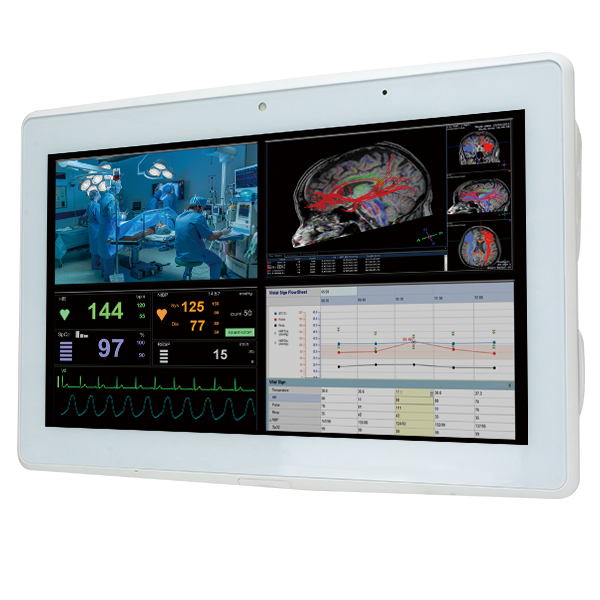

BIS-W19C-ULT4 panel PC
BIS-W19C-ULT4 panel PC
BIS-W19C-ULT4 panel PC

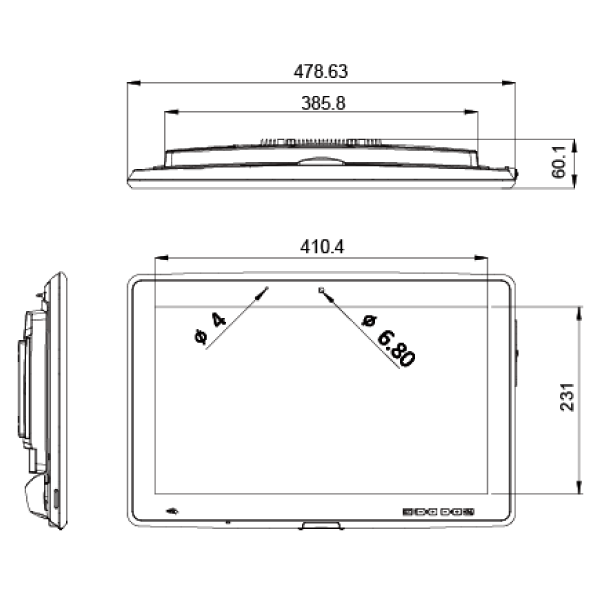

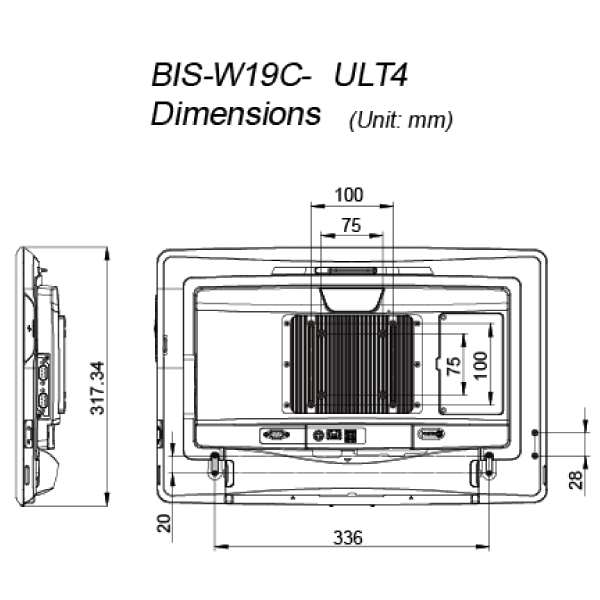

BIS-W19C-ULT4-dimension
BIS-W19C-ULT4-dimension
  • BIS-W19C-ULT4 panel PC
  • BIS-W19C-ULT4 panel PC
  • BIS-W19C-ULT4 panel PC
  • BIS-W19C-ULT4-dimension
  • BIS-W19C-ULT4-dimension

End of Life Notice

* Effective Date: 2020/08/07

» 18.5” 16:9 LED panel (1366 x 768 / 1920 x 1080)
» 7th generation Intel® Core™ i5-7300U and Celeron® 3865U CPU
» Projected capacitive touchscreen supports multi-touch
» IP65 compliant front bezel
» Anti-bacteria cover
» HDMI™ input supported (monitor mode)
» Optional 3-in-1 card reader: MSR, SCR and fingerprint
» Optional Mifare RFID module
» Optional VoIP phone handset
» Optional handle module with barcode scanner and reading light

Hardware Spec.

Communication
Bluetooth Bluetooth V4.1
Wi-Fi IEEE 802.11 a/b/g/n/ac 2T2R module
Display
Backlight MTBF(hrs) 30000 (LED backlight) / 50000 (LED backlight)
Brightness(cd/m2) 250/350
Contrast Ratio 1000:1
LCD Size 18.5” (16:9)
Max Resolution 1366 (W) x 768 (H) / 1920 (W) x 1080 (H)
Environment
Humidity 10% to 95% (non-condensing)
IP Level IP65 compliant front panel
Operating Shock Operating Shock: 5G peak acceleration (11ms duration)
Non-Operating Shock: 15G peak acceleration (11ms duration)
Operating Temperature 0°C~40°C
Operating Vibration 1G
Storage Temperature -20°C~60°C
I/O Interface
Audio 2 x 2W speaker
Side:1 x Audio out, 1 x Mic in
Ethernet Rear:1 x GbE LAN port
Bottom:1 x GbE LAN port
Other Features
Ambient Light Sensor Ambient light sensor for panel brightness adjustment
Camera 2-megapixel CMOS front-facing camera with auto-focus and digital microphone
LED Light Bar RFID indicator LED
OSD Function 1 x LCD on/off
1 x Brightness up
1 x Brightness down
1 x Volume up
1 x Volume down
1 x Touch lock button for cleaning
Combinations:
1 x Auto-dimming on/off
Physical Characteristics
Construction ABS+PC plastic with anti-bacterial material
Dimensions (LxWxH) (mm) 478.6 x 317.3 x 60.1 mm
Mounting Wall, Stand and Arm VESA 100/75
Net Weight 6.5 kg
Power
Input 1 x 12~28V DC Jack
Power adapter 120W medical power adapter: Input: 100V~240V AC, Output: 19V DC
System
Cooling method / System Fan Fan-less
CPU Intel® Kabylake ULT platform Core™ i5-7300U and Celeron® 3865U
HDD 1 x 2.5” SATA 6Gb/s HDD bay
Memory Max. 32G
On-board Memory Two 260-pin 2133/1866 MHz dual-channel 4G DDR4 non-ECC unbuffered SO-DIMMs
Touch
Touch Screen Projected capacitive type with USB interface
I/O Interface
I/O Interface 1 x DC Input Jack
2 x HDMI™(1 x HDMI™ Input (side); 1 x HDMI™ Out (Bottom))
2 x LAN(1 x rear,1 x bottom)
1 x Line out
2 x Mic(1 x digital microphone(front); 1 x side)
1 x RS-232(rear 1.5kV isolation)
2 x USB 2.0(2 x side)
4 x USB 3.0(2 x rear,2 x bottom)

Ordering Information

BIS-W19CF-ULT4-i5/PC/4G-R10 18.5” 350 cd/m² 1920x1080 Panel PC with Intel® 14nm 7th Generation Mobile Core™i5-7300U on-board processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac Wi-Fi module, PCAP touchscreen, 2M camera, microphone, R10
BIS-W19CF-ULT4-C/PC/4G-R10 18.5” 350 cd/m² 1920x1080 Panel PC with Intel® 14nm 7th Generation Mobile Celeron®3865U on-board processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac Wi-Fi module, PCAP touchscreen, 2M camera, microphone, R10
BIS-W19C-ULT4-i5/PC/4G-R10 18.5” 250 cd/m² 1366x768 Panel PC with Intel® 14nm 7th Generation Mobile Core™ i5-7300U on-board processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac Wi-Fi module, PCAP touchscreen, 2M camera, microphone, R10
BIS-W19C-ULT4-C/PC/4G-R10 18.5” 250 cd/m² 1366x768 Panel PC with Intel® 14nm 7th Generation Mobile Celeron®3865U on-board processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac Wi-Fi module, PCAP touchscreen, 2M camera, microphone, R10

Package Contents

Package Content
  • 1 x power adapter

  • 1 x power cord
