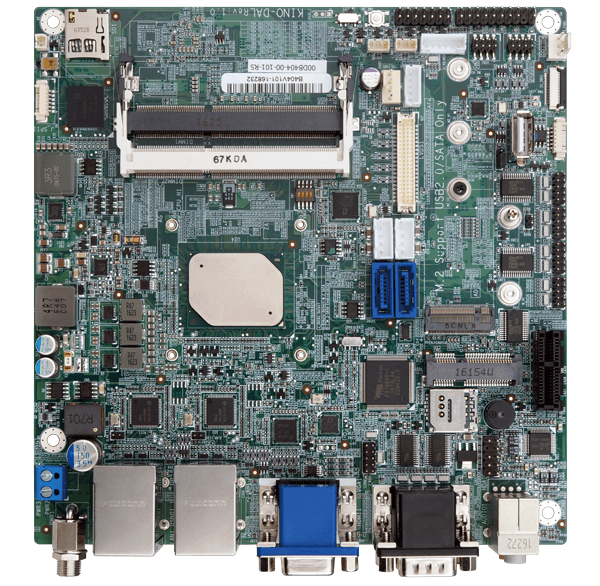

KINO-DAL

Mini-ITX SBC supports Intel® 14nm Atom™, Pentium® or Celeron® on-board SoC with HDMI/LVDS/VGA, Dual PCIe GbE, USB 3.0, PCIe Mini, M.2, SATA 6Gb/s, COM, Audio and RoHS

  • Overview
    ● Mini-ITX SBC supports Intel® 14nm Atom™, Pentium® or Celeron® on-board SoC supports dual-channel DDR3L SO-DIMMs
    ● Triple independent display support
    ● Optional wide range 9V~30V DC input design
    ● Full size PCIe Mini slot with SIM sockets for 3G/LTE expansion
    ● COM, USB 3.0, SATA 6Gb/s, M.2, eMMC 5.0 and audio support

  • Specifications

    • Hardware Spec.

      Spec Item Description

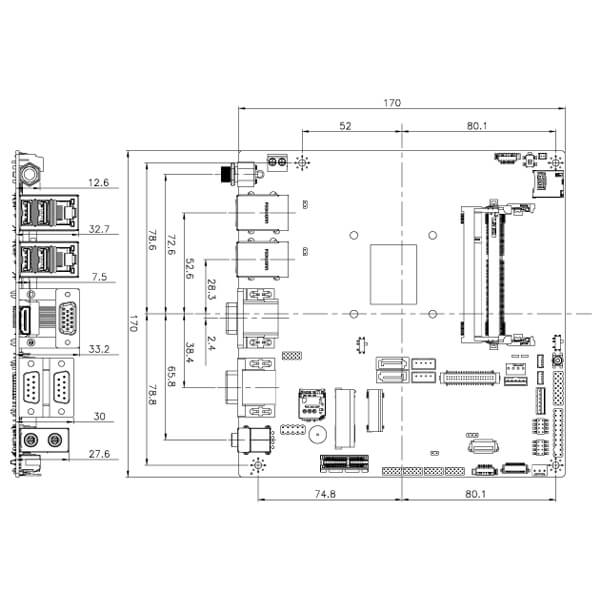

      Dimensions
      Dimensions 170mm x 170mm
      Display
      Display Output Triple independent display
      1 x 18/24-bit dual-channel LVDS (up to 1920x1200@60Hz)
      1 x VGA (up to 1920x1200@60Hz)
      1 x HDMI (up to 3840x2160@30Hz)
      Environment
      Humidity 5% ~ 95%, non-condensing
      Operating Temperature -20ºC ~ 70ºC
      Storage Temperature -30°C ~ 80°C
      Expansion Slots
      Expansion Slots 1 x PCIe x1 slot
      1 x M.2 B Key (SATA & USB 2.0 signal)
      1 x Full-size PCIe Mini card slot
      Form factor
      Form factor Mini-ITX
      I/O Interface
      Audio Realtek ALC662 HD Audio Codec supports 5.1 channel
      2 x Audio jacks (line-out, mic-in) on rear IO
      1 x Front Audio (2x5 pin)
      Digital I/O 8-bit digital I/O (2x5 pin)
      Ethernet LAN1: Intel® I211AT PCIe controller
      LAN2: Intel® I211AT PCIe controller
      I/O Interface
      I/O Interface 1 x Front panel(2x7 pin, power LED, HDD LED, speaker, power button, reset button)
      1 x I²C(1x4 pin)
      4 x Internal RS-232(2x5 pin, P=2.0)
      1 x Internal USB 2.0(180⁰ Type-A)
      4 x Internal USB 2.0(2x4 pin, P=2.0)
      1 x KB/MS(1x6 pin)
      2 x LAN LED(1x2 pin)
      2 x RS-232/422/485
      2 x SATA 6Gb/s
      1 x SMBus(1x4 pin)
      4 x USB 3.0
      Power
      Power consumption 12V@3.64A (Intel® Pentium® N4200 CPU with two 8GB 1600MHz DDR3L memory)
      Power Supply 12V only DC input as Default/ 9V~30V DC input (optional)
      1 x Internal power connector (2x2 pin)
      1 x External DC power Jackc (Ø5.5mm)
      System
      CPU Intel® Atom™ x7-E3950 on-board SoC (up to 2.0GHz, quad-core, 2M Cache, TDP=12W)
      Intel® Atom™ x5-E3940 on-board SoC (up to 1.8GHz, quad-core, 2M Cache, TDP=9W)
      Intel® Atom™ x5-E3930 on-board SoC (up to 1.8GHz, dual-core, 2M Cache, TDP=6W)
      Intel® Pentium® N4200 on-board SoC (up to 2.5GHz, quad-core, 2M Cache, TDP=6W)
      Intel® Celeron® N3350 on-board SoC (up to 2.4GHz, dual-core, 2M Cache, TDP=6W)
      Memory Max. Two 204-pin 1866/1600MHz Dual-channel DDR3L SO-DIMMs support up to 8GB
      Weight
      Weight GW:1100g, NW: 700g

    • Ordering Info.

      Item No. Description
      KINO-DAL-J2-R10 Mini-ITX SBC supports Intel® 14nm quad-core Celeron® J3455 2.3GHz on-board SoC with HDMI/LVDS/VGA, Dual PCIe GbE, USB 3.0, PCIe Mini, M.2, SATA 6Gb/s, COM, Audio and RoHS
      KINO-DAL-N1-R10 Mini-ITX SBC supports Intel® 14nm dual-core Celeron® N3350 2.3GHz on-board SoC with HDMI/LVDS/VGA, Dual PCIe GbE, USB 3.0, PCIe Mini, M.2, SATA 6Gb/s, COM, Audio and RoHS

    • Package Contents

      • 1 x KINO-DAL single board computer with heatsink

      • 1 x I/O Shielding

      • 1 x SATA with power cable kit

      • 1 x QIG
