GRAND-BDE

Intel® Xeon® Processor D-1500 Family Processor

  • Overview

    ● Intel® Xeon® D processor optimizes performance and efficiency
    ● 4 x DIMM Slots, Install up to 128 GB memory with 4 x 32GB DIMMs
    ● 5 x PCIe slot can support 40GbE network card
    ● Storage expandable, up to 1PB
  • Features

    GRAND-BDE

    Powered by an advanced 14nm Intel® Xeon® D 64-bit SoC processor, up to 128GB DDR4 ECC RDIMM RAM / 64GB DDR4 non-ECC UDIMM RAM, and the 12Gb/s SAS-enabled GRAND-BDE delivers outstanding performance for data transmission and applications.With a thermal design power of only 20-65W, the GRAND-BDE fulfills demands for both performance and energy saving.

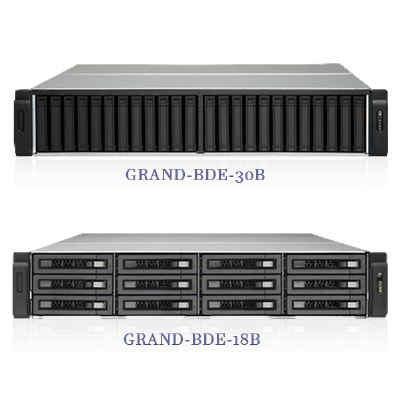

    GRAND-BDE-storage-server
    GRAND-BDE-storage-server-Expansion-Capability

    Expansion Capability

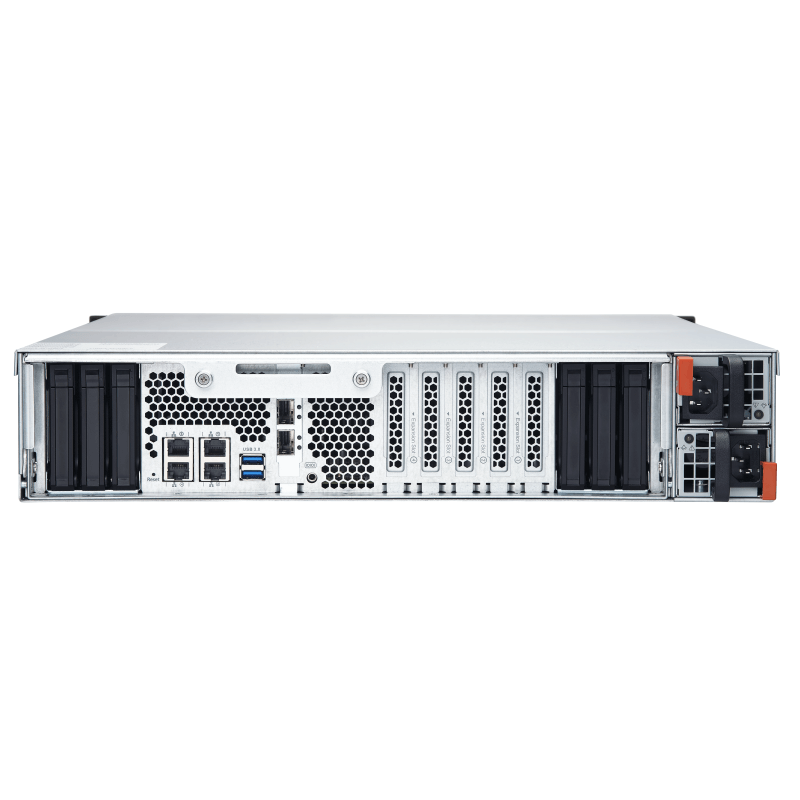

    GRAND-BDE provide Five built-in PCIe 3.0 expansion slots provide great expandability options for 10GbE/40GbE network adapters, USB 3.1 and 12Gb/s SAS expansion cards, PCIe NVMe SSD - or even a graphics card.

    Excellent Hardware

    The GRAND-BDE supports SAS 12Gb/s 2.5” drives, allowing for SAS 12Gb/s and SATA 6Gb/s hard drives and SSDs. Businesses can create the most powerful storage by implementing suitable drives based on their needs.

    Grand-BDE-Excellent-Hardware
    Storage server certified by QNAP

    QNAP Certified

    The Grand series are certified by the QNAP. QNAP Systems, Inc. was founded in 2004 as leading network attached storage provider and excelled at both hardware design & software engineering. QNAP provides a comprehensive range of cutting-edge Network-attached Storage (NAS) based on the principles of usability, high security, and flexible scalability leading to win the numerous international prizes. QNAP offers quality NAS products for home and business users with the amount of around 4 million worldwide.

  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form Factor
      Form Factor 2U, Rackmount
      System
      CPU Intel® Xeon® Processor D-1521, 4 core 2.4 GHz
      Intel® Xeon® Processor D-1531, 6 core 2.2 GHz
      Intel® Xeon® Processor D-1548, 8 core 2.0 GHz (for GRAND-BDE-30B only)
      Memory Total DIMM slots: 4
      Memory Max. DDR4 128GB (32GB RDIMM x 4)
      Cooling method / System Fan 4 x 6 cm High efficiency fan
      Physical Characteristics
      Rack Height 2U
      Dimensions (LxWxH) (mm) GRAND-BDE-30B : 88.3 x 439 x 484.5 mm
      GRAND-BDE-18B : 88 x 442.5 x 530.5 mm
      Net Weight GRAND-BDE-30B : 13.98 kg / 30.82 lb
      GRAND-BDE-18B : 15.1 kg / 32.28 lb
      Storage
      Storage Description:(SSD drive bay -

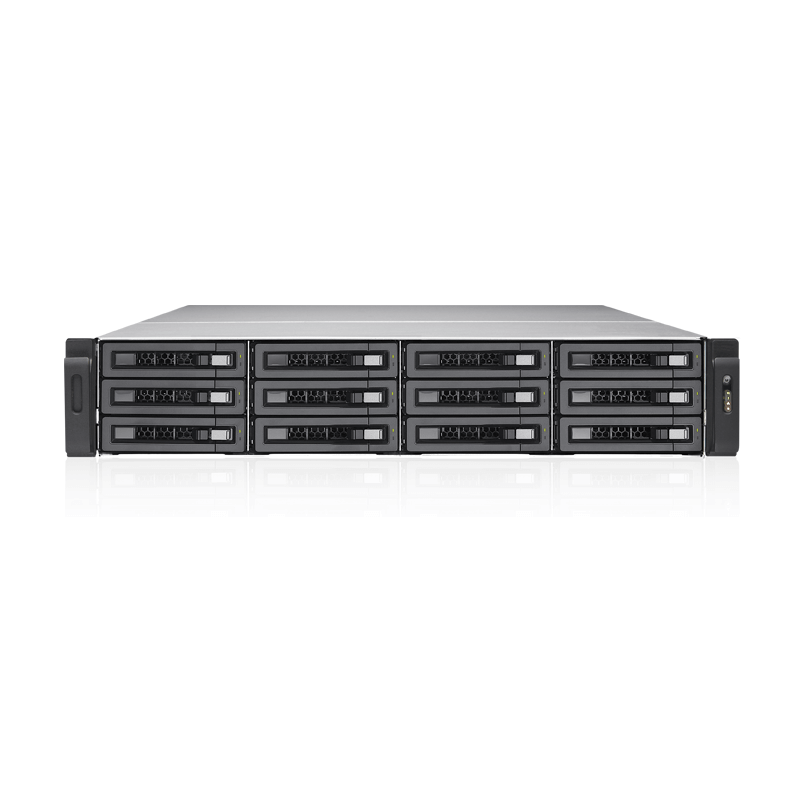

      GRAND-BDE-18B: 12 x 2.5" / 3.5"[Front] ; 6 x 2.5"[Rear]

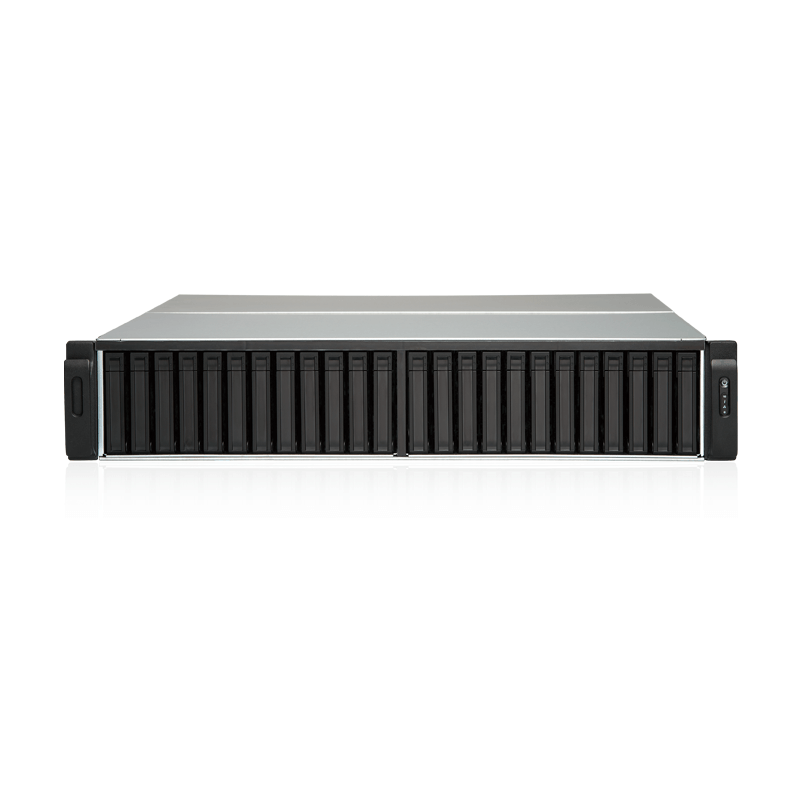

      GRAND-BDE-30B: 24 x 2.5"[Front] ; 6 x 2.5"[Rear])
      I/O Interface
      Ethernet 4 x LAN(Gigabit)
      I/O Interface 2 x External USB 3.0
      Expansion Description:(Support specific 10GbE PCIe network card (P/N: LAN-10G2F-PHY-CS4227))
      2 x PCIe x 4
      2 x PCIe x 8
      Power
      Power Consumption GRAND-BDE-30B : In Operation: 255.04W
      GRAND-BDE-18B : In Operation: 229.53W
      Power Supply Redundant power: input 90 to 264VAC: 450W x 2
      Environment
      Operating Temperature 0~40˚C
      Humidity 5 to 95% non-condensing, wet bulb:27˚C.
    • Ordering Info.

      Item No. Description
      GRAND-BDE-18B-D1521-R10 2U 12Bay front 3.5", 6bay rear 2.5" HDD or SSD support, rackmount storage server system (Barebone) with Intel® Xeon® D-1521, 450W redundant PSU, RoHS
      GRAND-BDE-18B-D1531-R10 2U 12Bay front 3.5", 6bay rear 2.5" HDD or SSD support, rackmount storage server system (Barebone) with Intel® Xeon® D-1531, 450W redundant PSU, RoHS
      GRAND-BDE-30B-D1521-R10 2U 24Bay front 2.5", 6bay rear 2.5" HDD or SSD support, rackmount storage server system (Barebone) with Intel® Xeon® D-1521, 450W redundant PSU, RoHS
      GRAND-BDE-30B-D1531-R10 2U 24Bay front 2.5", 6bay rear 2.5" HDD or SSD support, rackmount storage server system (Barebone) with Intel® Xeon® D-1531, 450W redundant PSU, RoHS
      GRAND-BDE-30B-D1548-R10 2U 24Bay front 2.5", 6bay rear 2.5" HDD or SSD support, rackmount storage server system (Barebone) with Intel® Xeon® D-1548, 450W redundant PSU, RoHS
    • Package Contents

      • Ethernet cable x 4

      • Power cord x 2

      • Flat head screws (For 2.5” HDD)

      • Flat head screws (For 3.5” HDD) for GRAND-BDE-18B-R10 only
