Overview● Double Server, with Intel® Xeon® E5-2600 v3● 16 x DIMM Slots, Install up to 1TB memory with 16 x 64GB DIMMs● 4 x PCIe slot can support 40GbE network card● Storage expandable, up to 1PB● IPMI Remote Management
Hyper converged High-performance Computing, Virtualization, Storage, and Application server in one chassis for streamlined efficiency and manageability.
Hyperconverged Storage Server
» High-performance application server based on dual Intel® E5 CPU
» VMware®, Citrix®, or Windows Hyper-V: for virtualization deployment
» Storage server: This component is used to mount storage using iSCSI/ NFS for the application server
» High-speed connection: 10GbE or 40GbE
Server-grade Hardware Design Robust, Reliable & Innovative
Suited for enterprise environments which demand the highest performance, simplified IT management, uninterrupted service, and optimized virtualization environments, the GRAND-C610 is designed with high-standard hardware specifications to meet those needs.
The Grand series are certified by the QNAP. QNAP Systems, Inc. was founded in 2004 as leading network attached storage provider and excelled at both hardware design & software engineering. QNAP provides a comprehensive range of cutting-edge Network-attached Storage (NAS) based on the principles of usability, high security, and flexible scalability leading to win the numerous international prizes. QNAP offers quality NAS products for home and business users with the amount of around 4 million worldwide.
Spec Item Description Form Factor Form Factor 3U, Rackmount System CPU FCLGA2011-3 sockets-support Xeon® E5-2600 v3 family Chipset Intel® C610 Memory RDIMM / LRDIMM
Total slots: 16

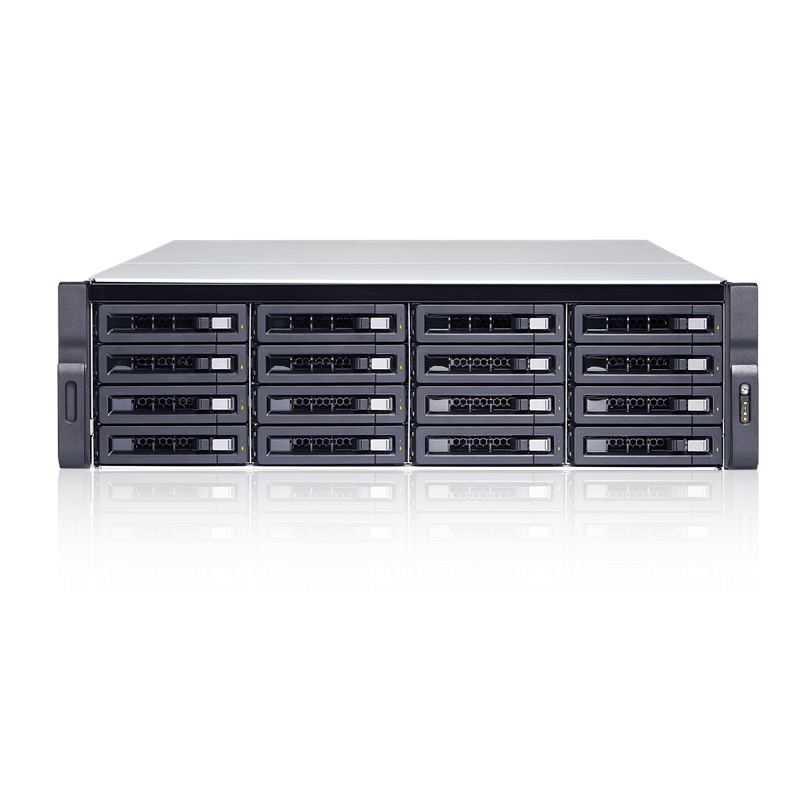

Memory Max. 1 TB (64 GB x 16) Cooling method / System Fan Smart Fan 4 (6cm 12V DC) Physical Characteristics Rack Height 3U Dimensions (LxWxH) (mm) 130.8 (H) x 444 (W) x 744 (D) mm Net Weight 22.42 kg / 49.43 lb Storage Storage 4 x 2.5” SSD/HDD Bay(SAS (12Gbps) SSD or SAS/SATA (6Gbps/3Gbps) SSD) 16 x 3.5” HDD Bay(3.5” SAS (12Gbps/6Gbps) / SATA (6Gbps/3Gbps) HDDs or 2.5” SAS/SATA SSD) Description:(Max. Raw Capacity: 128TB
Interface: SAS 12Gb/s backward-compatible to SAS/SATA 6Gb/s)

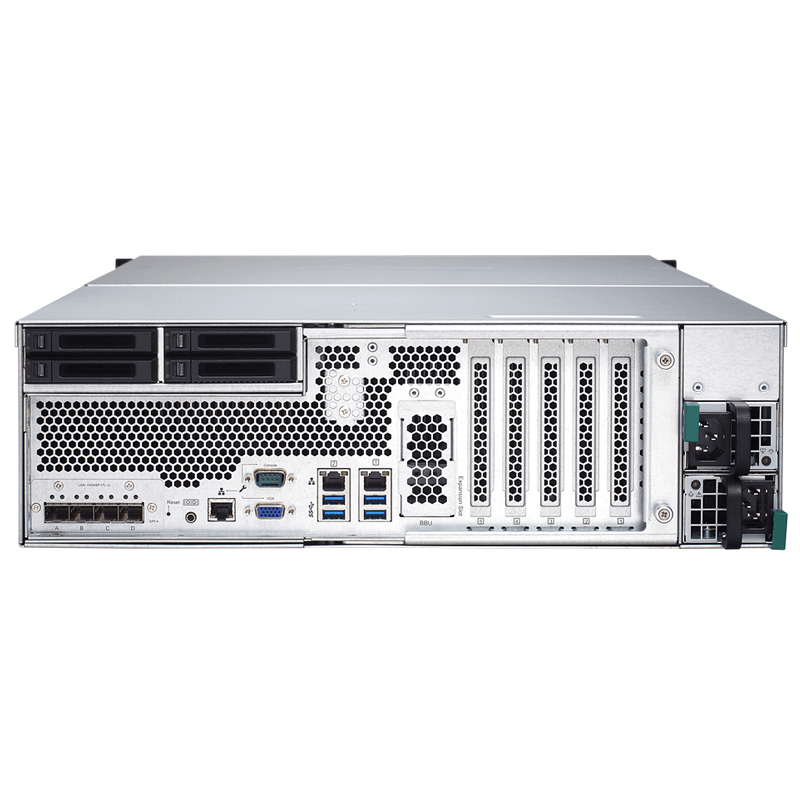

2 x M.2(NGFF) I/O Interface Display Output 1 x VGA Ethernet 2 x LAN(GbE) I/O Interface 4 x External USB 3.0 Expansion 2 x M.2(NGFF) 1 x PCIe x 16 3 x PCIe x 8 Other Features IPMI IPMI LAN port, IPMI VGA, IPMI console Power Power Consumption Sleep mode: 254.21 W
In Operation: 362.86 W
Power Supply 650W (Redundant)
Item No. Description GRAND-C610-20C-R10 3U 16Bay front 3.5", 4bay rear 2.5" HDD or SSD support, rackmount storage server (Barebone), with 650W redundant PSU, RoHS
Ethernet cable x 2
Power cord x 2
Flat head screw (for 3.5” HDD)
Flat head screw (For 2.5” HDD)
